When it comes to wiring your RV for shore power, it’s important to understand the correct way to wire a 50 amp RV plug. This type of plug is commonly used for larger RVs that require more power to run all of their appliances and electronics. By following the proper wiring diagram, you can ensure that your RV is safely connected to the power source and avoid any potential electrical hazards.
Before you begin wiring your 50 amp RV plug, it’s essential to gather all the necessary materials and tools, including the plug, wire strippers, electrical tape, and a screwdriver. Make sure to also turn off the power source before starting any work to prevent any accidents or injuries.

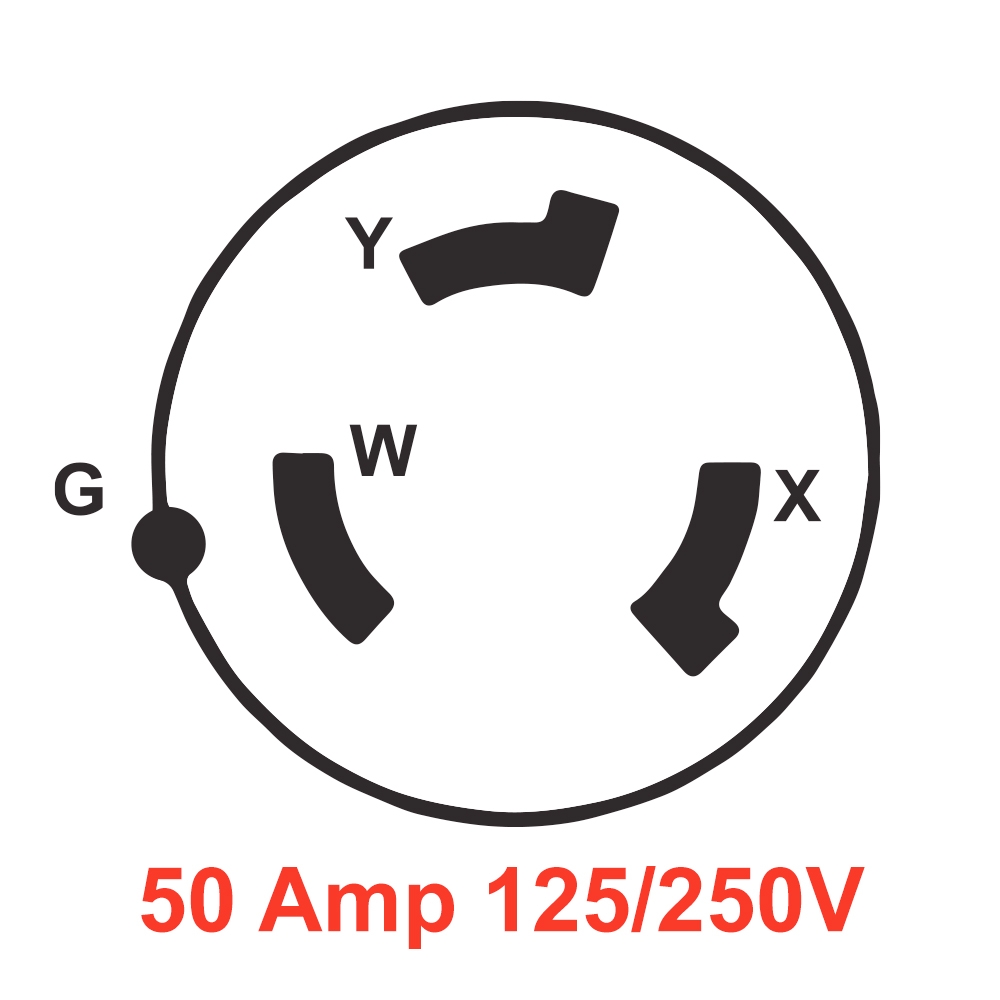

Wiring 50 Amp Plug For Rv Online USA Deborahsilvermusic (deborahsilvermusic.com)

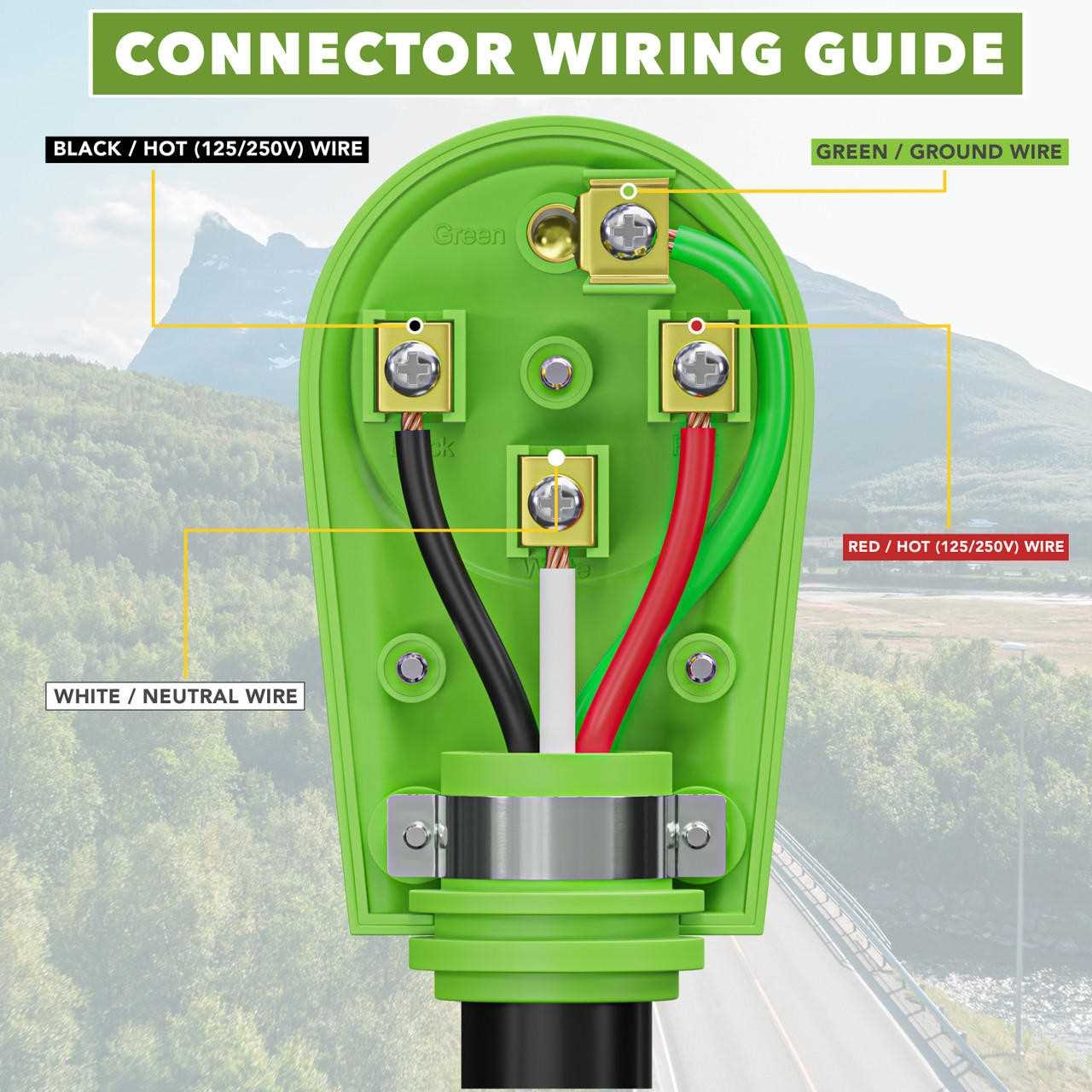

Start by connecting the green wire to the grounding terminal of the plug, the white wire to the neutral terminal, and the black and red wires to the hot terminals. Ensure that all connections are secure and tight to prevent any loose wires that could cause a short circuit.
After connecting the wires to the plug, carefully insert the plug into the receptacle and tighten the screws to secure it in place. Double-check all connections to ensure they are correct and secure before turning on the power source to test the connection.
It’s important to regularly inspect and maintain the wiring of your 50 amp RV plug to ensure it remains in good working condition. Look for any signs of wear or damage and replace any faulty components immediately to prevent any electrical issues while using your RV.
By following the correct wiring diagram and taking proper precautions, you can safely and effectively wire a 50 amp RV plug for your RV. Always prioritize safety and double-check all connections to ensure a reliable and secure power source for your RV’s electrical needs.
