When it comes to setting up a network in your home or office, Cat5 wiring is essential for connecting various devices. Cat5, short for Category 5, is a type of network cable used for Ethernet connections. Understanding how to properly wire Cat5 cables is crucial for ensuring a reliable and efficient network.

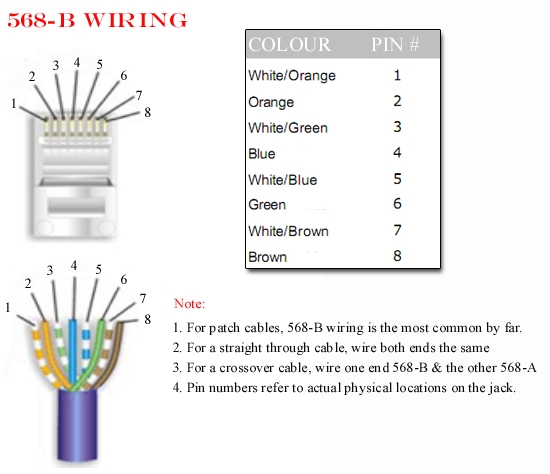

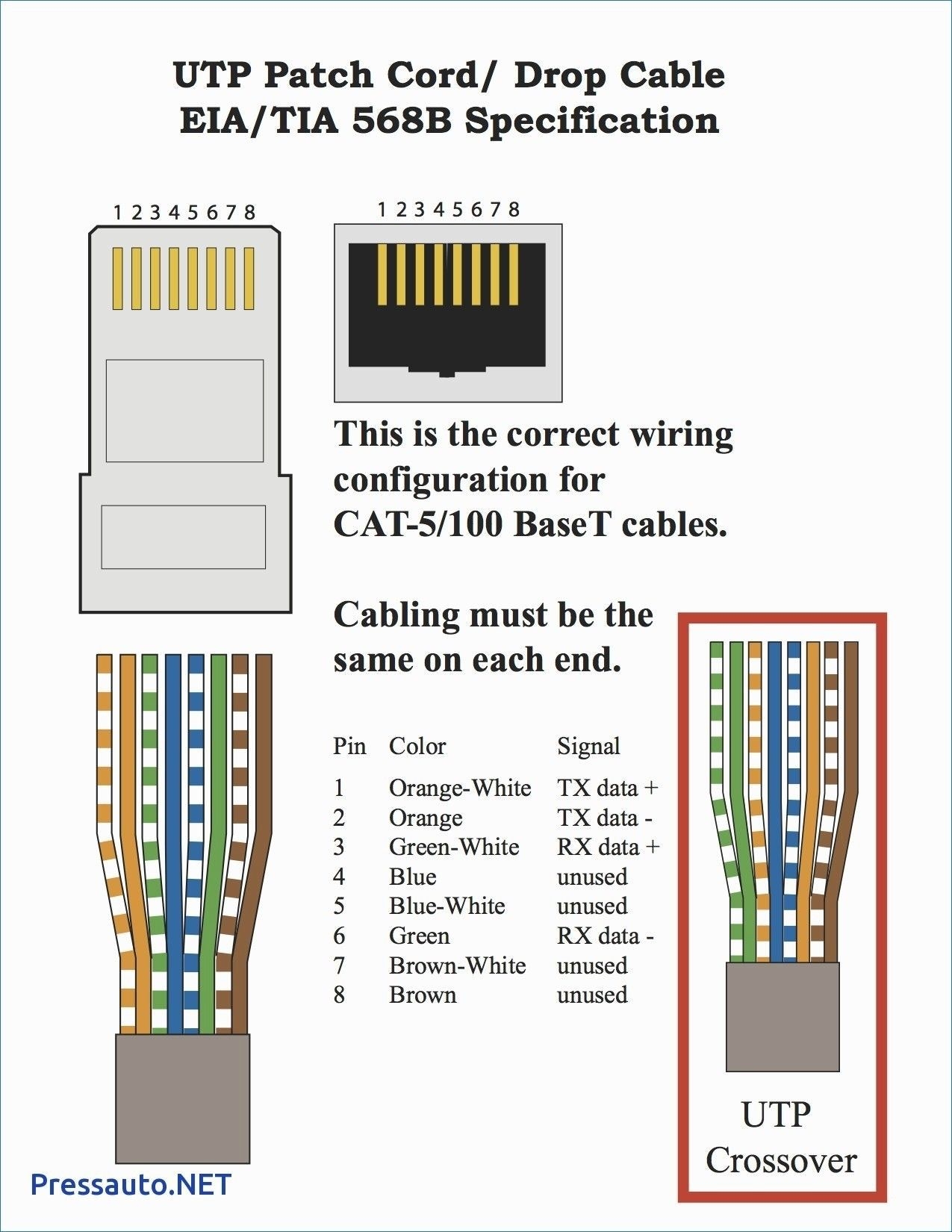

Before you start wiring your Cat5 cables, it’s important to have a clear understanding of the wiring diagram. A Cat5 wiring diagram shows the arrangement of wires within the cable and how they should be connected to the pins on the RJ45 connector. This diagram serves as a guide for properly configuring your network cables.
Cat 5 Wiring Pattern Wiring Diagram Name Cat 5 Cable Wiring Diagram (2020cadillac.com)
Typically, a Cat5 cable consists of four twisted pairs of wires, each with a specific color code. The standard color code for Cat5 wiring is as follows: blue and white, orange and white, green and white, and brown and white. Following the correct color code is crucial for ensuring that your cables are connected properly.

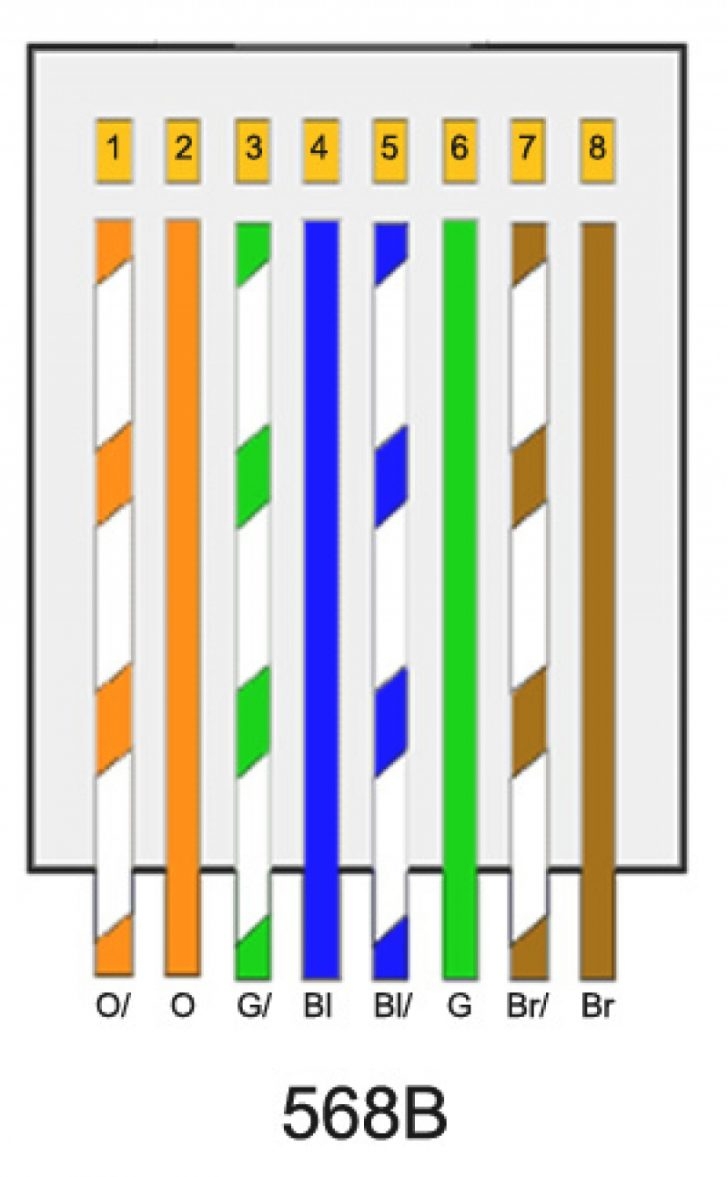

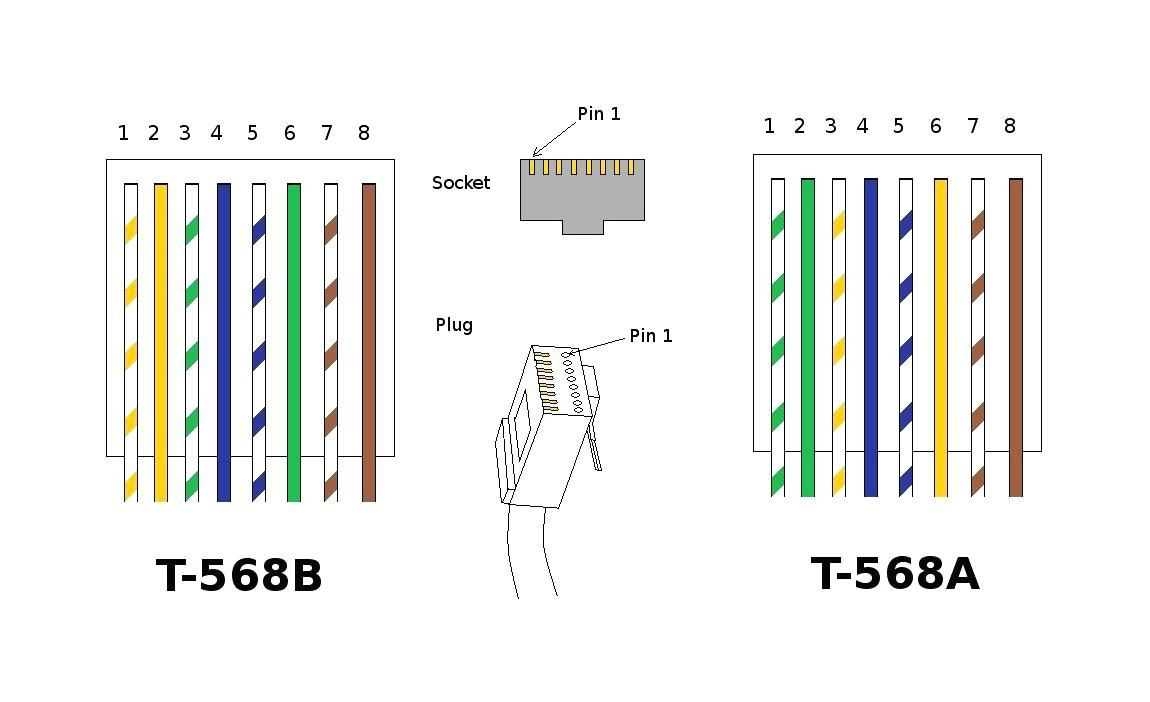

When wiring Cat5 cables, it’s important to follow the T568A or T568B wiring standard. These standards dictate the order in which the wires should be arranged within the cable and connected to the RJ45 connector. By adhering to these standards, you can ensure that your network cables are compatible with Ethernet devices.
Once you have a clear understanding of the wiring diagram and color code, you can start wiring your Cat5 cables. Begin by stripping the outer jacket of the cable to expose the twisted pairs of wires. Then, carefully arrange the wires according to the wiring diagram and insert them into the appropriate pins on the RJ45 connector. Finally, crimp the connector to secure the wires in place.
In conclusion, understanding how to properly wire Cat5 cables is essential for setting up a reliable network. By following the wiring diagram, color code, and standards, you can ensure that your Cat5 cables are configured correctly. With the right knowledge and tools, you can create a seamless network that connects all your devices efficiently.
