When it comes to towing a trailer, having the right wiring setup is essential for safe and efficient operation. One common wiring configuration is the 4-pin trailer plug, which is used for basic trailers without brakes. Understanding how to wire a 4-pin trailer plug can help ensure that your trailer lights and signals work properly while on the road.
Before you start wiring your 4-pin trailer plug, it’s important to have the right tools and materials on hand. You will need a trailer wiring harness, wire cutters/strippers, soldering iron, heat shrink tubing, and a wiring diagram for reference. Once you have everything you need, you can begin the wiring process.

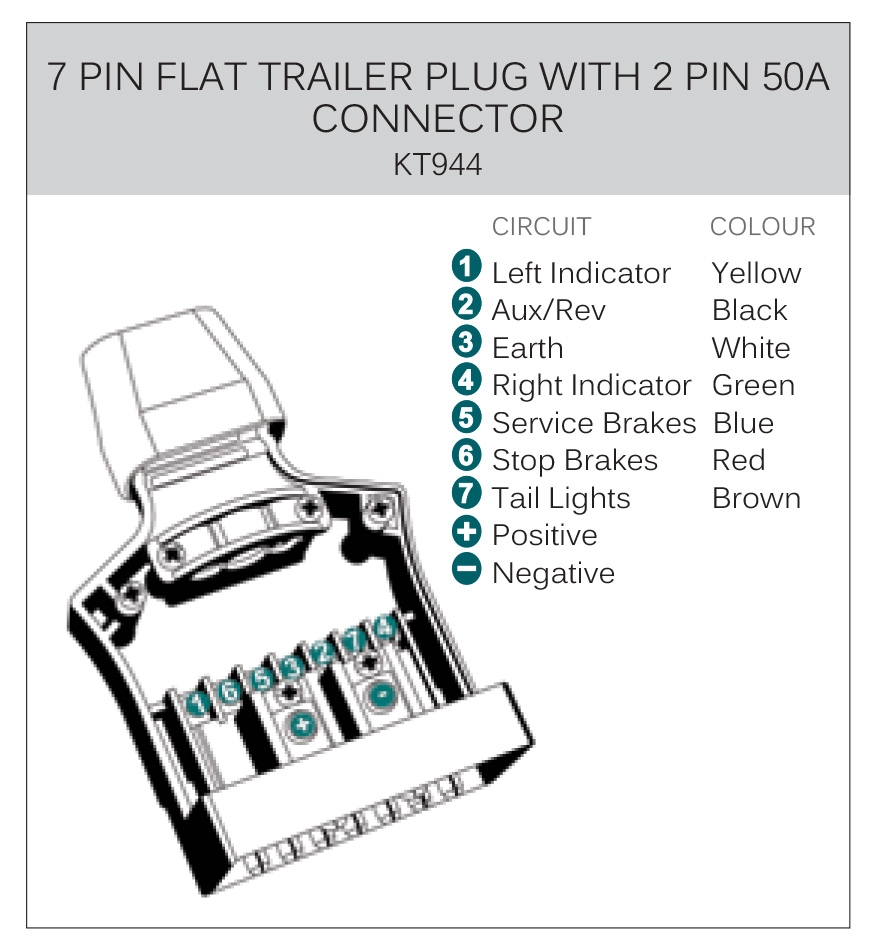

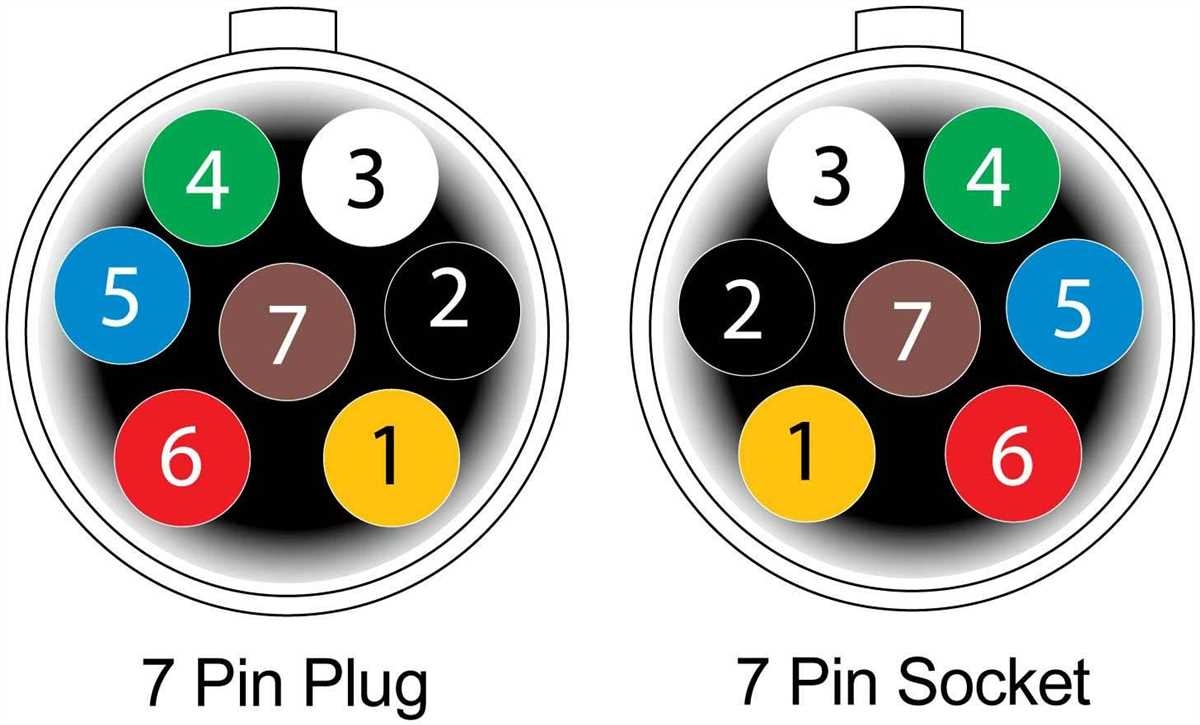

Demystifying The 7 Pin Flat Trailer Plug Wiring Diagram A Step By Step (techschems.com)

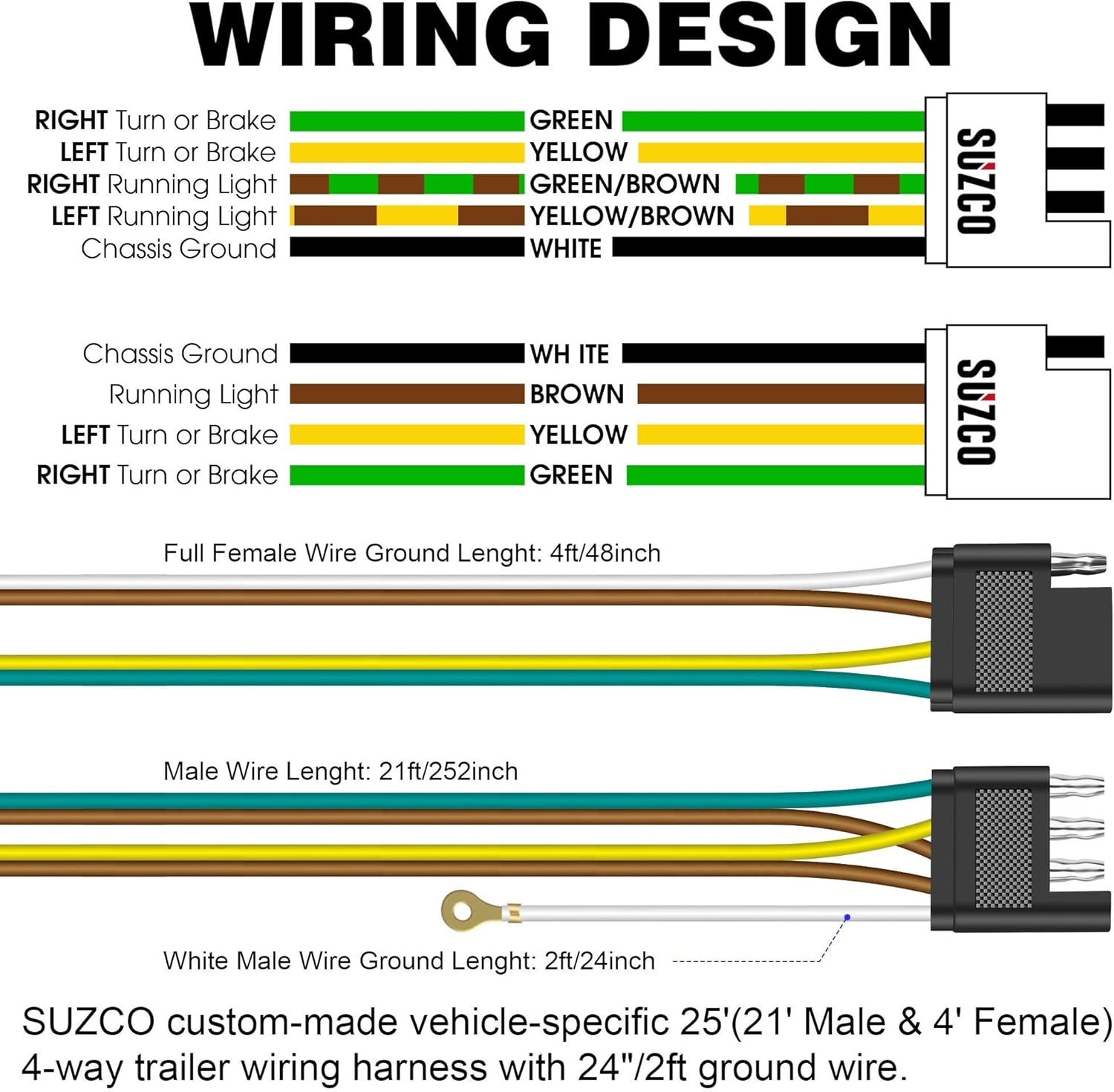

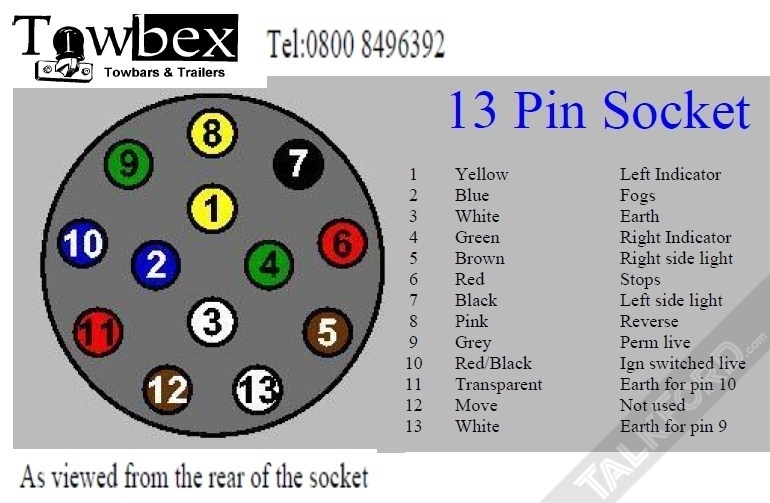

1. To start, identify the wires on your trailer wiring harness. The 4-pin connector will typically have yellow, green, brown, and white wires. The white wire is the ground, the brown wire is the running lights, the green wire is the right turn/brake, and the yellow wire is the left turn/brake.
2. Strip the insulation off the ends of each wire and twist them together with the corresponding wires on the trailer plug. Use a soldering iron to securely connect the wires, and then cover the connection with heat shrink tubing to protect it from the elements.
3. Once all the wires are connected, test the trailer lights and signals to ensure they are working properly. If any lights are not functioning, double-check your connections and make any necessary adjustments.
4. Finally, secure the wiring harness to the trailer frame using zip ties or mounting clips to prevent it from dragging or getting caught on anything while in use. With the wiring properly installed, your trailer should be ready to hit the road safely.
Overall, wiring a 4-pin trailer plug is a straightforward process that can be completed with basic tools and a little bit of know-how. By following a wiring diagram and taking the time to make secure connections, you can ensure that your trailer lights and signals work reliably every time you tow. So, next time you need to wire a trailer plug, remember these steps to get the job done right!
