When it comes to the electrical system of a vehicle, the alternator plays a crucial role in ensuring the proper functioning of the battery and other electrical components. Understanding the wiring diagram for an alternator is essential for troubleshooting and maintenance purposes.
An alternator is a type of generator that produces alternating current to power the electrical system of a vehicle and recharge the battery. The wiring diagram for an alternator typically includes information on the various connections and components involved in the charging system.

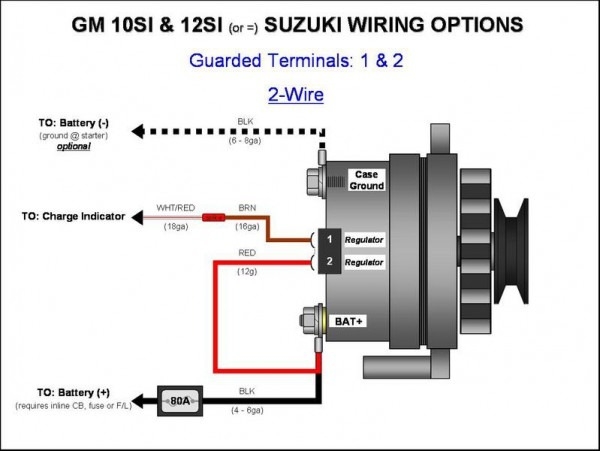

Ac Delco Alternator Wiring Diagram Caroldoey Wiring Diagram Essig (2020cadillac.com)

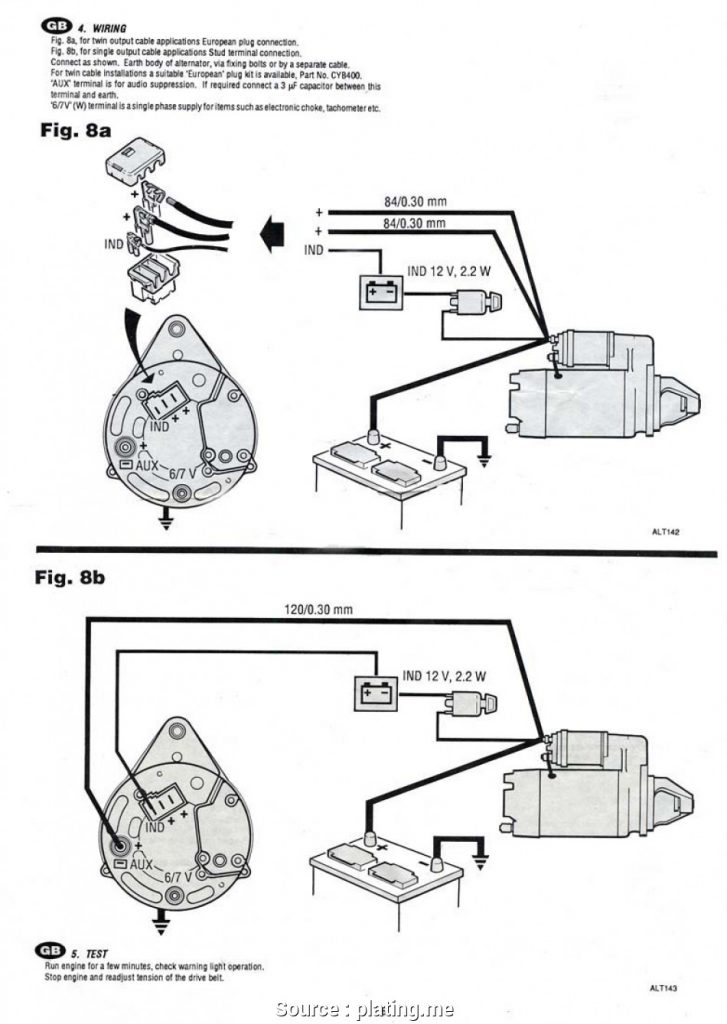

Wiring Diagram For An Alternator

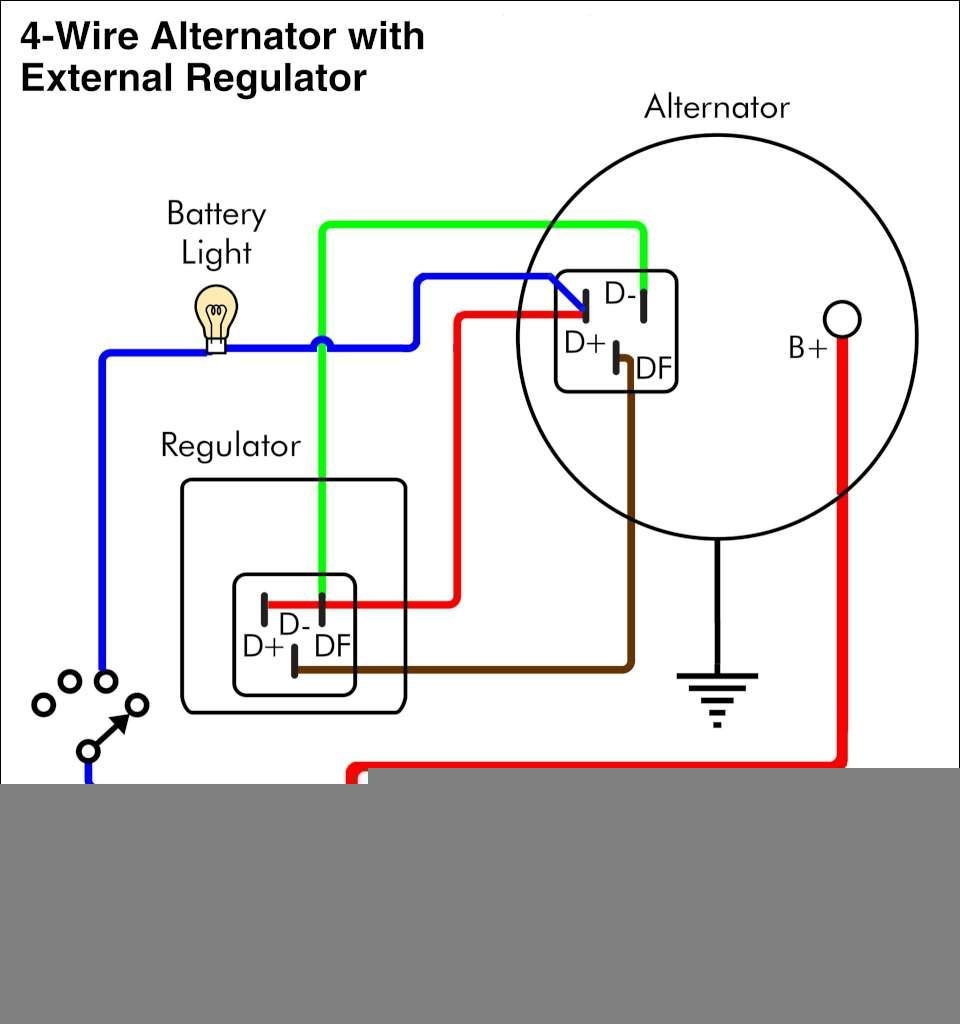

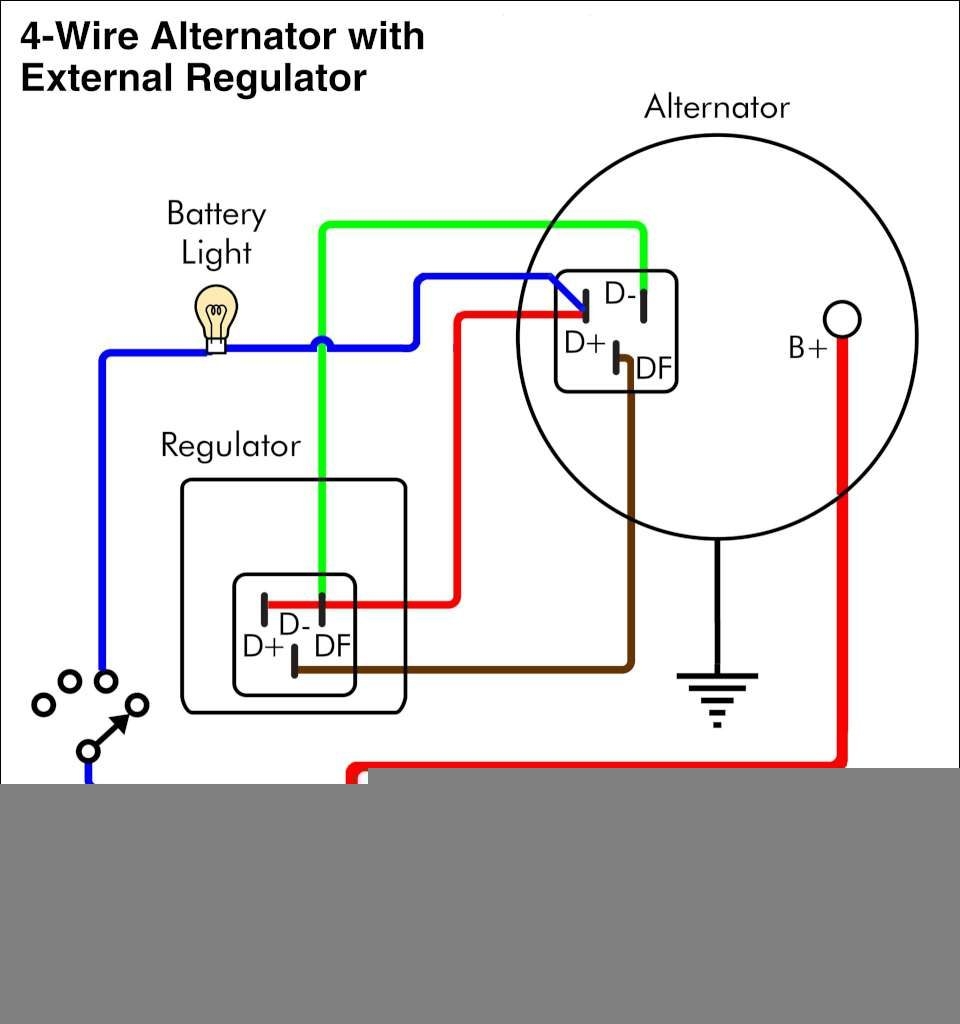

The wiring diagram for an alternator usually consists of several key components, including the alternator itself, the voltage regulator, the battery, and various connections such as the ignition switch, the fusible link, and the charging indicator light. Each of these components plays a crucial role in the proper functioning of the alternator and the electrical system of the vehicle.

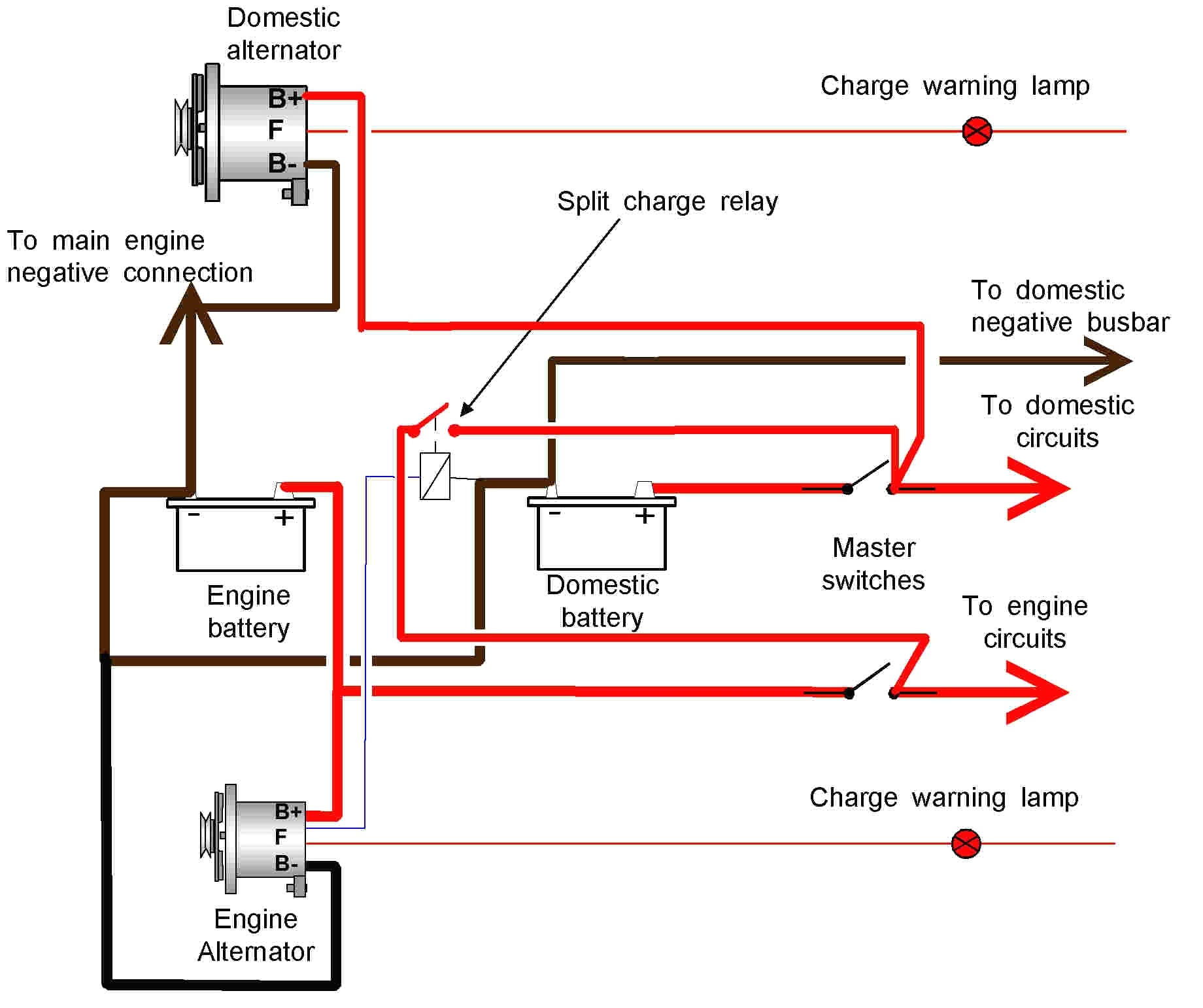

One of the most important connections in the wiring diagram for an alternator is the wire that goes from the alternator to the battery. This wire is responsible for carrying the electrical current generated by the alternator to the battery for recharging. It is essential to ensure that this connection is secure and free from any damage or corrosion to prevent charging issues.
Another key component in the wiring diagram for an alternator is the voltage regulator, which is responsible for regulating the output of the alternator to ensure that the battery is not overcharged. The voltage regulator works in conjunction with the alternator to maintain a steady flow of electrical current to the battery and other electrical components.

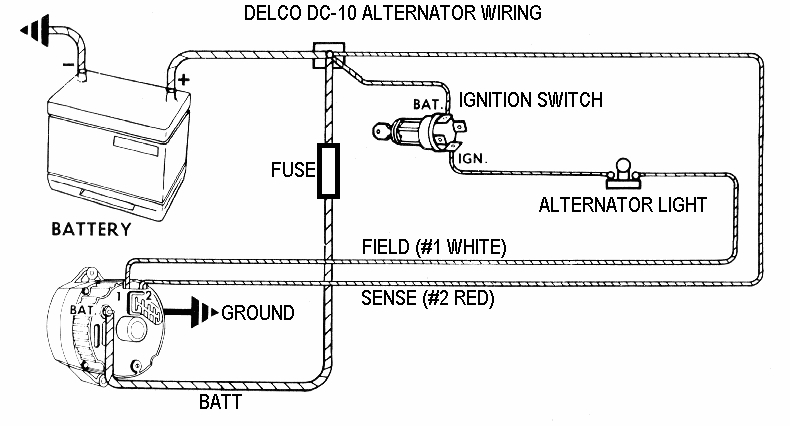

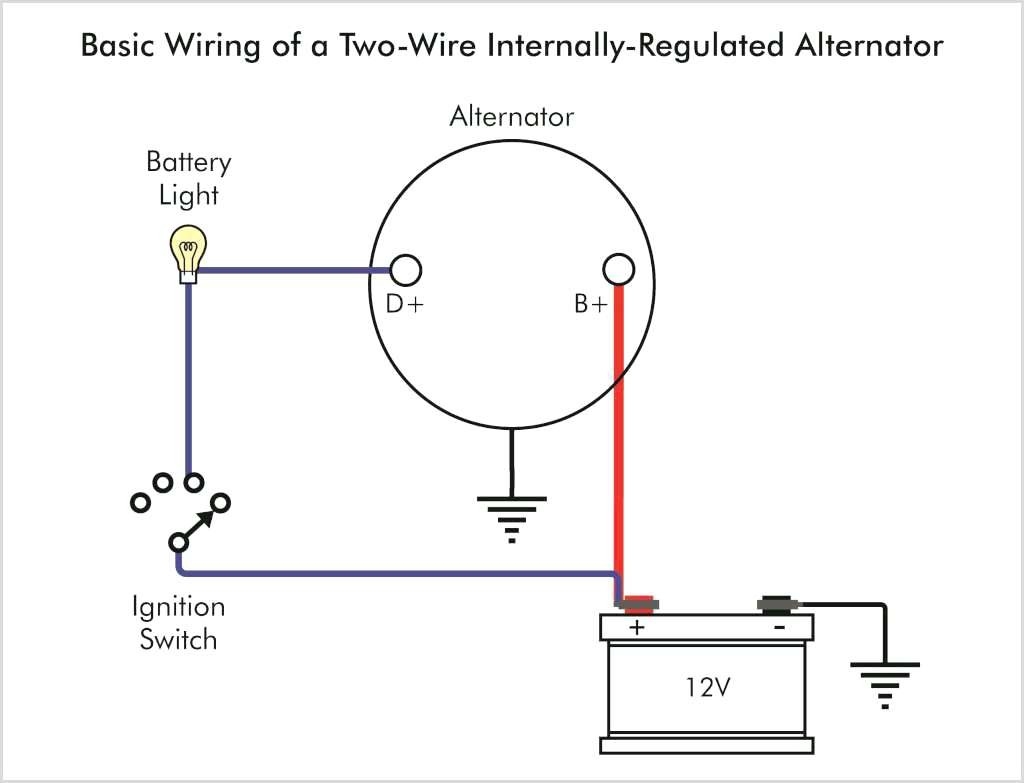

In addition to the alternator and the voltage regulator, the wiring diagram for an alternator also includes connections to the ignition switch, the fusible link, and the charging indicator light. These connections help to control the flow of electricity in the charging system and provide important information to the driver about the status of the alternator and the battery.
In conclusion, understanding the wiring diagram for an alternator is essential for ensuring the proper functioning of the electrical system in a vehicle. By familiarizing yourself with the various components and connections involved in the charging system, you can troubleshoot and maintain your alternator effectively to prevent any electrical issues.
