When it comes to towing a trailer, having the proper wiring is essential to ensure that your trailer lights work correctly and you can safely transport your cargo. One of the most common types of trailer wiring is the 4 plug trailer wiring system. This system is typically used on smaller trailers and is easy to install and use.
With a 4 plug trailer wiring system, you will have four wires that connect to your vehicle’s electrical system. These wires typically include a ground wire, a tail light wire, a left turn signal wire, and a right turn signal wire. By connecting these wires properly, you can ensure that your trailer lights will work in sync with your vehicle’s lights.
4 Way Trailer Wiring Diagram Cadician 39 S Blog (2020cadillac.com)

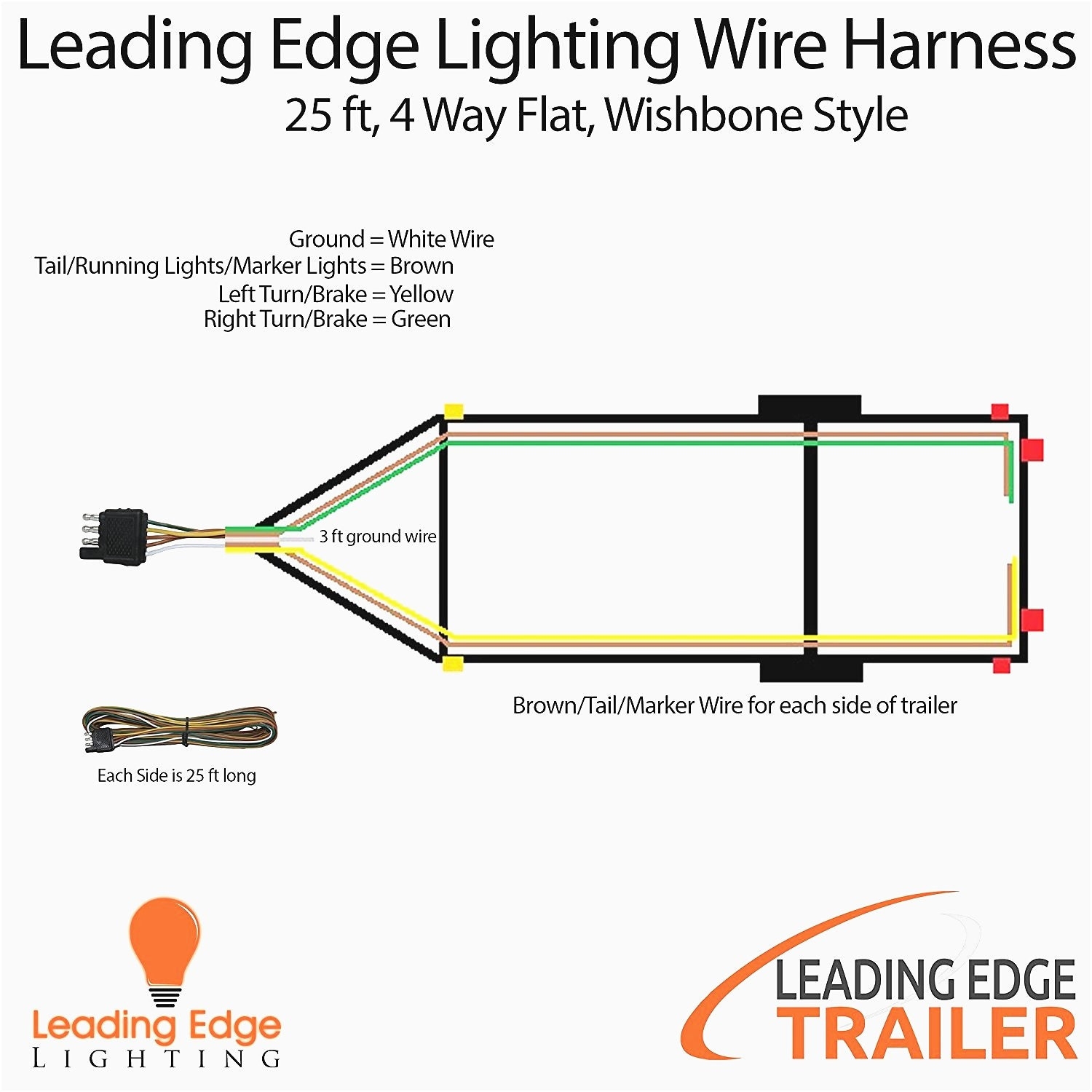

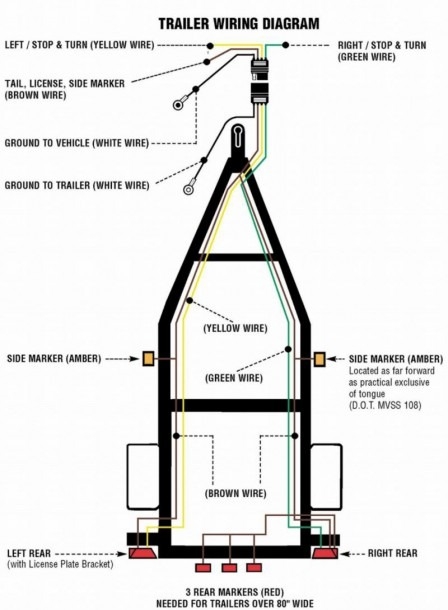

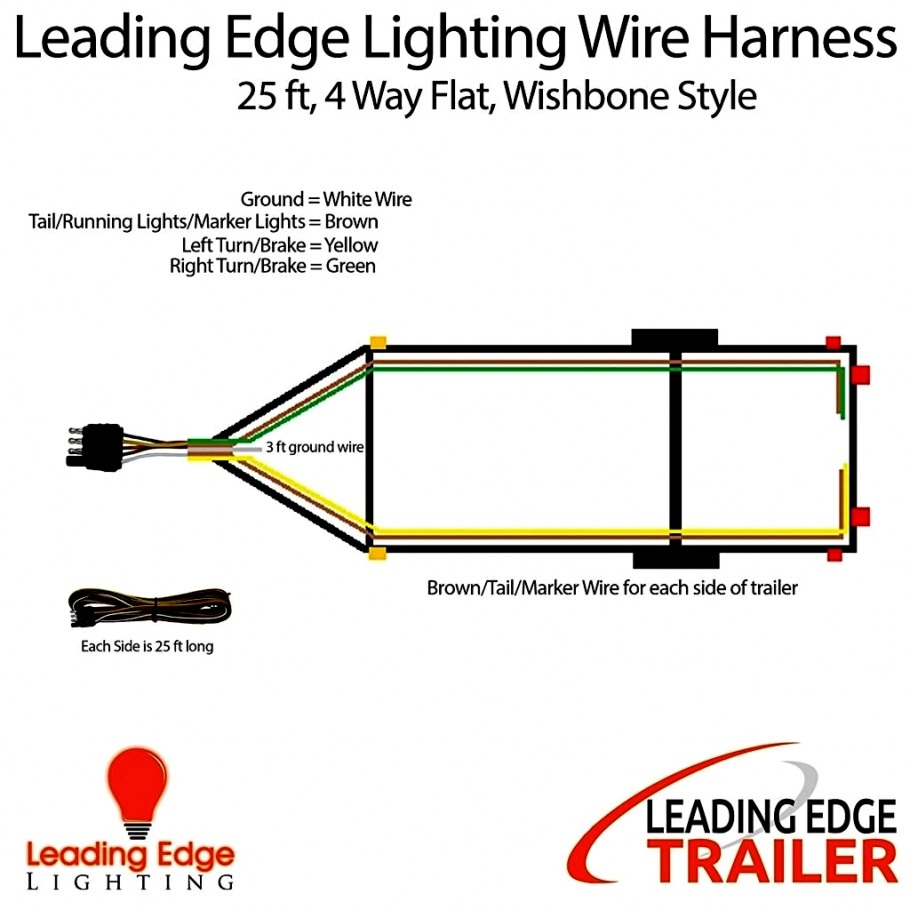

When installing a 4 plug trailer wiring system, it is important to follow the wiring diagram carefully to ensure that everything is connected correctly. Typically, the white wire is the ground wire, the brown wire is for the tail lights, the yellow wire is for the left turn signal, and the green wire is for the right turn signal. By following this diagram, you can easily connect your trailer lights to your vehicle.
One of the benefits of a 4 plug trailer wiring system is that it is relatively simple and straightforward to install. With just four wires to connect, even those with minimal experience with wiring can successfully set up their trailer lights. Additionally, this system is compatible with most trailers, making it a versatile option for a variety of towing needs.
In conclusion, a 4 plug trailer wiring system is a convenient and reliable option for those looking to tow a trailer with ease. By following the wiring diagram and properly connecting the four wires, you can ensure that your trailer lights work properly and that you can safely transport your cargo. Whether you are towing a small trailer for a weekend getaway or hauling equipment for work, a 4 plug trailer wiring system is a practical choice for all your towing needs.
