When it comes to towing a trailer, having the right wiring connection is crucial for safety and functionality. One of the common connectors used for trailers is the 6 pin plug. This type of plug allows for the basic lighting functions of a trailer to be connected to the towing vehicle, ensuring visibility and communication between the two.
Understanding the wiring diagram for a 6 pin trailer plug is essential for proper installation and troubleshooting. With the right knowledge, you can easily connect your trailer to your vehicle and ensure that all the necessary signals are being transmitted.
How To Wire A 6 Pin Round Trailer Plug Youtube 6 Pin Wiring Diagram (2020cadillac.com)

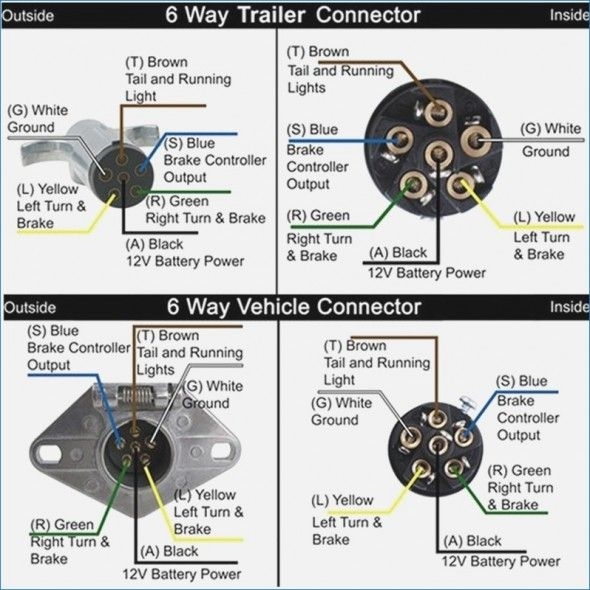

Wiring Diagram
The 6 pin trailer wiring plug diagram typically includes the following connections:
- Ground wire
- Running lights
- Left turn signal
- Brake lights
- Right turn signal
- Reverse lights (optional)
By following the wiring diagram for the 6 pin plug, you can easily match the corresponding wires from your trailer to the correct terminals on the plug. This ensures that all the necessary signals are transmitted between your vehicle and trailer, allowing for safe and efficient towing.
It is important to double-check your connections and ensure that all wires are securely attached to the plug. Proper insulation and protection of the wires can also prevent any damage or short circuits while on the road.
Overall, having a good understanding of the 6 pin trailer wiring plug diagram can make your towing experience much smoother and safer. By following the correct connections and ensuring proper installation, you can enjoy peace of mind knowing that your trailer lights are functioning as they should.
So, next time you are connecting your trailer to your vehicle, refer to the wiring diagram for the 6 pin plug to ensure a successful and trouble-free towing experience.
