7 Pin Trailer Wiring Diagram

When it comes to towing a trailer, having the right wiring is essential for safety and functionality. A 7 pin trailer wiring diagram is a standard wiring scheme that is used for most trailers. This diagram helps you understand how to connect your trailer lights, brakes, and other electrical components to your vehicle.

Having the correct wiring setup on your trailer ensures that all the necessary signals are transmitted between your vehicle and the trailer. This not only keeps you safe on the road but also helps prevent accidents and breakdowns.

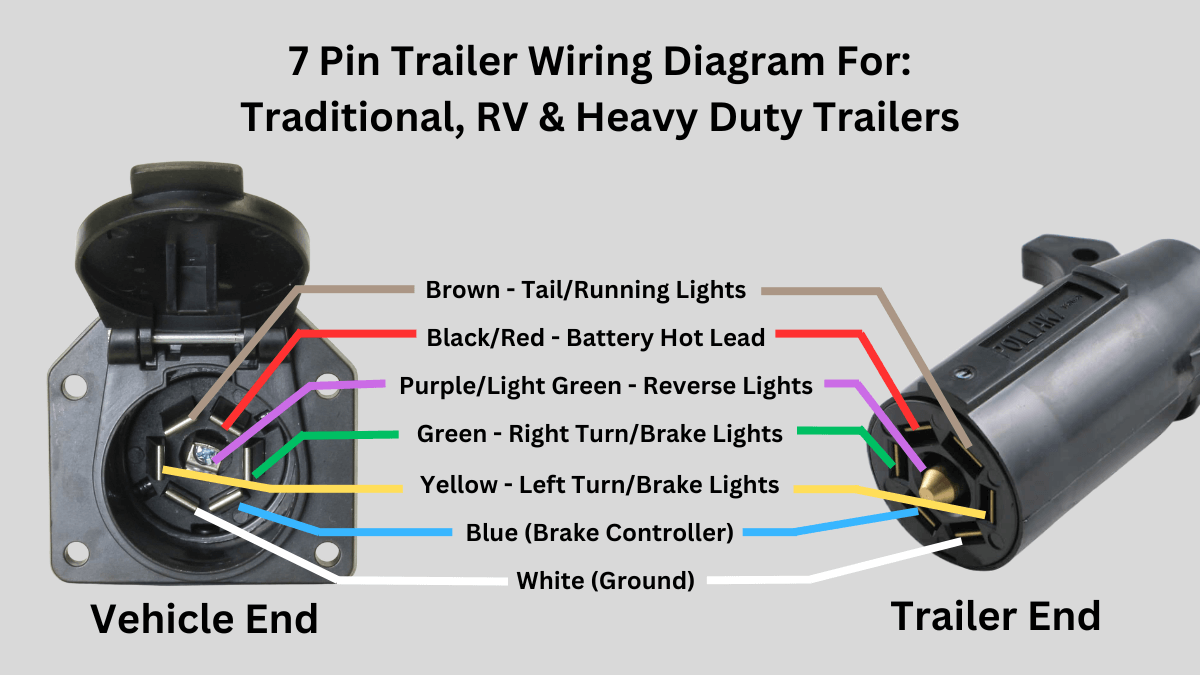

How To Connect Your 7 Pin Trailer Wiring Easily Diagram Included (offroadofficial.com)

Here is a breakdown of the 7 pin trailer wiring diagram:

1. Ground: The white wire is the ground wire and needs to be connected to the vehicle’s frame.

2. Tail Lights: The brown wire controls the tail lights on the trailer.

3. Left Turn/Brake Lights: The yellow wire is for the left turn signal and brake lights.

4. Right Turn/Brake Lights: The green wire is for the right turn signal and brake lights.

5. Electric Brakes: The blue wire is for the electric brakes on the trailer.

Make sure to follow the diagram carefully and double-check all connections to ensure everything is properly connected. If you are unsure about how to wire your trailer, it is best to consult a professional or refer to the manufacturer’s instructions.

By following the 7 pin trailer wiring diagram, you can ensure that your trailer is properly wired and ready for the road. This diagram simplifies the wiring process and helps you avoid any potential issues that may arise from incorrect wiring.

Overall, understanding and following the 7 pin trailer wiring diagram is crucial for safe and efficient towing. By taking the time to properly wire your trailer, you can enjoy a hassle-free towing experience and peace of mind on the road.

Download and Print 7 Pin Trailer Wiring Diagram Listed below

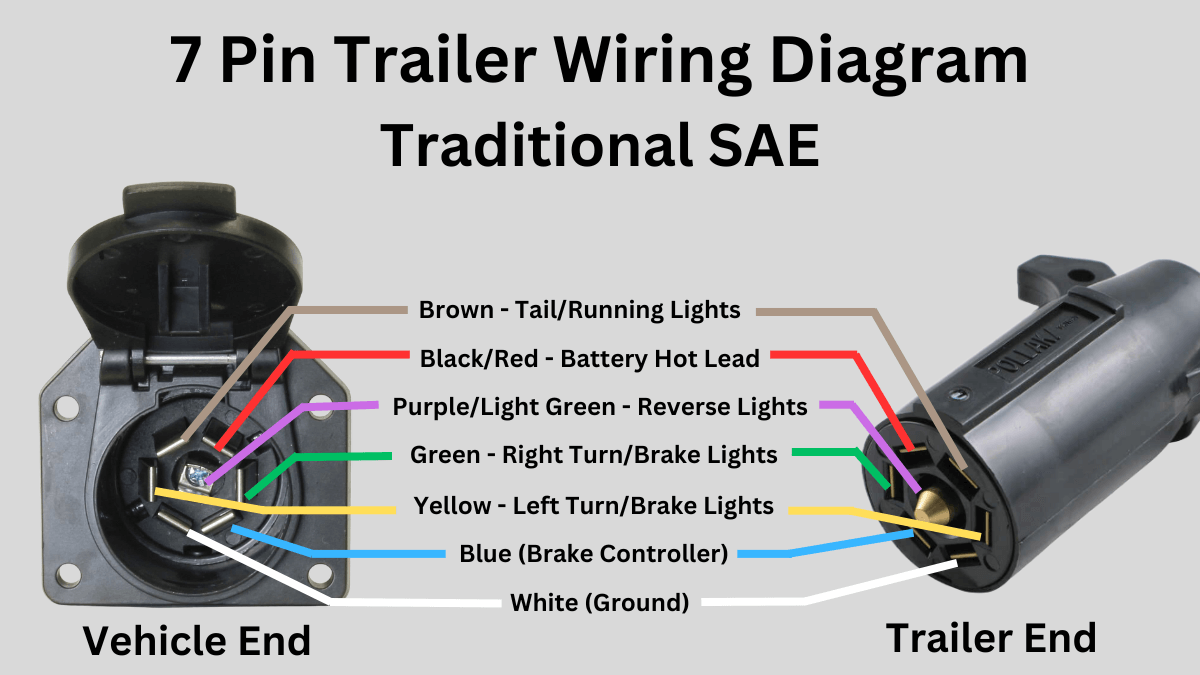

How To Connect Your 7 Pin Trailer Wiring Easily Diagram Included (offroadofficial.com)

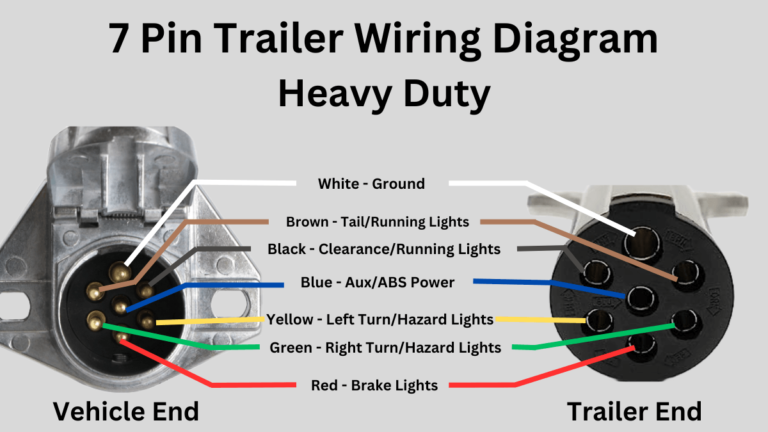

7 Pin Semi Trailer Wiring Diagram (www.tankbig.com)

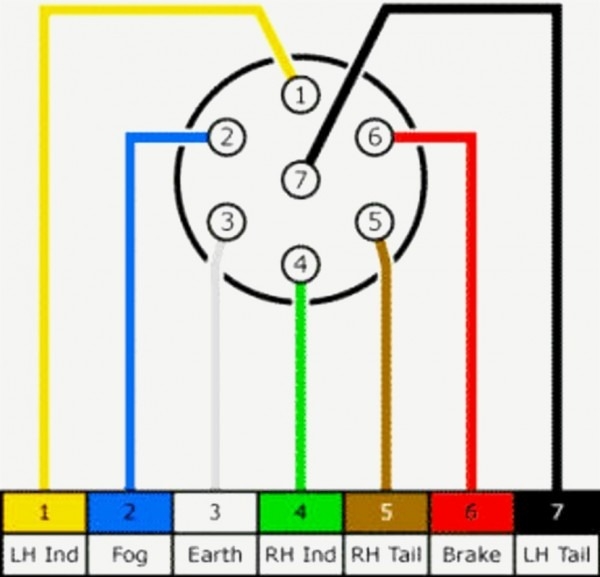

7 Pin Trailer Wiring Diagram Wiring Diagram (www.autowiringdiagram.net)

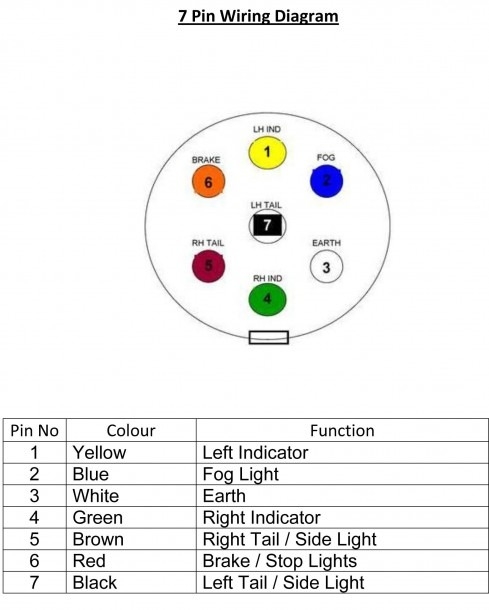

7 Pin Trailer Wiring Diagram Commercial Best Diagram Collection (www.mikrora.com)
