When it comes to towing trailers, having the right wiring is crucial for safety and functionality. A 7 wire trailer plug is a common type of connector used to hook up trailers to vehicles. Understanding how to wire a 7 wire trailer plug is essential for anyone who tows trailers regularly.
With a 7 wire trailer plug, you have the ability to connect various functions of the trailer, such as brake lights, turn signals, and tail lights. Each wire serves a specific purpose and must be connected correctly to ensure that the trailer operates properly and is visible to other drivers on the road.
6 Pin Trailer Plug Wiring Diagram Guide And Tips (schempro.com)

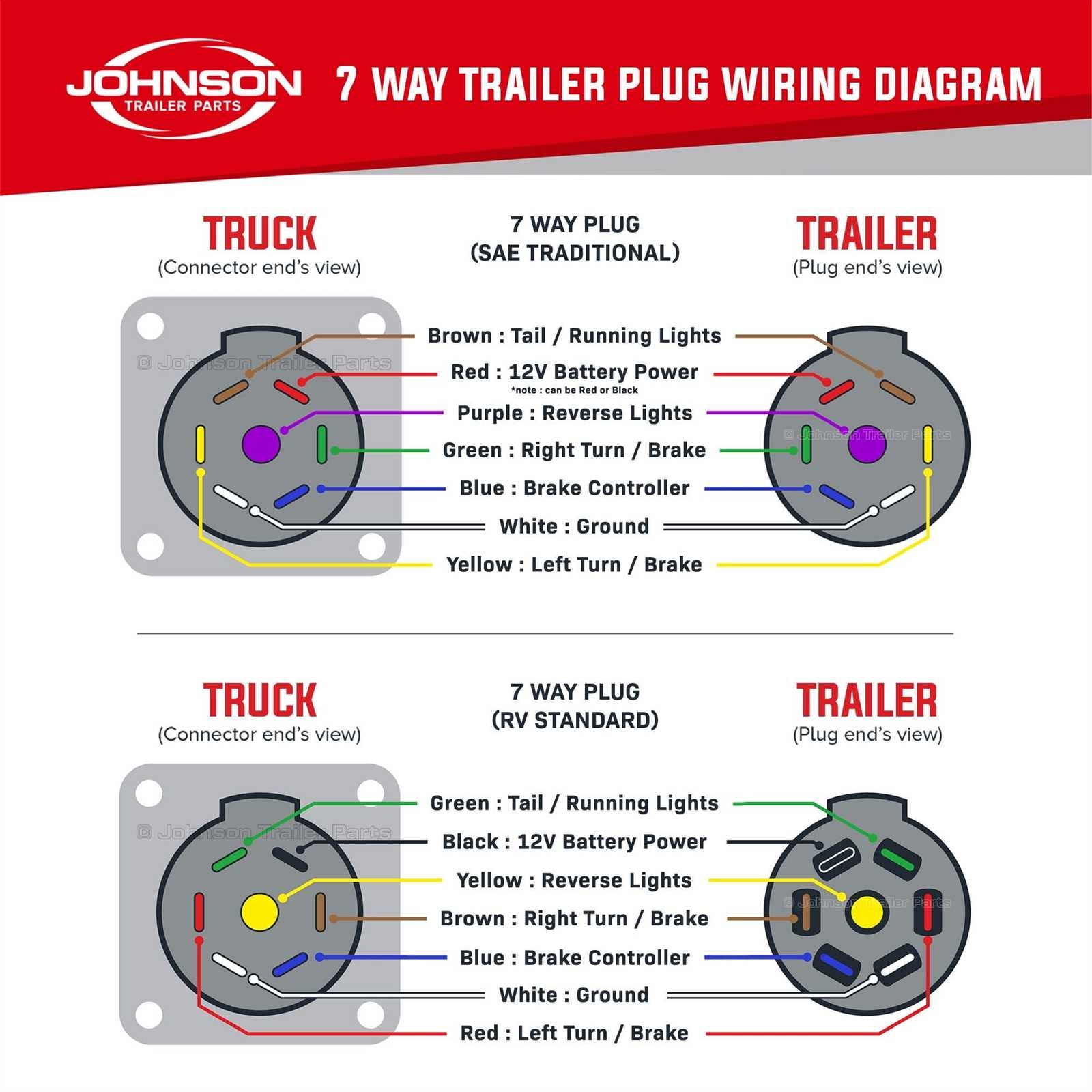

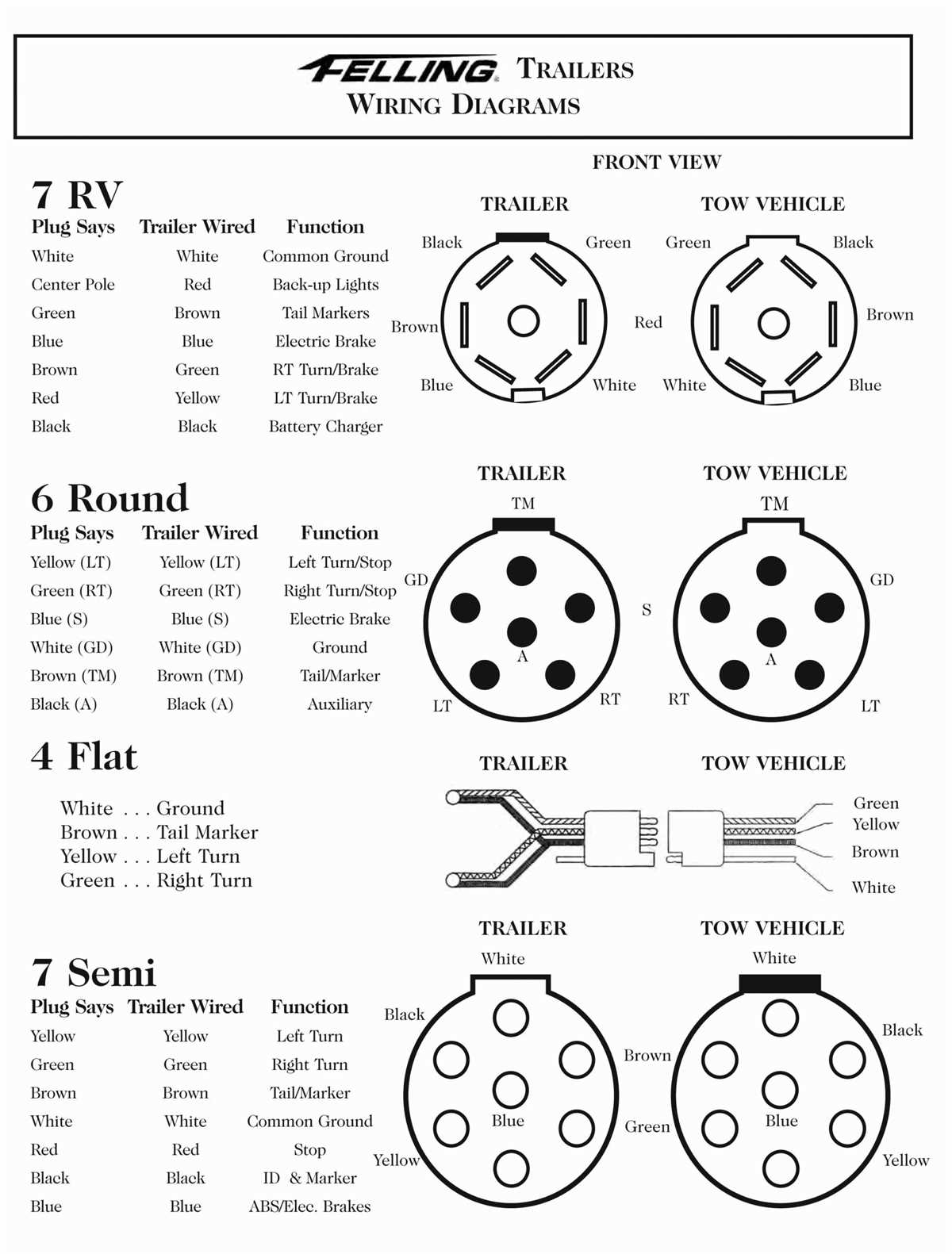

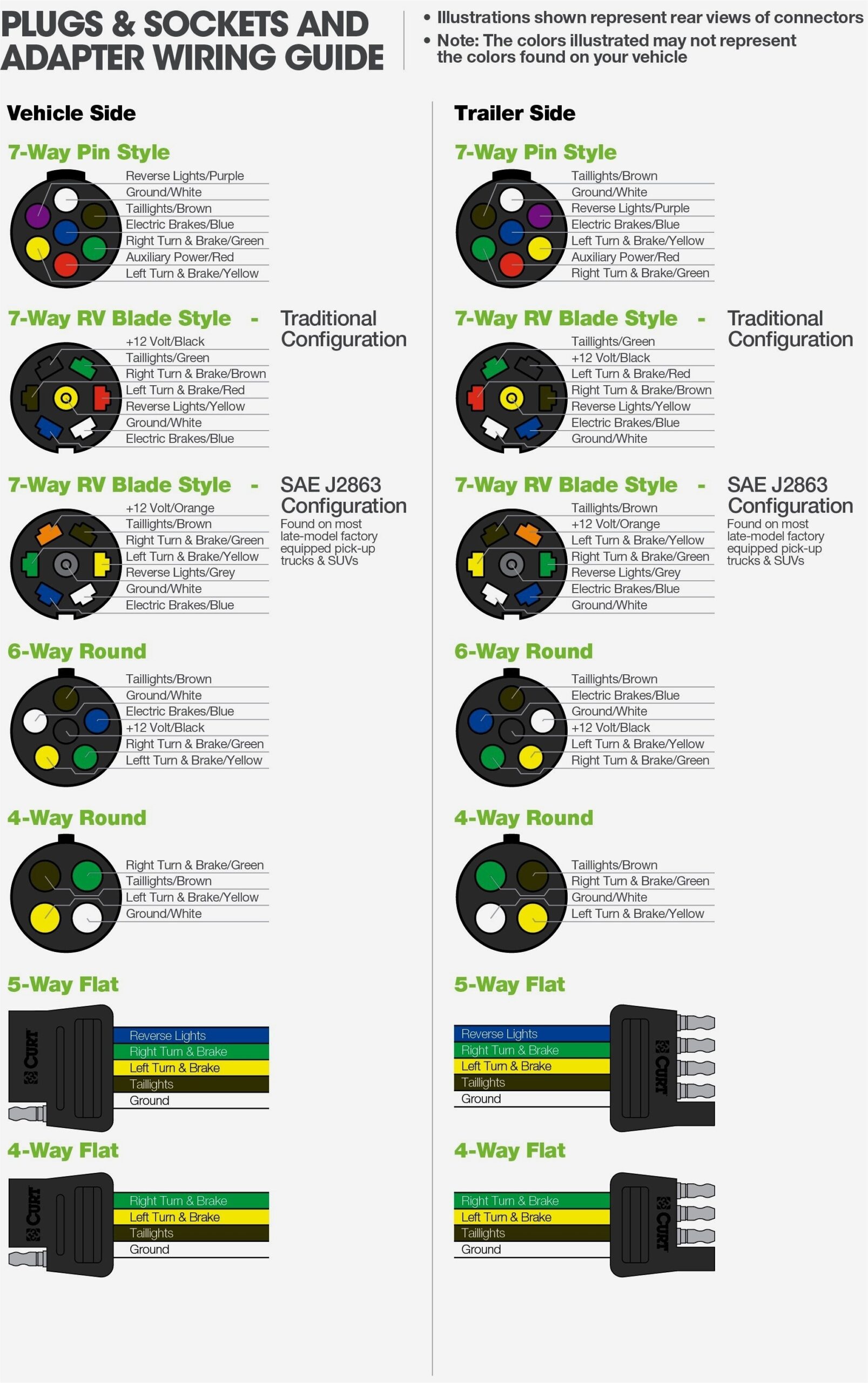

Here is a basic 7 wire trailer plug wiring diagram:
1. White wire – Ground wire
2. Brown wire – Tail lights
3. Yellow wire – Left turn signal/brake light
4. Green wire – Right turn signal/brake light
5. Blue wire – Electric brakes
6. Black wire – 12V power supply
7. Red wire – Reverse lights
When wiring a 7 wire trailer plug, it is important to make sure each wire is connected to the correct terminal on both the trailer plug and the vehicle’s wiring harness. Using a wiring diagram can help ensure that everything is connected properly and functioning as it should.
Before towing a trailer, always double check the wiring to make sure everything is secure and in good condition. Faulty wiring can lead to malfunctions and accidents on the road, so it is important to take the time to wire everything correctly.
In conclusion, knowing how to wire a 7 wire trailer plug is essential for safe and efficient towing. By following a wiring diagram and making sure each wire is connected properly, you can ensure that your trailer is visible and functioning correctly while on the road.
