Installing a ceiling fan with a light fixture can be a great way to update the look and feel of a room while also providing additional lighting and improving air circulation. However, it is important to ensure that the fan is wired correctly to avoid any potential safety hazards or malfunctions.

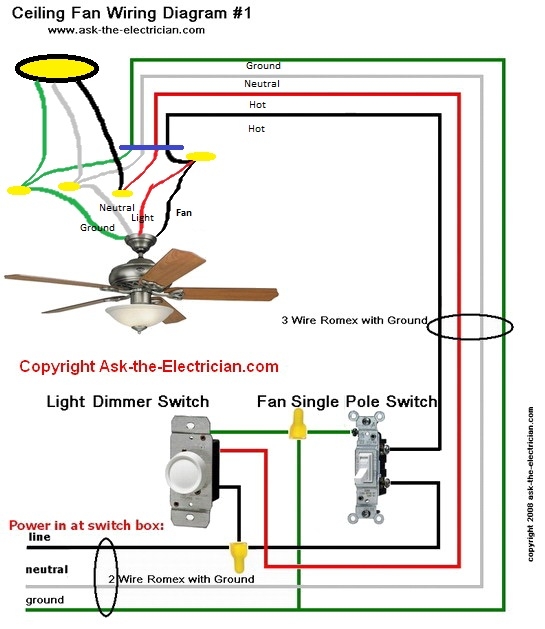

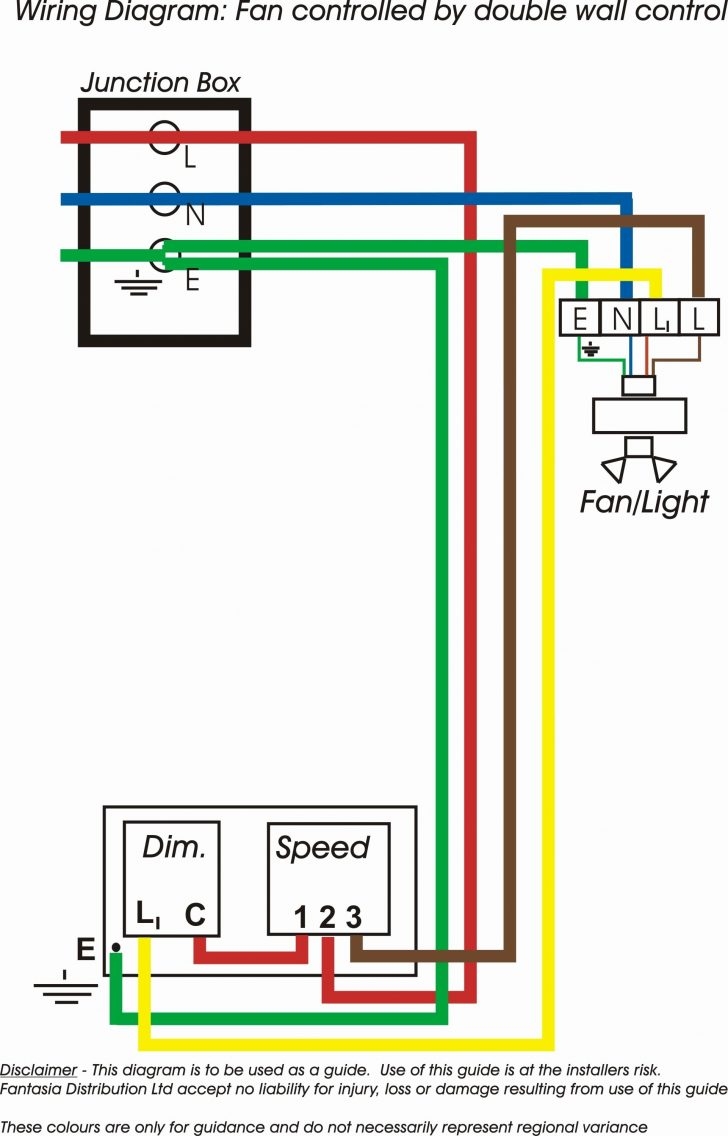

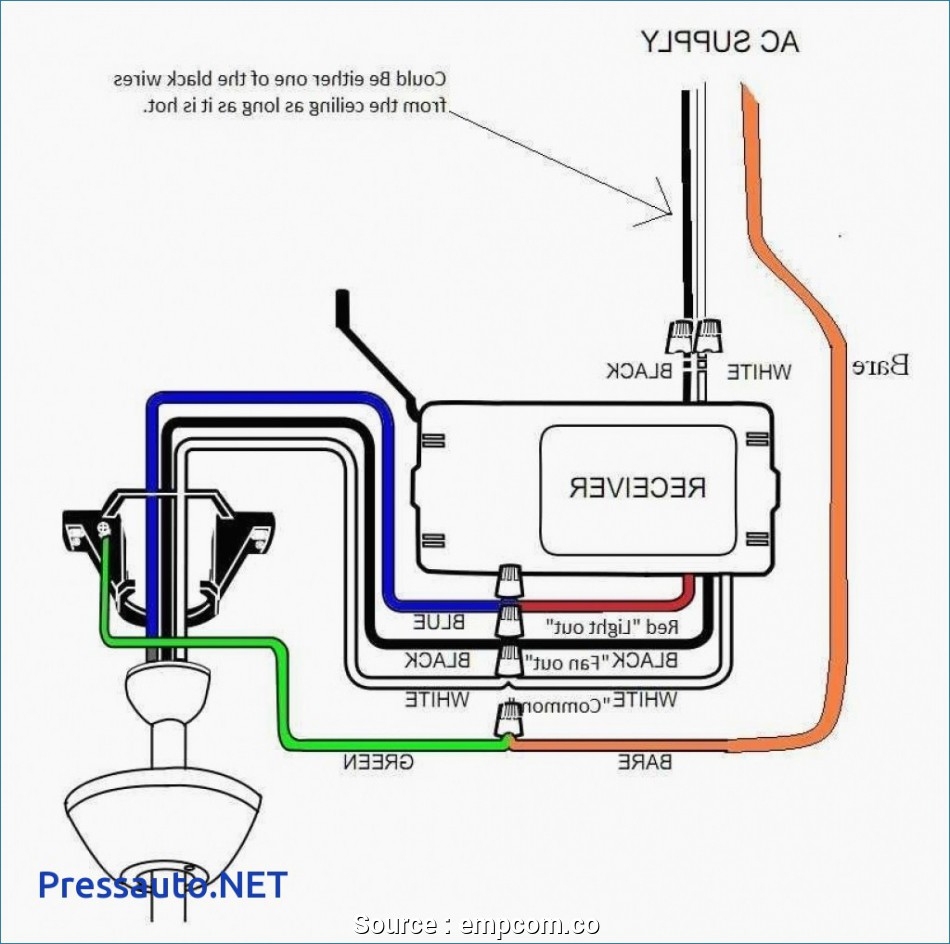

One of the key components of wiring a ceiling fan with a light is understanding the wiring diagram. This diagram provides a visual representation of how the various wires should be connected to ensure that the fan and light function properly. By following the diagram carefully, you can ensure that your ceiling fan with light is installed correctly and safely.

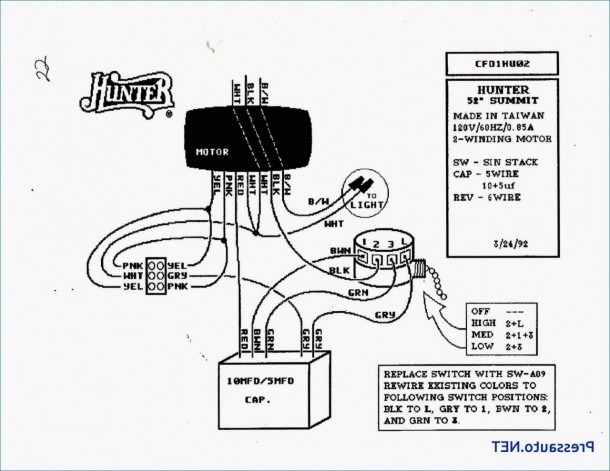

Ceiling Fan Motor Capacitor Wiring Diagram Manual E Books Ceiling (2020cadillac.com)
Ceiling Fan With Light Wiring Diagram

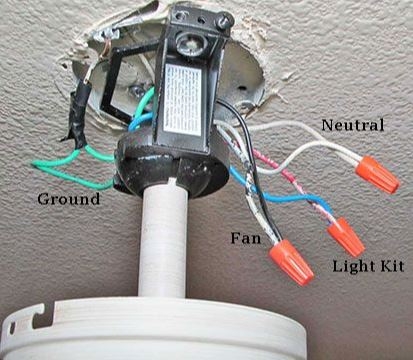

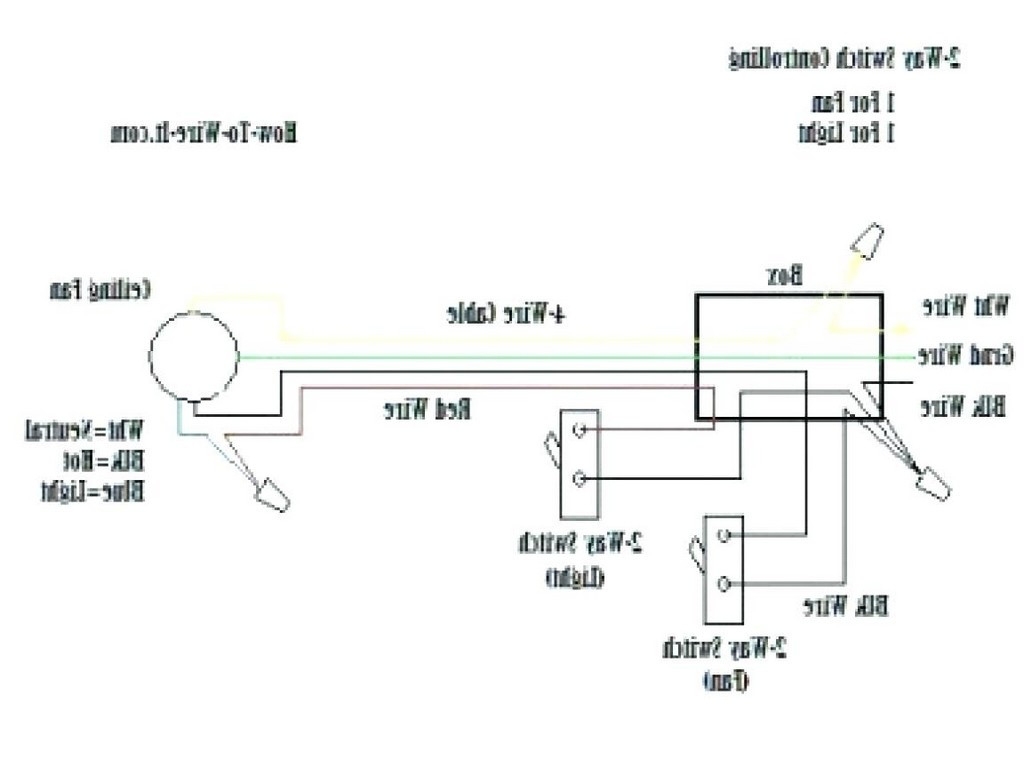

When wiring a ceiling fan with a light, it is important to identify the different wires that are involved in the installation. Typically, there will be a black wire for the fan motor, a blue wire for the light fixture, a white wire for the neutral connection, and a green or bare copper wire for the ground connection. Following the wiring diagram will help you to determine which wires should be connected together to ensure proper functionality.
It is also important to make sure that you have the right tools and materials on hand when wiring a ceiling fan with a light. This may include wire nuts, electrical tape, a voltage tester, and a screwdriver. By having everything you need before you begin the installation process, you can help to ensure that the wiring is done correctly and safely.
Once you have completed the wiring process, it is important to test the ceiling fan with light to ensure that everything is working properly. Turn on the power to the fan and light, and check to make sure that both are operating as they should. If you encounter any issues, refer back to the wiring diagram to troubleshoot and correct any mistakes.
In conclusion, properly wiring a ceiling fan with a light is essential for ensuring the safety and functionality of the fixture. By following the wiring diagram carefully and using the right tools and materials, you can install your ceiling fan with light with confidence. Remember to test the fan and light after installation to ensure that everything is working correctly, and don’t hesitate to seek professional help if needed.
