Installing a Hunter ceiling fan in your home can help keep the air circulating and the room cool during the warmer months. However, if you’re not familiar with electrical wiring, it can be a daunting task to figure out how to properly wire your new ceiling fan. That’s where a Hunter Ceiling Fan Wiring Diagram comes in handy.
Having a wiring diagram specific to your Hunter ceiling fan model can make the installation process much easier and less confusing. It provides a visual guide to help you identify the wires and where they need to be connected, ensuring a safe and successful installation.

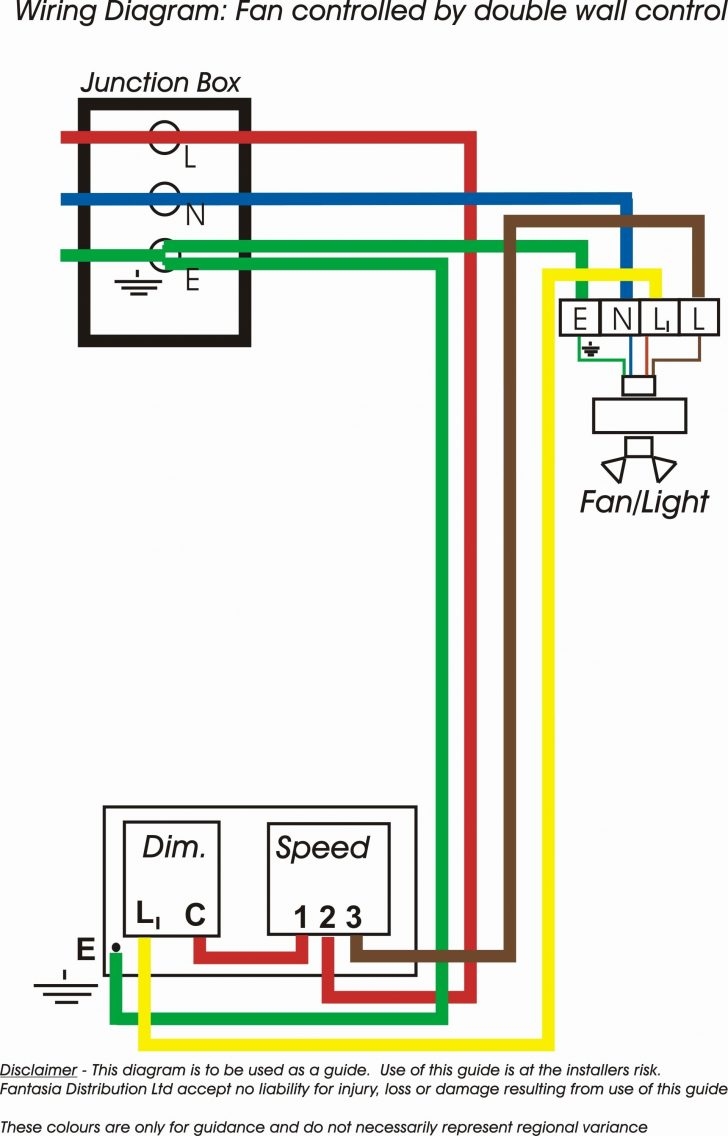

Ceiling Fan Light Internal Wiring Schematic Wiring Diagram Ceiling (2020cadillac.com)

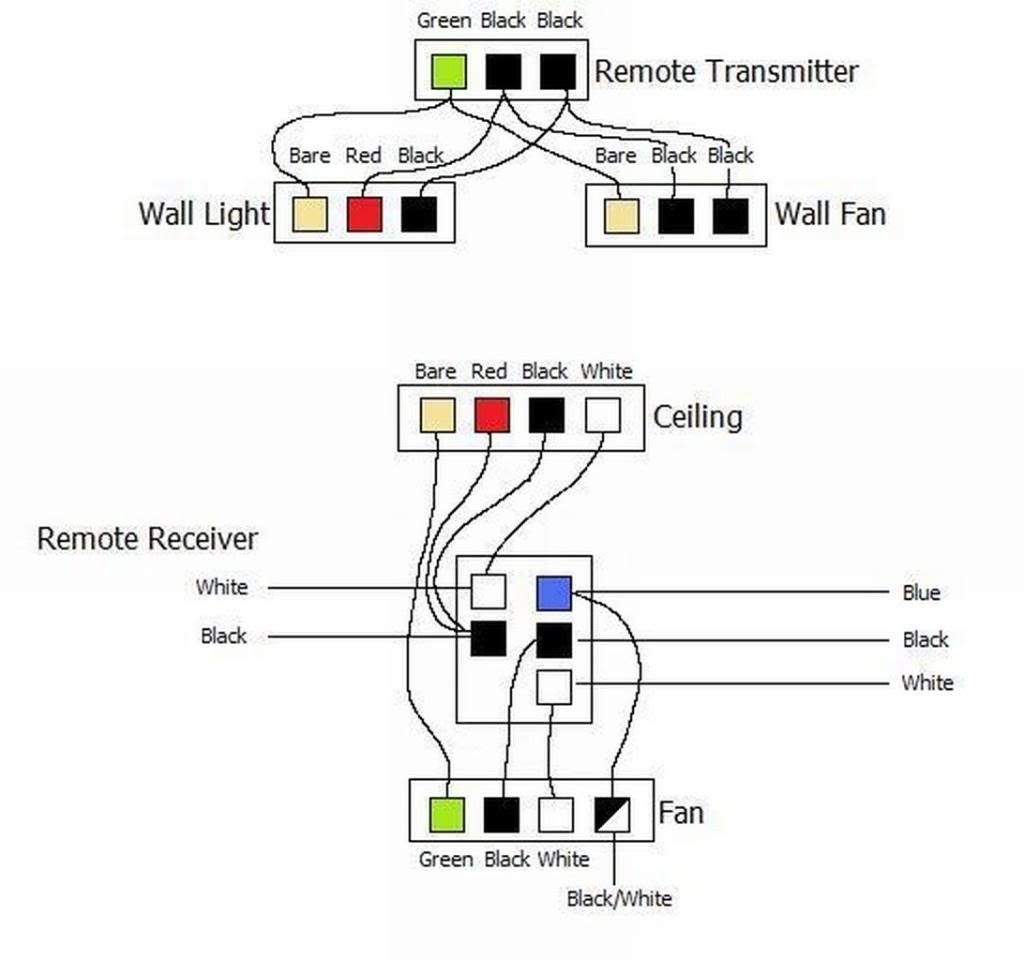

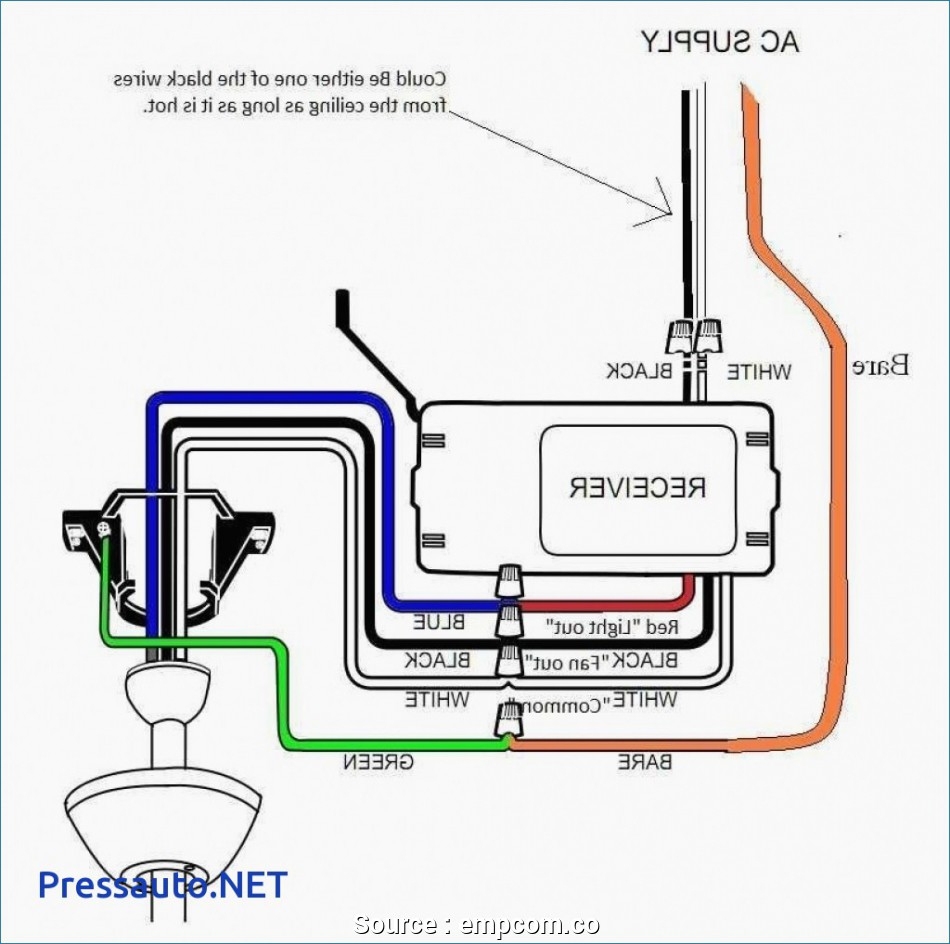

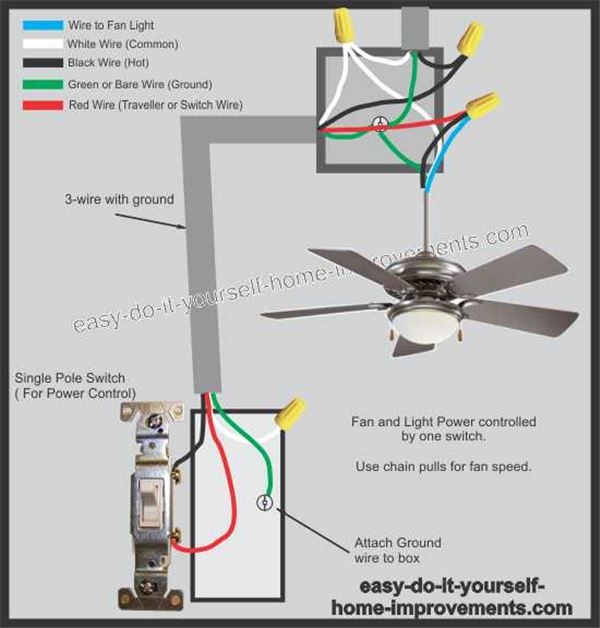

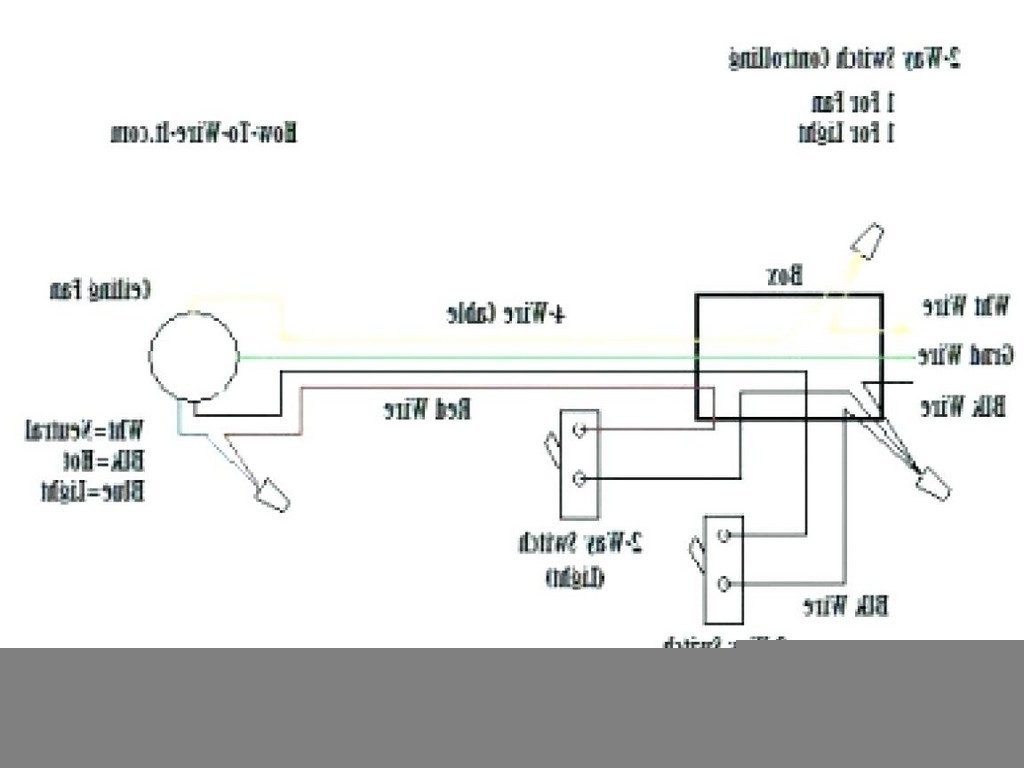

Hunter Ceiling Fan Wiring Diagram
When it comes to wiring your Hunter ceiling fan, it’s important to follow the manufacturer’s instructions carefully. Typically, a Hunter ceiling fan will have three or four wires – black (hot), white (neutral), green (ground), and sometimes a blue wire for the light kit.
Start by turning off the power to the fan at the circuit breaker. Then, remove the existing ceiling fan by disconnecting the wires and removing the mounting bracket. Next, consult your Hunter Ceiling Fan Wiring Diagram to identify which wires correspond to the black, white, green, and blue wires on your fan.
Once you have identified the wires, use wire nuts to connect the corresponding wires – black to black, white to white, green to green, and blue to blue (if applicable). Make sure to secure the connections with electrical tape and carefully tuck the wires into the ceiling fan canopy.
After all the wires are connected, attach the ceiling fan blades and light kit (if applicable) according to the manufacturer’s instructions. Finally, turn the power back on at the circuit breaker and test the fan to ensure it is working properly.
By following a Hunter Ceiling Fan Wiring Diagram and taking the time to properly wire your ceiling fan, you can enjoy a cool and comfortable home all year round. If you’re unsure about any step of the installation process, it’s always best to consult a professional electrician to ensure a safe and successful installation.
