Msd 6al Wiring Diagram

The MSD 6AL is a popular ignition control box that allows you to improve the performance of your vehicle by providing a more powerful spark. To properly install the MSD 6AL, you will need to follow a specific wiring diagram to ensure everything is connected correctly.

Before starting the installation process, make sure you have the necessary tools and equipment on hand. It is also important to carefully read the instruction manual that comes with the MSD 6AL to familiarize yourself with the wiring diagram and any specific instructions.

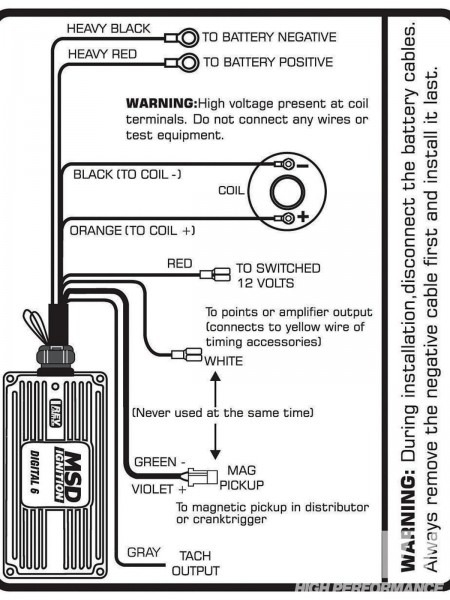

Msd Ignition 6al Wiring DiagramMsd Ignition 6al Wiring Diagram (www.tankbig.com)

When wiring the MSD 6AL, it is crucial to follow the diagram provided by MSD to avoid any potential issues or damage to your vehicle’s electrical system. The wiring diagram will typically include information on connecting the ignition box to the distributor, battery, and other components of the ignition system.

One important aspect of the wiring diagram is the location of the various wires and connectors. You will need to ensure that each wire is connected to the correct terminal or component to ensure proper functionality. It is also important to double-check all connections before starting the vehicle to avoid any potential problems.

Once you have completed the wiring process according to the MSD 6AL diagram, you can test the ignition system to ensure everything is working correctly. Start the vehicle and listen for any unusual sounds or check for any error codes that may indicate a wiring issue.

If everything is working properly, you can enjoy the improved performance and reliability that the MSD 6AL ignition control box provides. Remember to regularly check and maintain your ignition system to ensure optimal performance and longevity.

In conclusion, the MSD 6AL wiring diagram is essential for properly installing and connecting this ignition control box. By following the diagram and instructions provided by MSD, you can ensure a smooth and successful installation process. Enjoy the benefits of improved spark performance and reliability with the MSD 6AL!


Download and Print Msd 6al Wiring Diagram Listed below

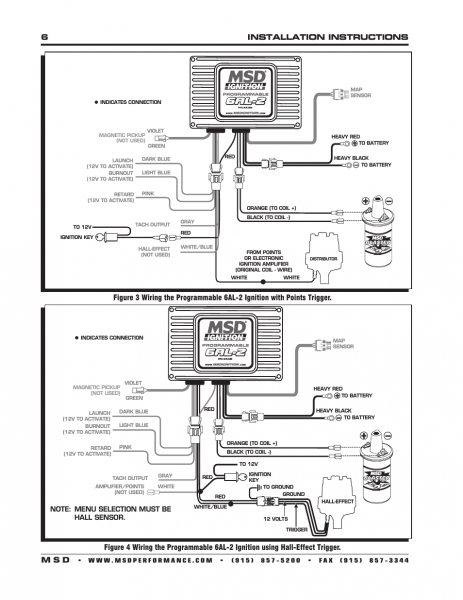

Msd 6al 2 Wiring Diagram 6530 Car Wiring DiagramMsd 6al 2 Wiring Diagram 6530 Car Wiring Diagram (www.tankbig.com)

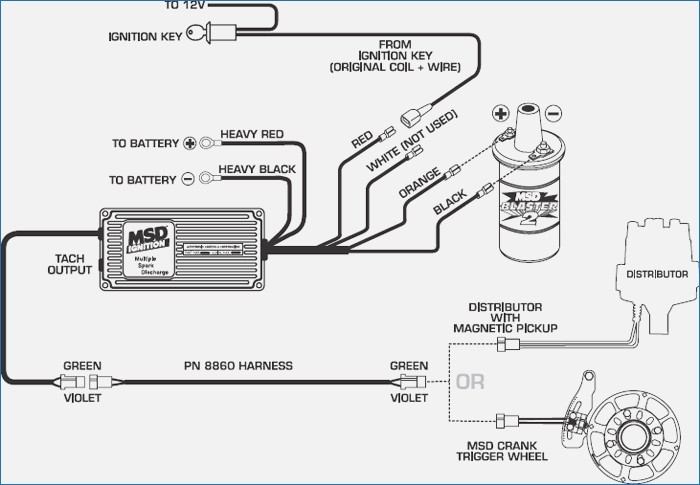

Wiring Diagram For Msd 6alWiring Diagram For Msd 6al (wiringdiagramall.blogspot.com)

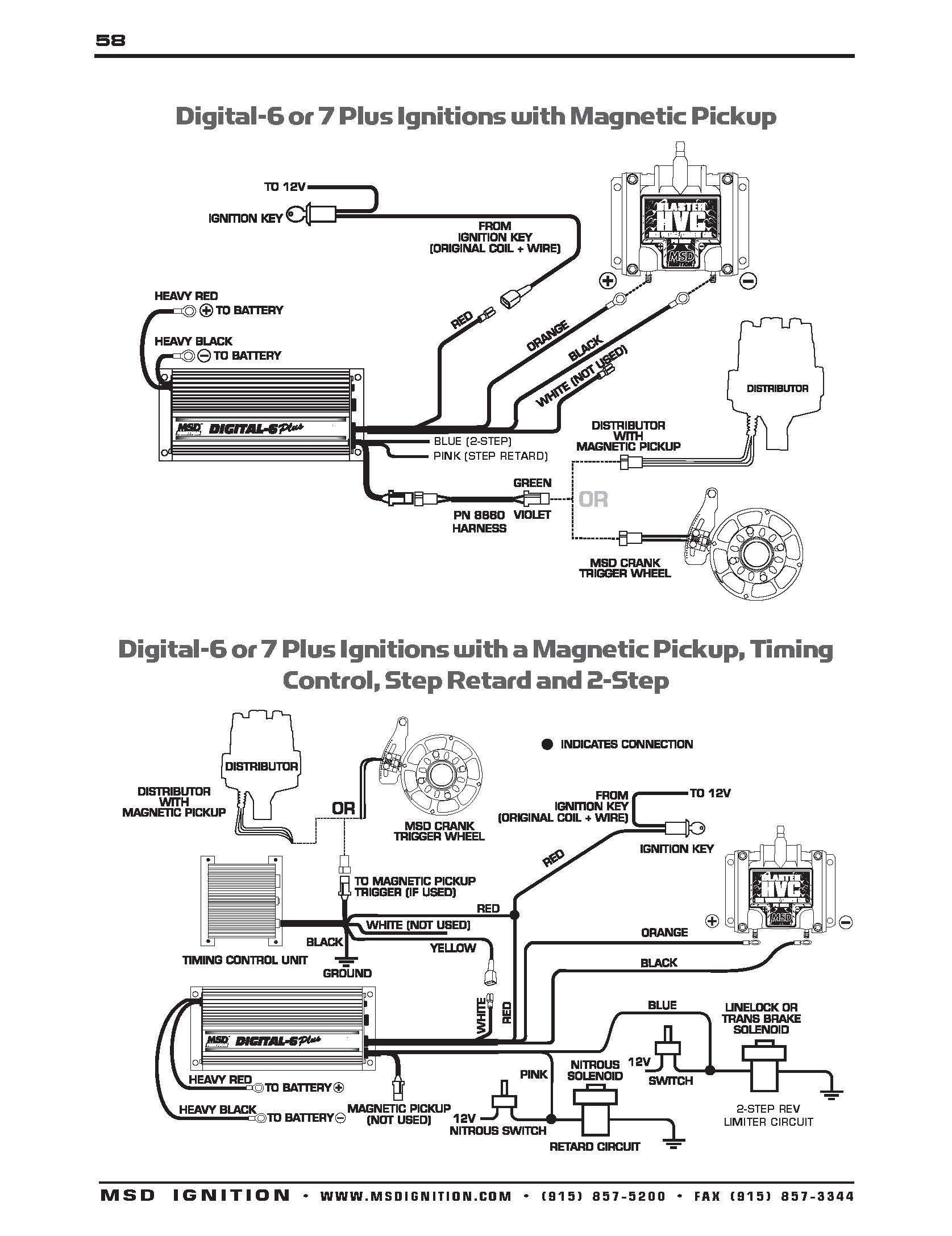

Msd Digital 6 Plus Wiring Diagram Wiring DiagramMsd Digital 6 Plus Wiring Diagram Wiring Diagram (annawiringdiagram.com)

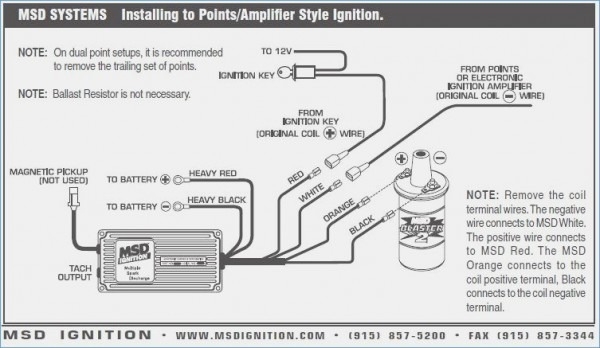

Msd 6ls Wiring DiagramMsd 6ls Wiring Diagram (www.chanish.org)

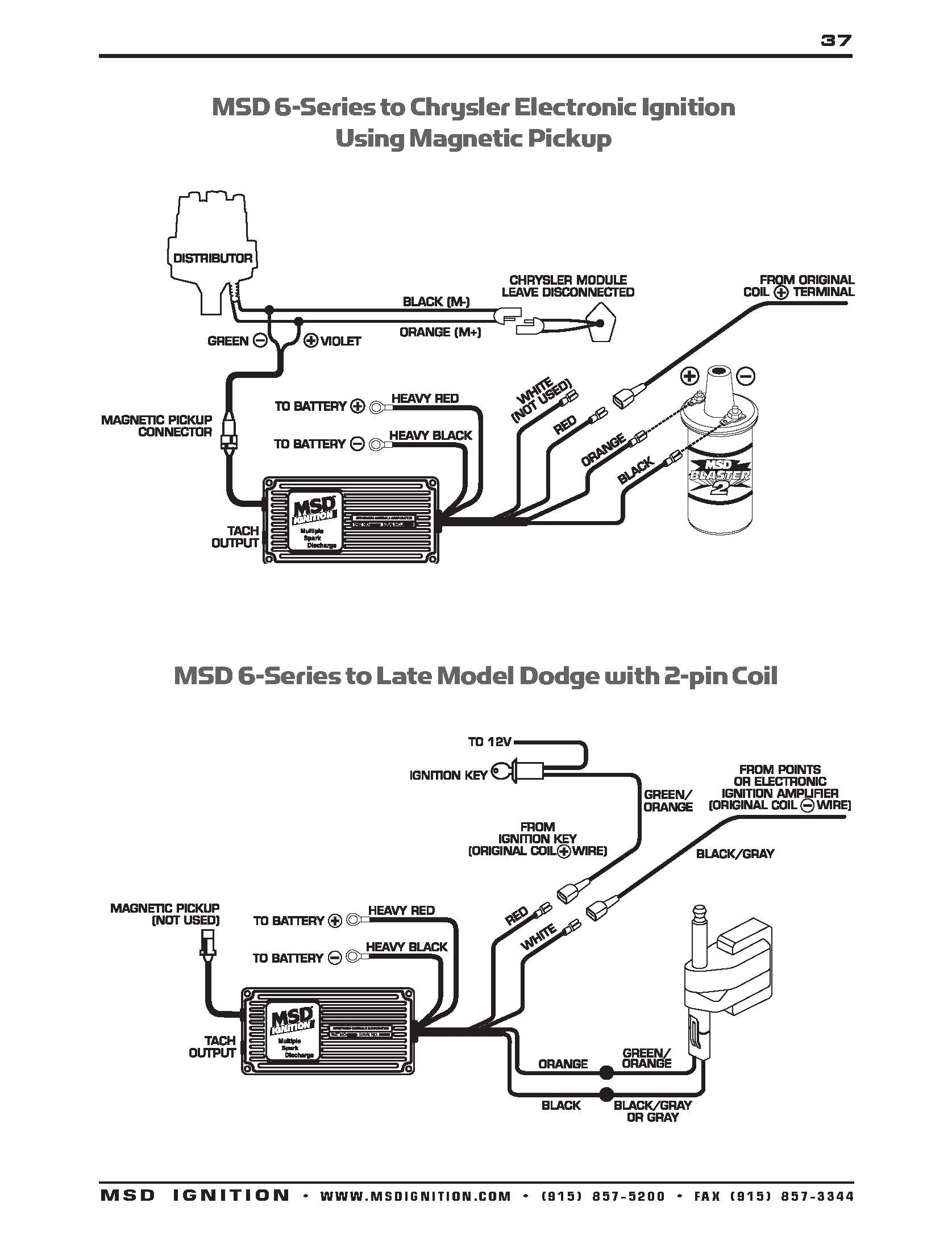

Msd Distributor Wiring Diagram Easy WiringMsd Distributor Wiring Diagram Easy Wiring (easywiring.info)
