Installing a reverse camera in your vehicle can greatly improve your safety while driving in reverse. However, knowing how to properly wire the camera can be a bit confusing. By following a reverse camera wiring diagram, you can ensure that the installation process goes smoothly and that your camera functions correctly.
Before starting the installation process, it’s important to gather all the necessary materials. This typically includes the reverse camera, wiring harness, power cable, and any additional tools such as wire strippers and electrical tape. Once you have everything you need, you can begin wiring the camera according to the diagram.

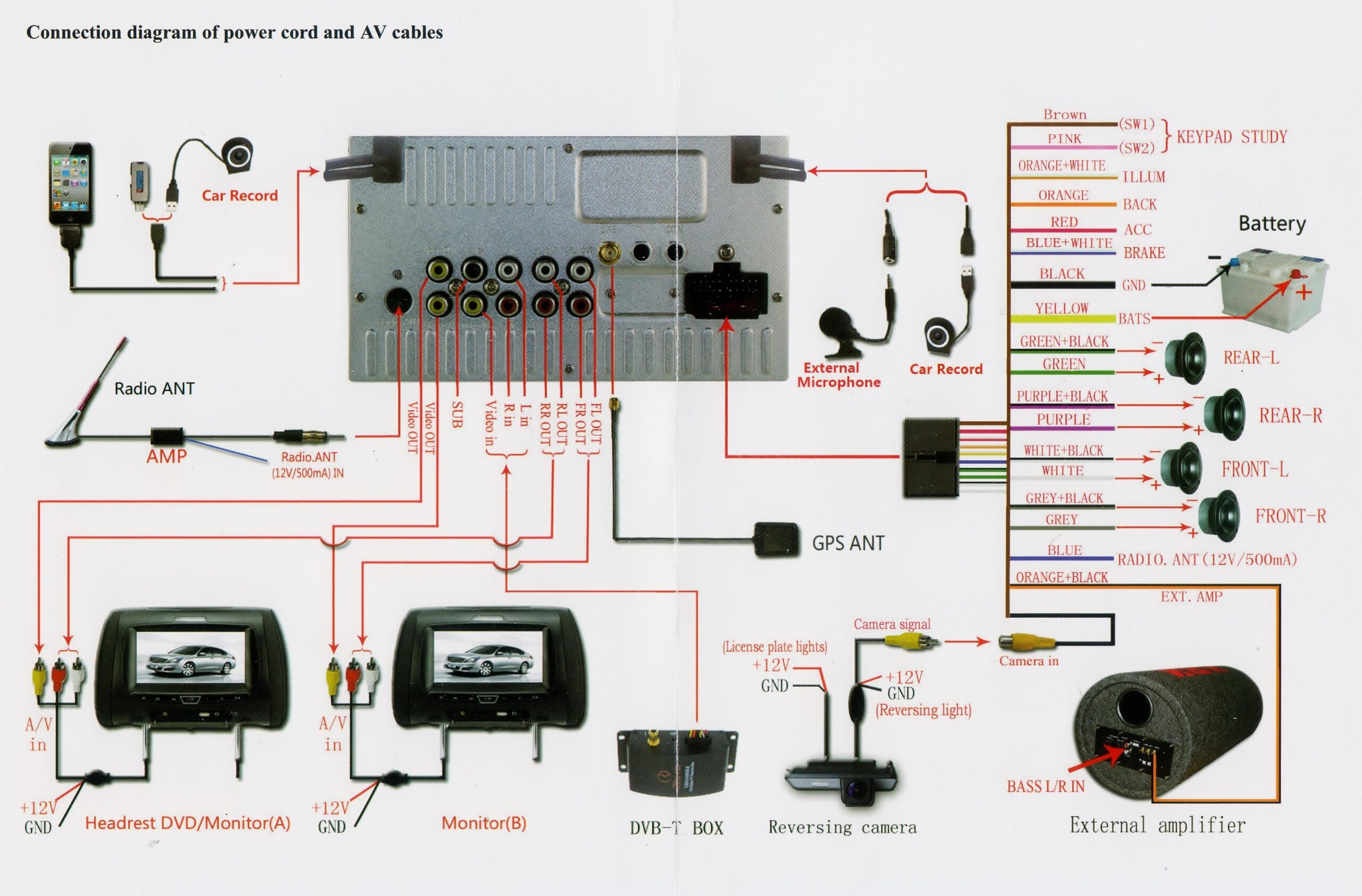

Factory Toyota Sienna Reverse Camera Wiring Diagram (wiringall.com)
First, you will need to locate the reverse light wire in your vehicle. This wire is typically located in the taillight assembly and is used to activate the camera when you shift into reverse. Once you have identified the reverse light wire, you can connect the power cable from the camera to this wire using a T-tap connector or wire splice.
Next, you will need to connect the camera’s video cable to the display unit in your vehicle. This can be done by running the video cable through the vehicle’s interior and connecting it to the display unit. Be sure to secure the cable in place using zip ties or adhesive clips to prevent it from getting tangled or damaged.
Finally, you will need to connect the camera’s ground wire to a suitable grounding point in your vehicle. This is typically a bare metal surface near the camera installation location. Once all the wires are properly connected, you can test the camera to ensure that it is functioning correctly.
By following a reverse camera wiring diagram and carefully connecting the necessary wires, you can successfully install a reverse camera in your vehicle. This will not only improve your safety while driving in reverse but also enhance your overall driving experience.
