When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A seven-pin trailer wiring diagram is commonly used for trailers that have brakes and additional lighting. Understanding how to wire a seven-pin connector can help ensure that your trailer operates smoothly and is compliant with regulations.
Whether you are towing a boat, camper, or utility trailer, knowing how to properly connect the wiring is crucial. A seven-pin trailer wiring diagram includes connections for turn signals, brake lights, reverse lights, electric brakes, and auxiliary power. By following the diagram, you can securely connect your trailer to your vehicle and ensure all necessary functions work correctly.
7 Pin Semi Trailer Wiring Diagram (www.tankbig.com)

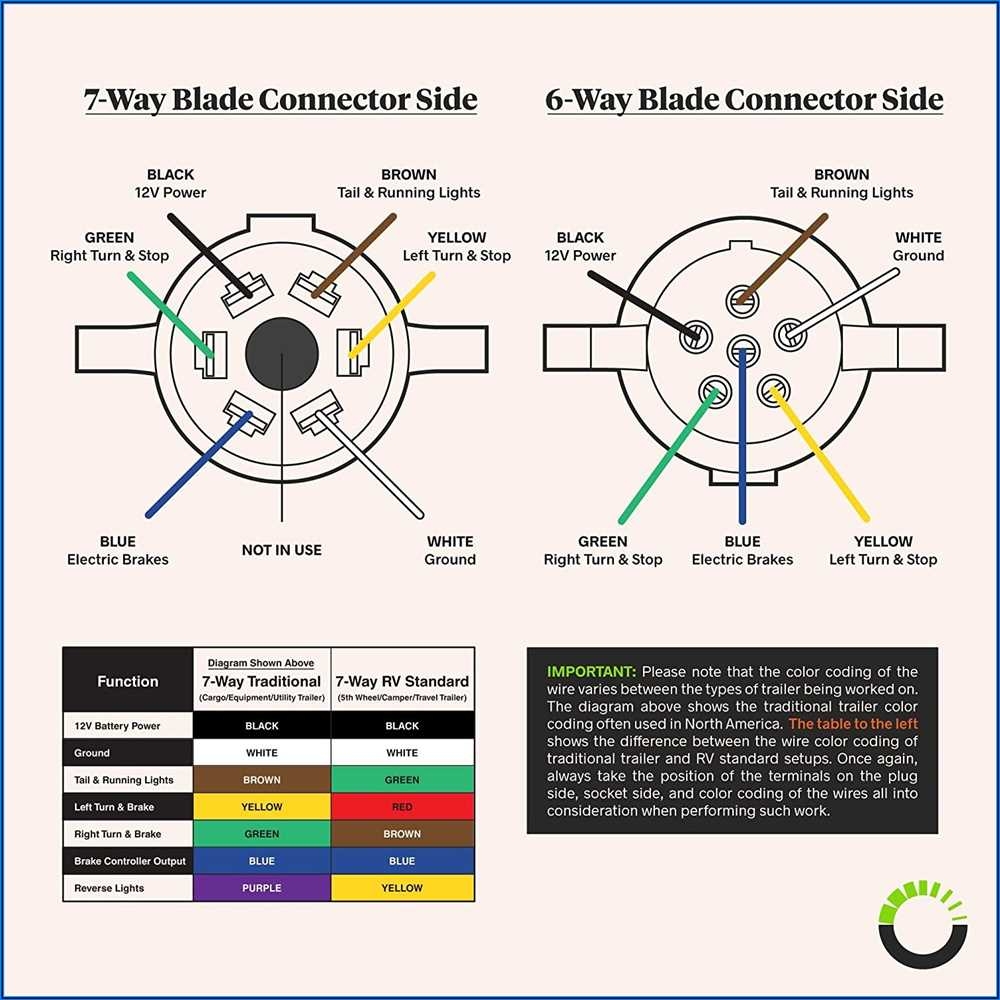

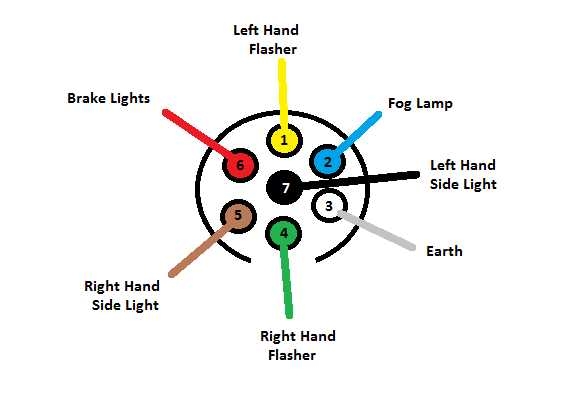

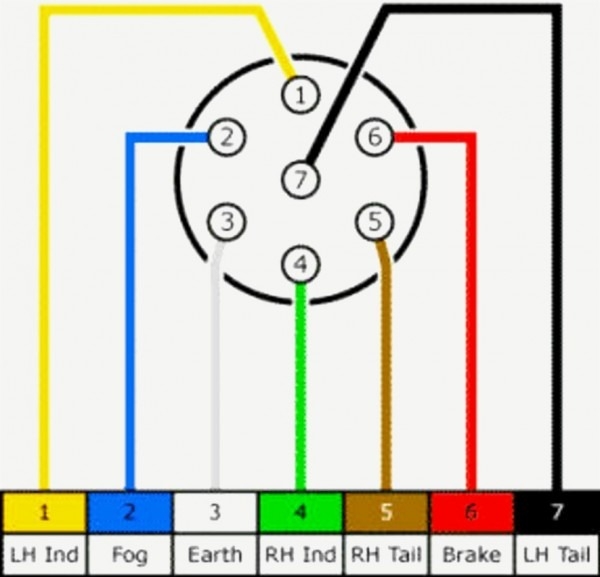

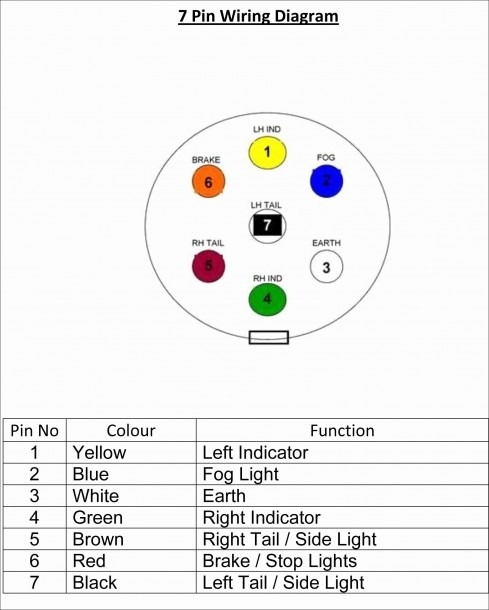

Starting with the trailer side, the seven-pin connector will typically have color-coded wires for each function. The most common color codes are: white for ground, brown for tail lights, yellow for left turn and brake, green for right turn and brake, blue for electric brakes, black for auxiliary power, and red for reverse lights. Ensuring the correct wires are connected to each pin is vital for proper operation.
On the vehicle side, the wiring will also need to be matched up to the corresponding functions. This may require using a wiring harness or adapter to connect the vehicle’s wiring to the trailer. It is important to double-check the connections and test the lights and brakes before hitting the road to ensure everything is working correctly.
Properly maintaining the wiring on your trailer is essential for safe towing. Over time, wires can become damaged or corroded, leading to connection issues. Regularly inspecting the wiring and making any necessary repairs or replacements can help prevent problems while on the road.
By following a seven-pin trailer wiring diagram and ensuring all connections are secure, you can tow your trailer with confidence. Safety should always be a top priority when towing, and having the correct wiring is a crucial aspect of that. Whether you are a seasoned trailer owner or new to towing, understanding how to wire a seven-pin connector is a valuable skill.
