When it comes to customizing your Telecaster guitar, understanding the wiring diagram is essential. The Telecaster, or Tele, is a classic electric guitar known for its distinctive sound and simple design. By modifying the wiring, you can enhance the tone and versatility of your instrument. Whether you’re a seasoned musician or a DIY enthusiast, knowing how to wire your Telecaster can open up a world of possibilities for your playing.

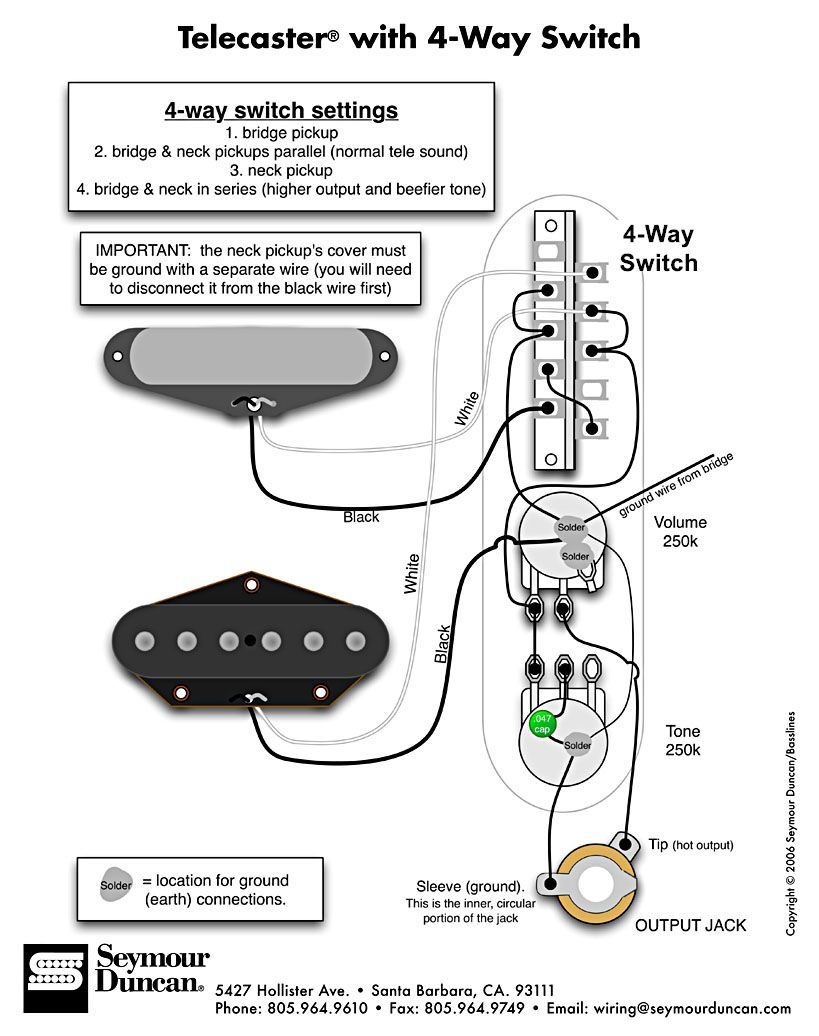

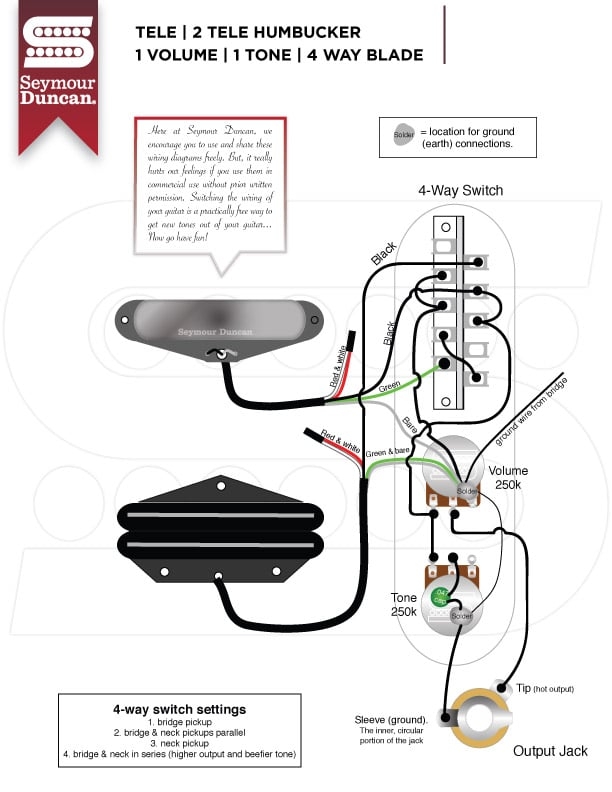

With a basic understanding of electronics and some soldering skills, you can easily modify the wiring of your Telecaster to achieve different tones. There are numerous wiring diagrams available online, each offering a unique configuration for your guitar. From adding a series/parallel switch to installing a 4-way switch for additional pickup combinations, the possibilities are endless.
Telecaster Switch Wiring Diagram Hot Sex Picture (www.hotzxgirl.com)

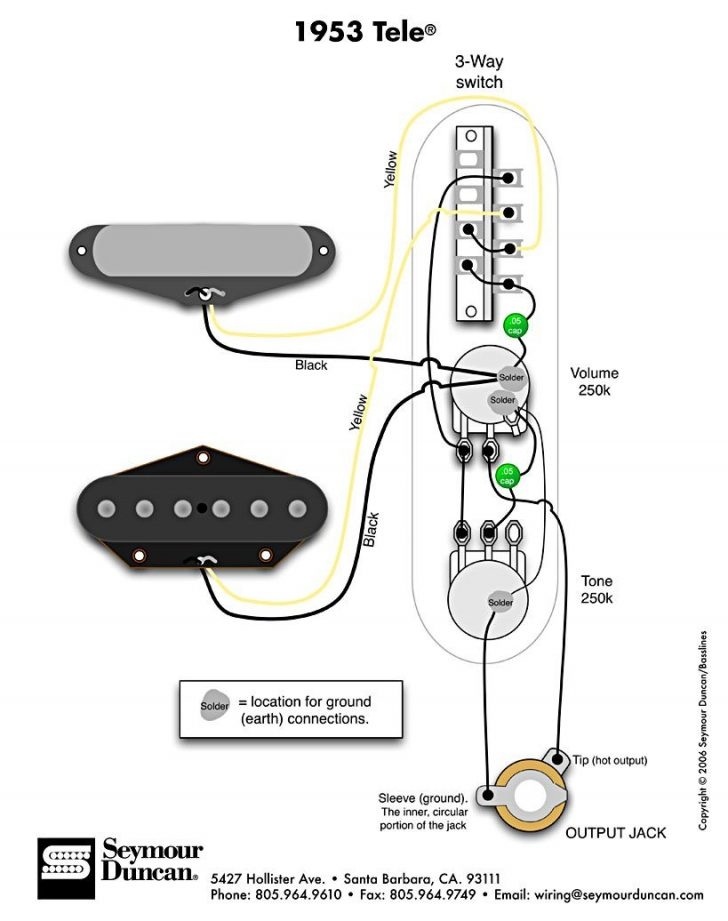

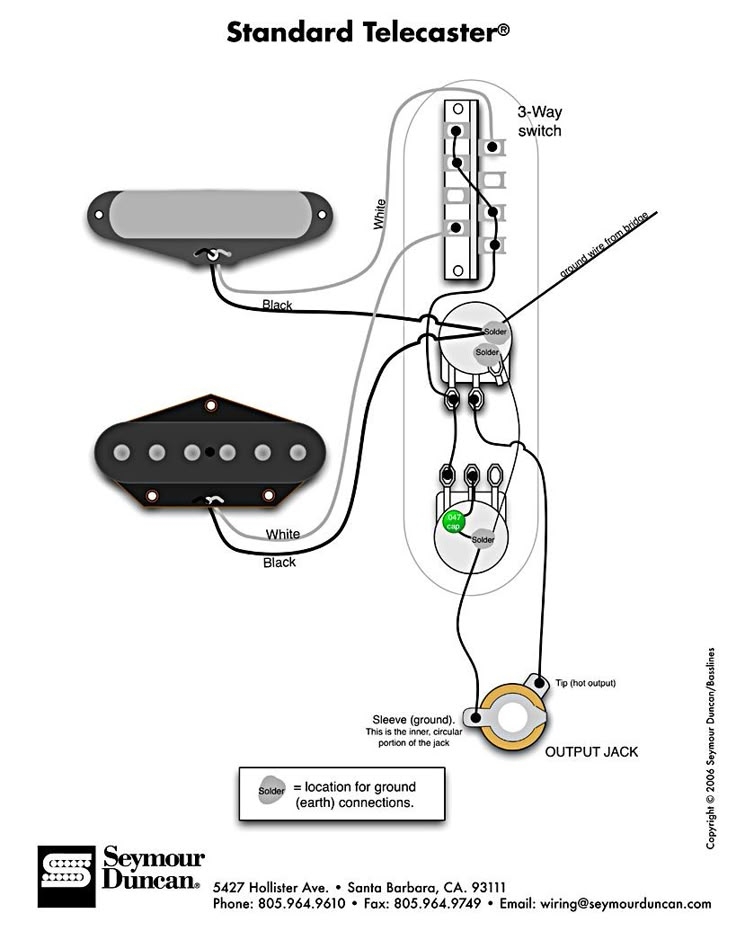

Tele Wiring Diagram

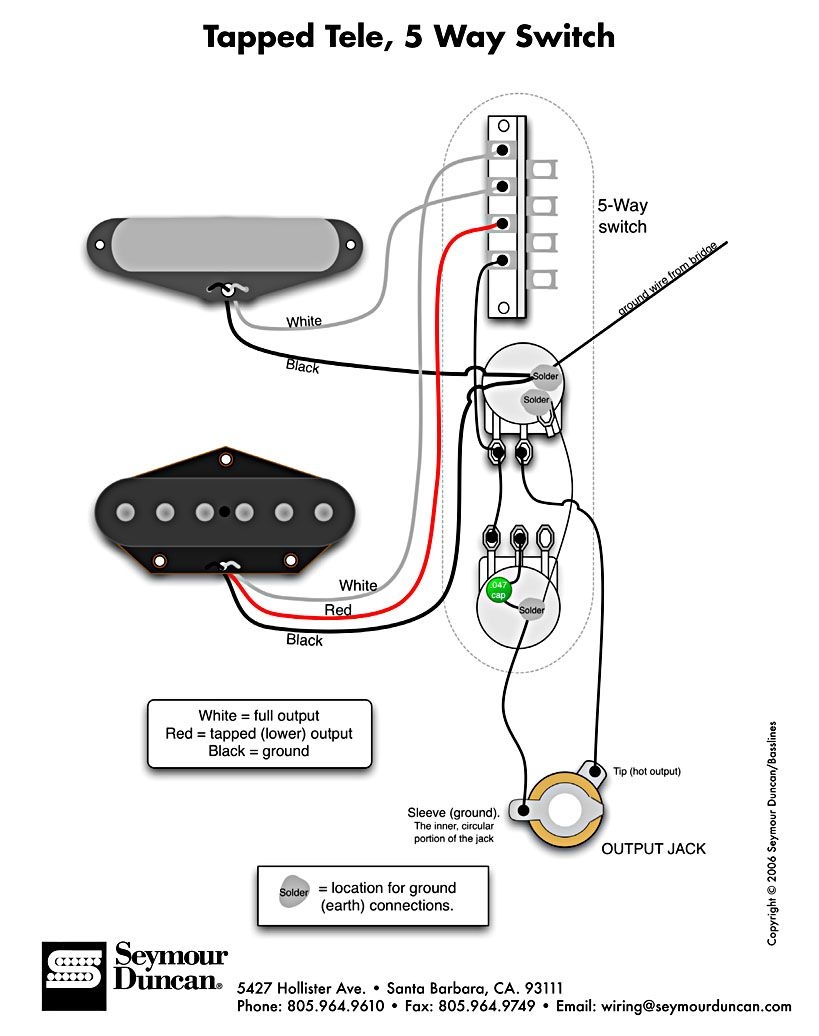

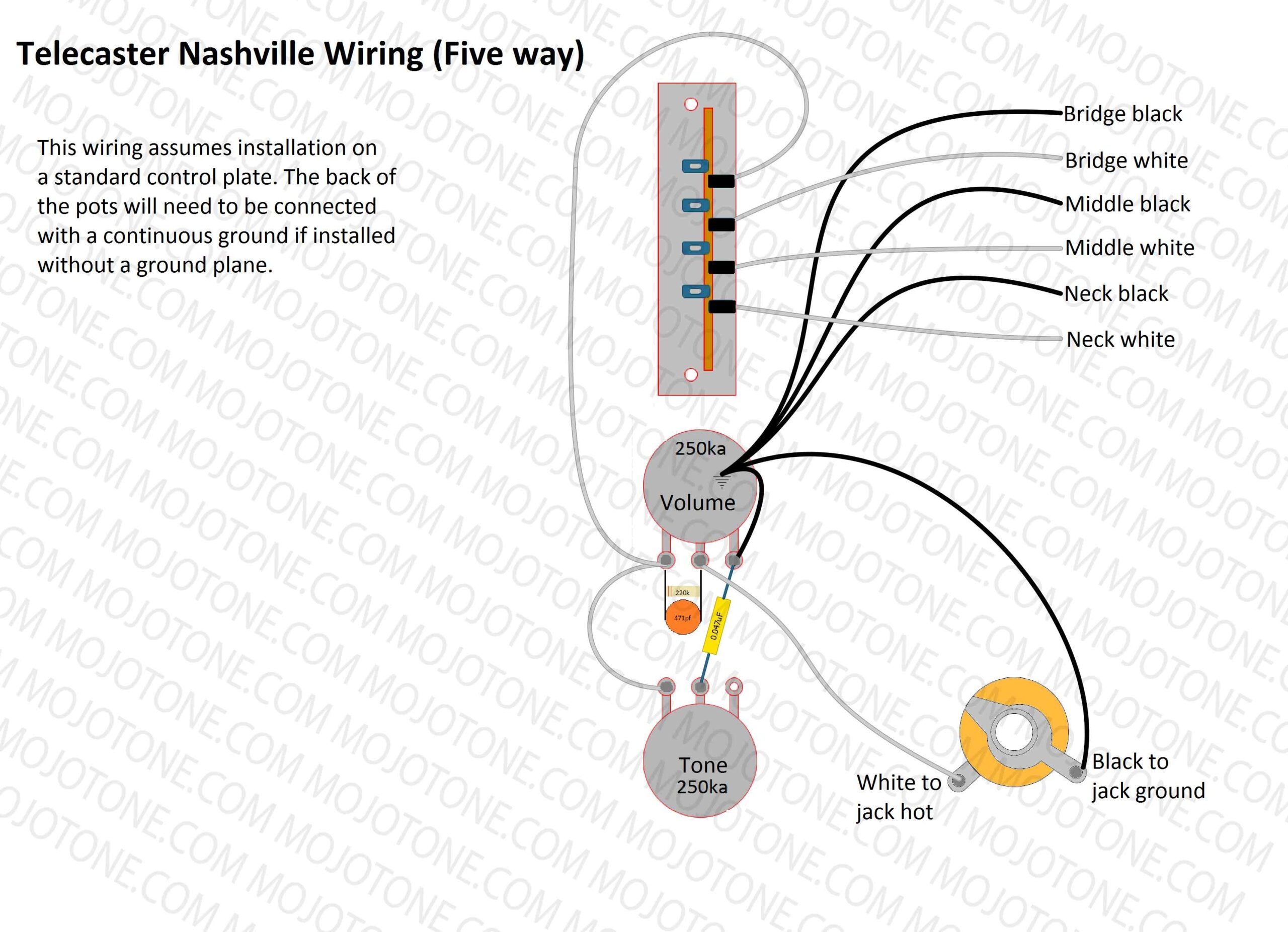

One common modification for a Telecaster is the “Nashville” wiring, which adds a middle pickup to achieve a Stratocaster-like tone. This wiring diagram involves rewiring the control plate and adding a 5-way switch to select different pickup combinations. By following the diagram and carefully soldering the connections, you can transform your Telecaster into a versatile instrument capable of producing a wide range of tones.
Another popular wiring modification is the “Esquire” wiring, which simplifies the control layout of the Telecaster to just a single pickup and volume control. This minimalist setup is favored by players looking for a raw and direct tone. The wiring diagram for an Esquire conversion involves bypassing the tone control and using a special switch to engage a series resistor for a darker tone.
For those looking to expand the tonal options of their Telecaster without drastically altering the traditional setup, there are wiring diagrams available for blending the neck and bridge pickups, adding a phase switch, or installing a treble bleed circuit. These modifications can enhance the clarity, balance, and versatility of your Telecaster, allowing you to tailor your sound to suit your playing style.
Overall, understanding the wiring diagram for your Telecaster can empower you to customize your guitar to suit your individual preferences and playing needs. Whether you’re looking to achieve a vintage tone, modern versatility, or something in between, there are endless possibilities for modifying the wiring of your Telecaster. With some basic tools, patience, and a willingness to experiment, you can unlock the full potential of your instrument and take your playing to the next level.
