When it comes to wiring a two way light switch, it is important to understand the basics of how it works. A two way switch allows you to control a single light from two different locations. This is commonly used in hallways or staircases where you want to be able to turn the light on or off from either end.

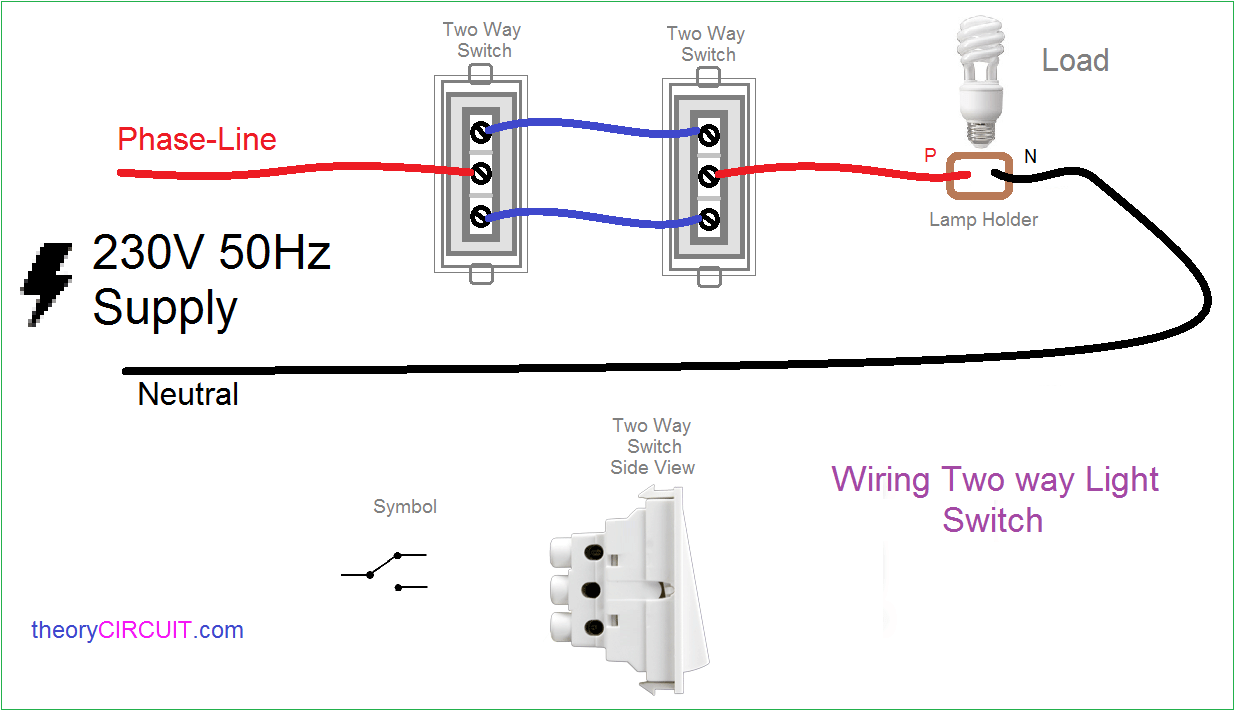

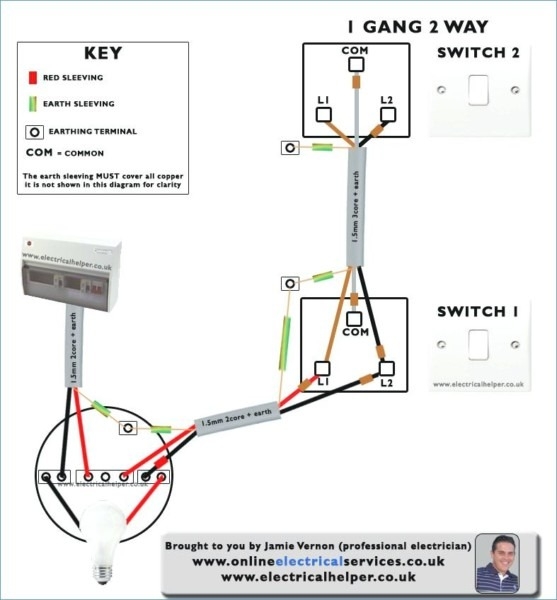

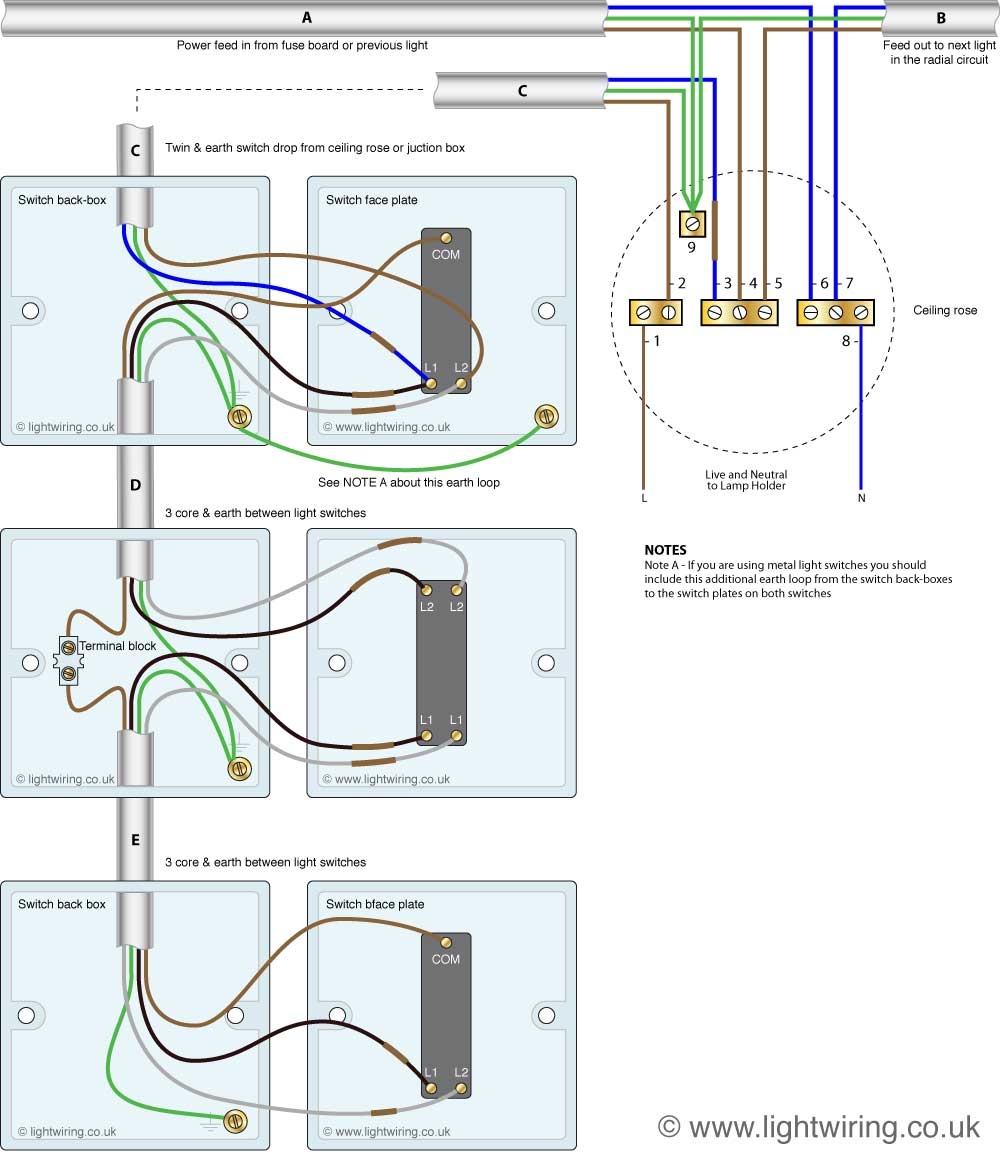

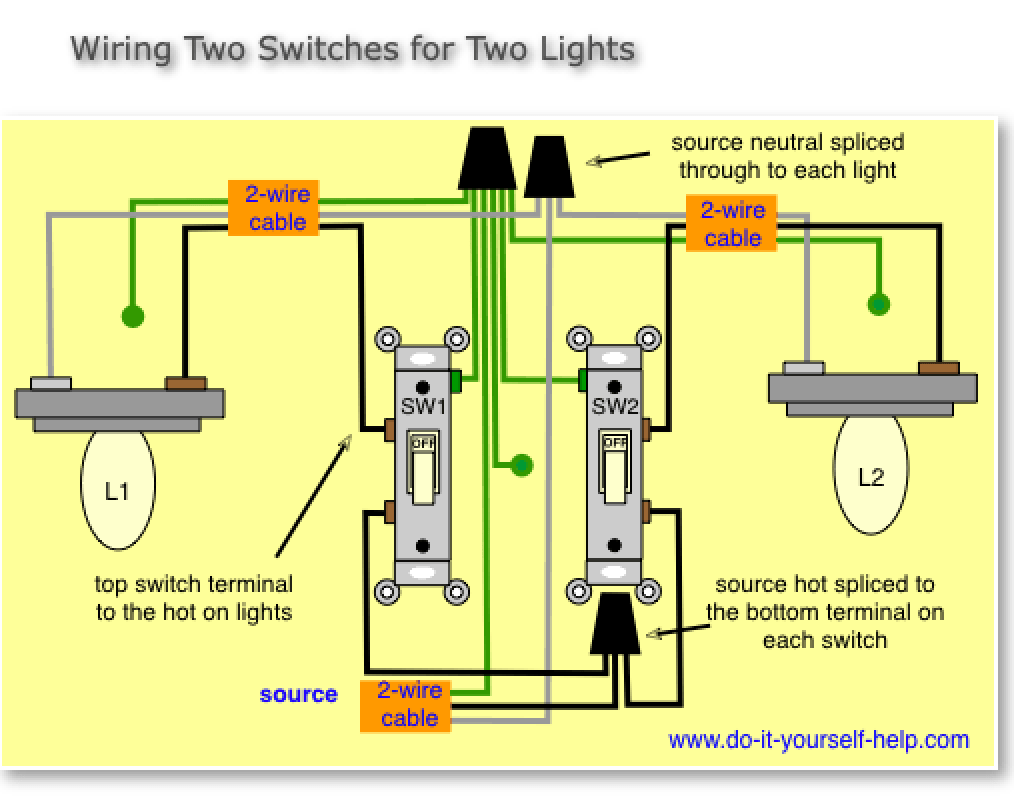

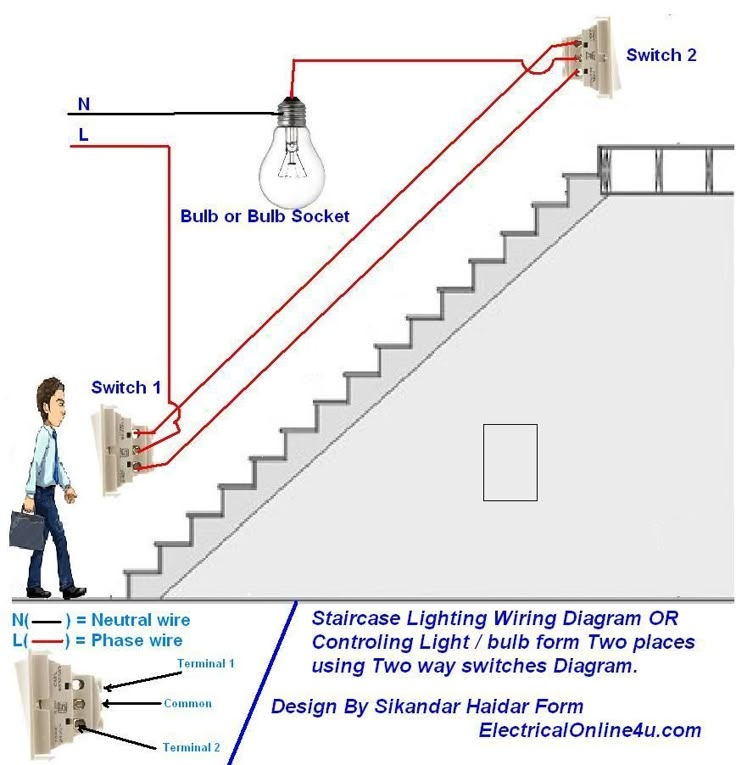

The wiring diagram for a two way light switch may seem a bit confusing at first, but once you understand how the circuit works, it becomes much simpler. The key components of the circuit include two switches, a light fixture, and the power source. Each switch has three terminals – a common terminal, a traveler terminal, and a ground terminal.

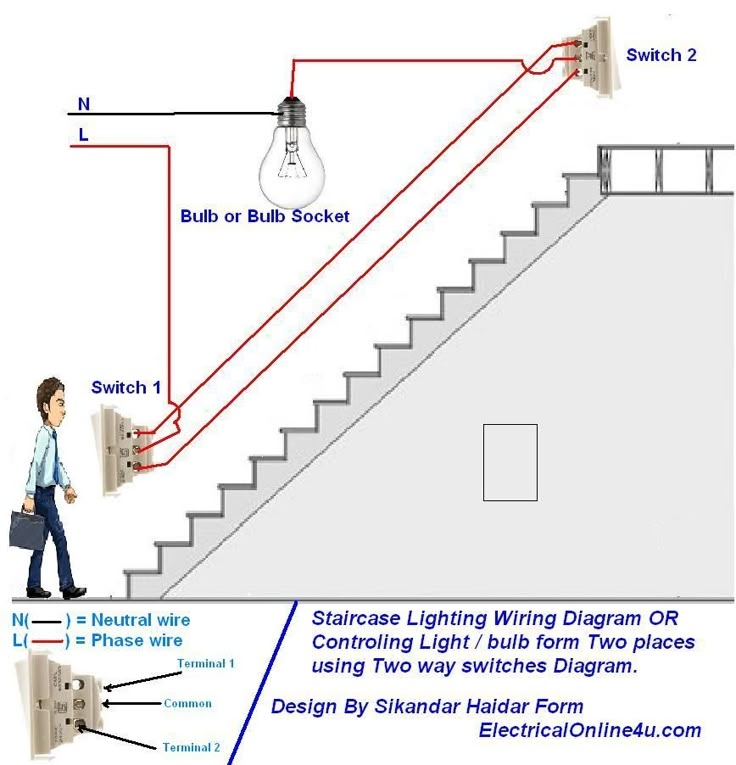

2 Way Light Switch Wiring Diagram Nz (wireenginearchangels.z14.web.core.window…)
To wire a two way light switch, you will need to connect the common terminal of one switch to the hot wire coming from the power source. The common terminal of the other switch will be connected to the light fixture. The traveler terminals on both switches are then connected together with a wire, creating a loop that allows the switches to communicate with each other.
When one switch is in the up position, the other switch will need to be in the down position for the light to be off. When both switches are in the up or down position, the light will be on. This allows you to control the light from either location without having to go back and forth to the other switch.
It is important to follow the wiring diagram carefully and to turn off the power before attempting to wire a two way light switch. If you are unsure or uncomfortable working with electrical wiring, it is always best to consult a professional electrician.
In conclusion, understanding how to wire a two way light switch can be a useful skill to have for any homeowner. With the right tools and knowledge, you can easily install a two way switch to control your lights more conveniently. Just remember to always prioritize safety when working with electricity.
