When it comes to wiring a light switch and outlet together, it can seem like a daunting task. However, with the right tools and knowledge, you can easily complete this project. By following a wiring diagram and taking the necessary precautions, you can have both your light switch and outlet working in no time.
Before starting any electrical work, always make sure to turn off the power to the circuit you will be working on. This can be done by flipping the breaker switch in your electrical panel. It is also important to use a voltage tester to double-check that the power is indeed off before proceeding.

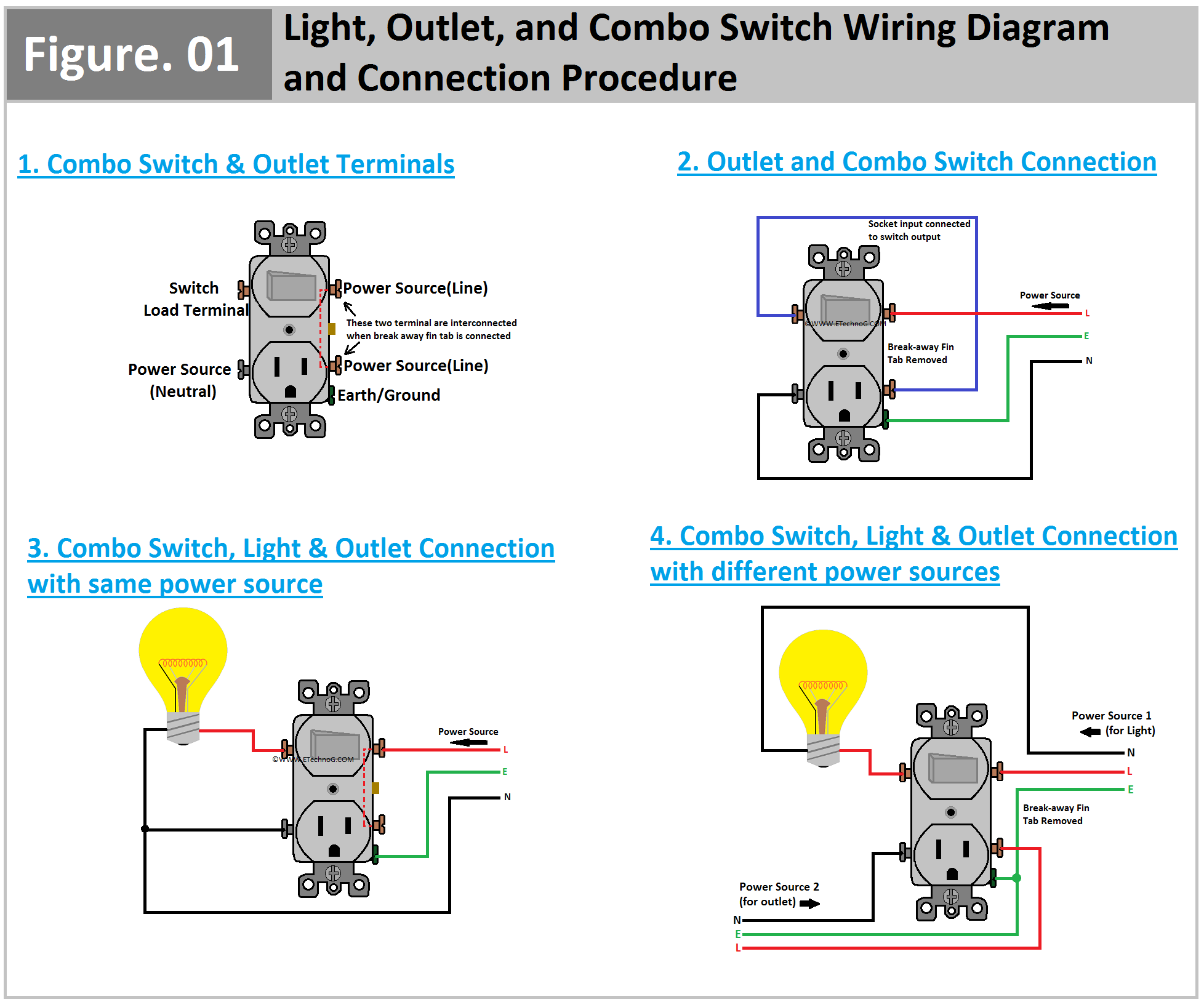

Hey In This Article We Are Going To See The Connection Of Combo Switch (in.pinterest.com)

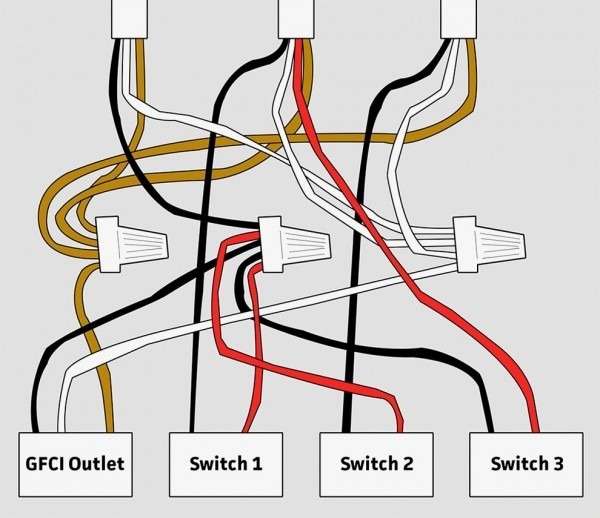

Wiring A Light Switch And Outlet Together Diagram
First, you will need to identify the wires in the switch box. The black wire is the hot wire that carries the electricity, the white wire is the neutral wire, and the bare copper wire is the ground wire. The light switch will have two brass screws and a green screw. The brass screws are for the black hot wire and the red wire, while the green screw is for the ground wire.
Next, you will need to connect the outlet. The outlet will have two brass screws, two silver screws, and a green screw. The black hot wire will connect to one of the brass screws, the white neutral wire will connect to one of the silver screws, and the bare copper wire will connect to the green screw for the ground.
Finally, you will need to connect the two devices together. To do this, you will need to connect the red wire from the light switch to the brass screw on the outlet. This will allow the light switch to control the outlet. Make sure to secure all connections with wire nuts and to properly ground the devices.
Once you have completed all the connections, you can turn the power back on and test the light switch and outlet to ensure they are working properly. If everything is working as it should, you have successfully wired a light switch and outlet together.
In conclusion, wiring a light switch and outlet together can be a straightforward process if you follow the proper steps and take the necessary precautions. By using a wiring diagram and understanding the basics of electrical work, you can easily complete this project and have a functional light switch and outlet in no time.
