When it comes to electrical work, one of the most common tasks is wiring a light switch. Whether you’re replacing an old switch or installing a new one, having a clear diagram can make the process much easier. Understanding how the wires should be connected can help prevent accidents and ensure that the switch works properly.
Before you begin, it’s important to turn off the power to the circuit you’ll be working on. This can be done by flipping the circuit breaker or removing the fuse that controls the switch. Once the power is off, you can start by removing the old switch and identifying the wires that are connected to it. Using a voltage tester can help confirm that the power is indeed off before proceeding.

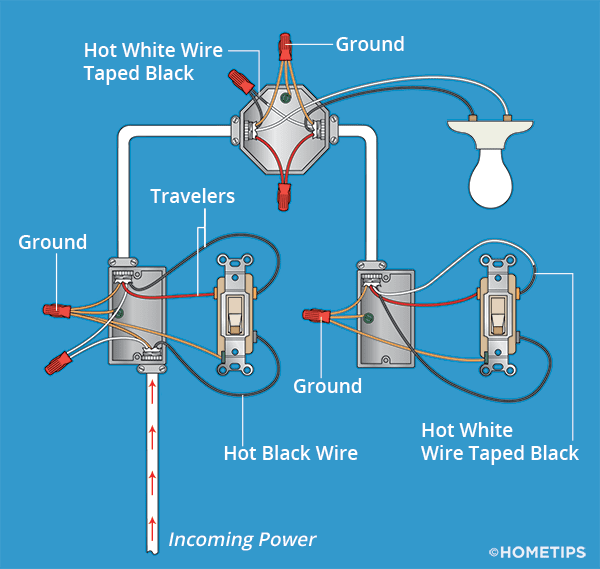

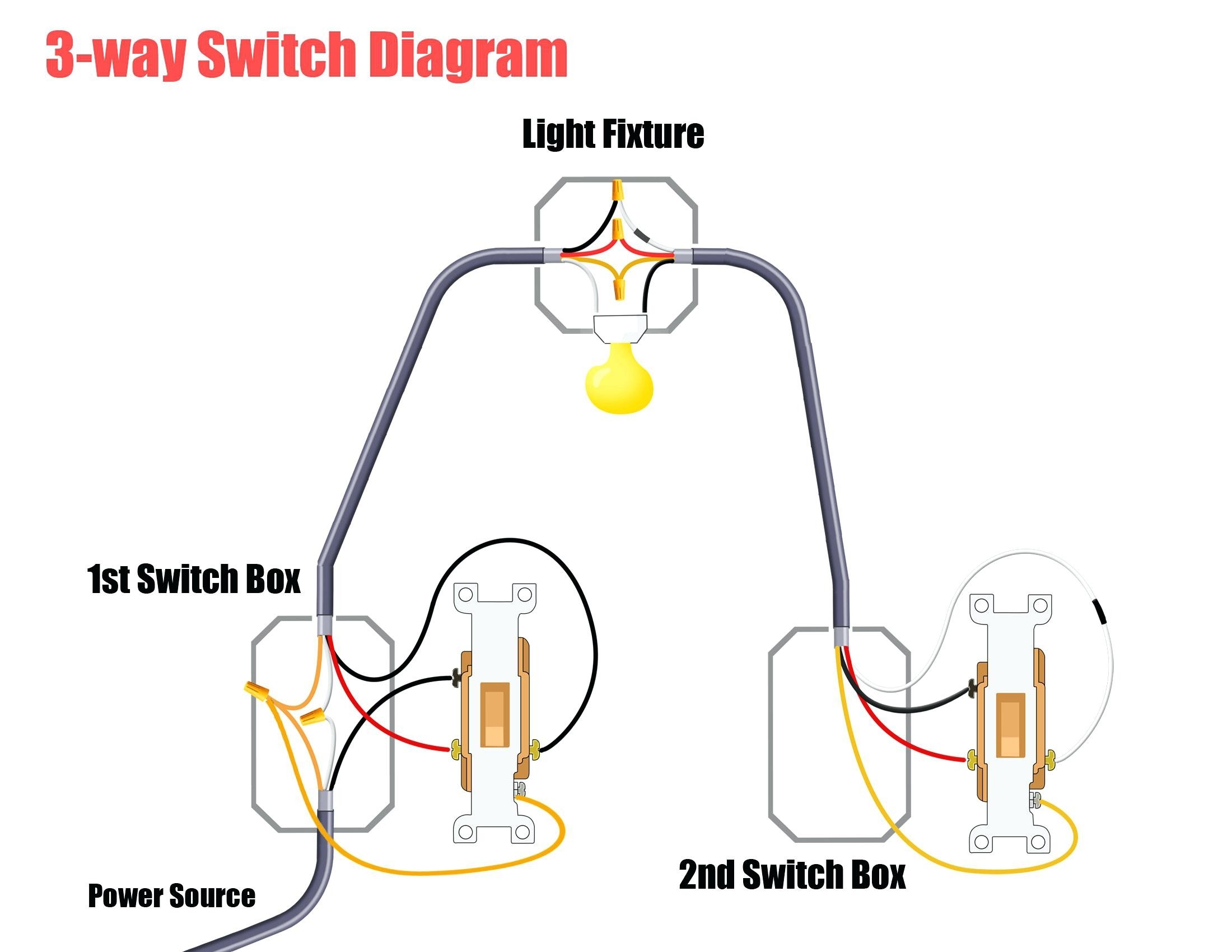

3 Way Gang Switch Wiring Diagram Wiring Switch Gang Box Fantastic 3 (www.wiringdiagramid.com)
Next, you’ll need to create a wiring diagram for the new switch. This diagram will show you which wires should be connected to each terminal on the switch. Typically, a light switch will have two black wires (one for power and one for the light), a white wire (neutral), and a ground wire (usually green or bare copper). Make sure to follow the manufacturer’s instructions for your specific switch.
Once you have your diagram in place, you can begin connecting the wires to the new switch. Start by connecting the ground wire to the green screw on the switch. Next, connect the white wire to the silver screw (this is the neutral wire). Finally, connect the two black wires to the brass screws (one on each side). Double-check your connections before securing the switch in place.
After the switch is securely installed, you can turn the power back on and test the switch to make sure it’s working properly. If the light doesn’t turn on, double-check your connections and make any necessary adjustments. It’s always a good idea to have a professional electrician inspect your work to ensure it meets safety standards.
Wiring a light switch may seem intimidating at first, but with the right tools and knowledge, it can be a straightforward task. By following a clear diagram and taking the proper precautions, you can successfully wire a light switch and improve the functionality of your home’s lighting system.
