When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A 4-wire trailer harness is a common setup for trailers with basic lighting needs. Understanding how to wire a 4-wire trailer can help ensure that your trailer lights work properly and you can tow your trailer safely.
Whether you are connecting a trailer for towing a boat, camper, or other cargo, having a 4-wire trailer harness simplifies the lighting setup. By following a wiring diagram for a 4-wire trailer, you can easily connect the necessary wires to power the trailer lights, turn signals, and brake lights.

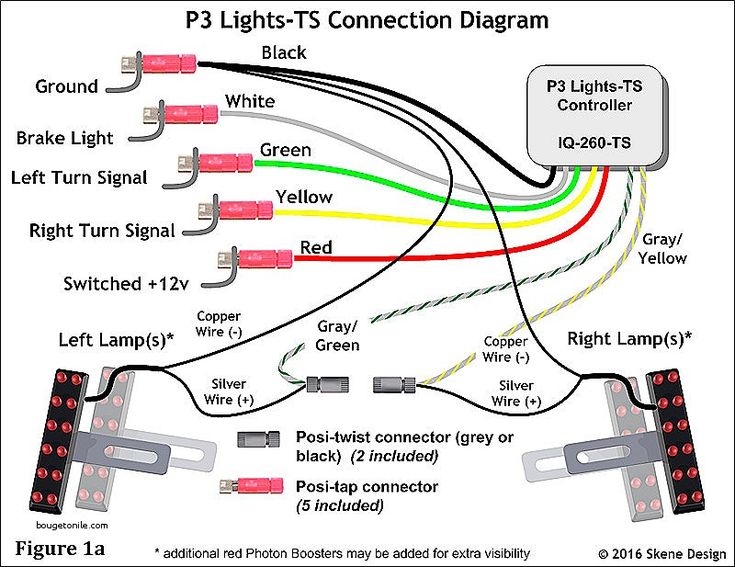

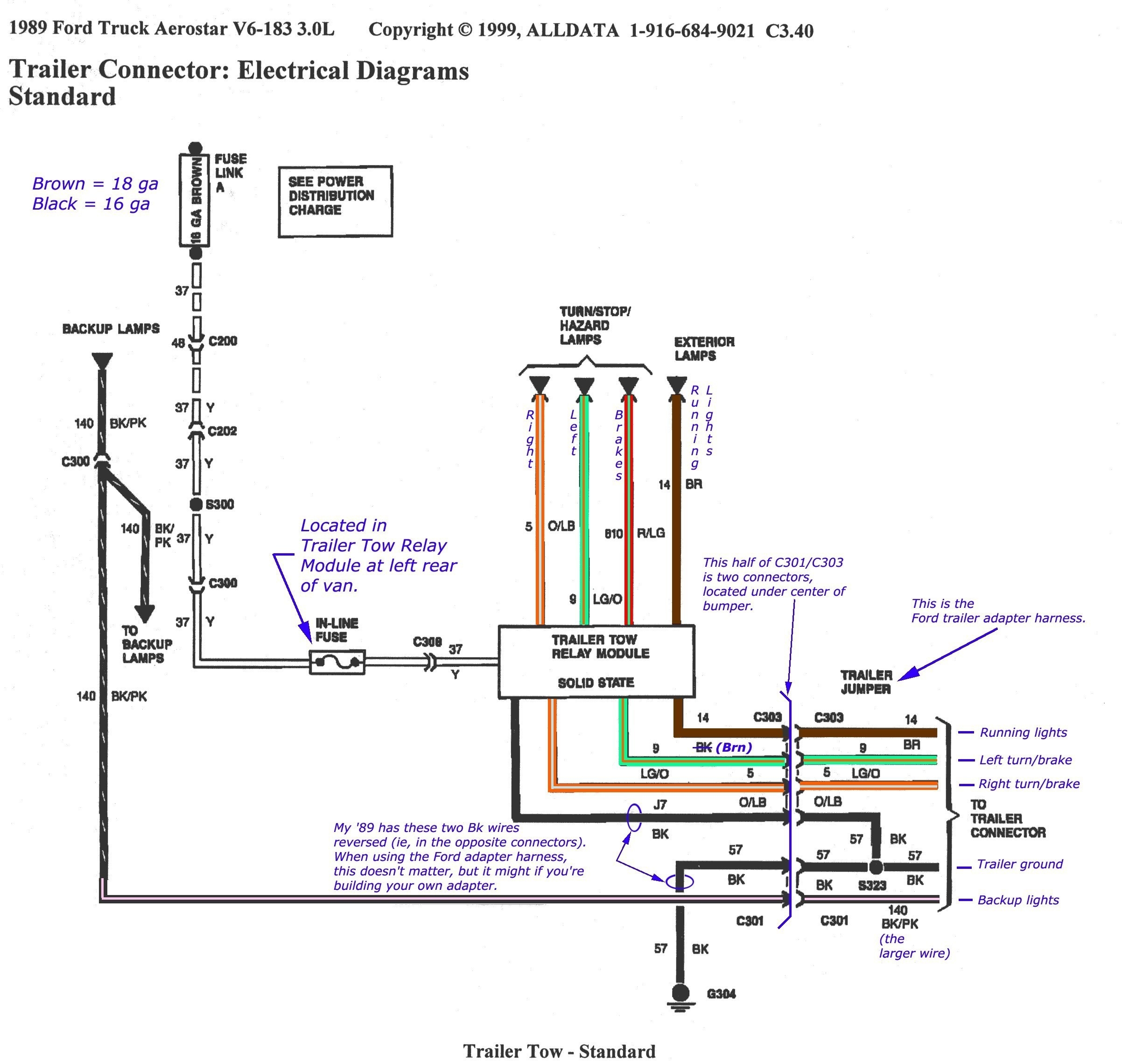

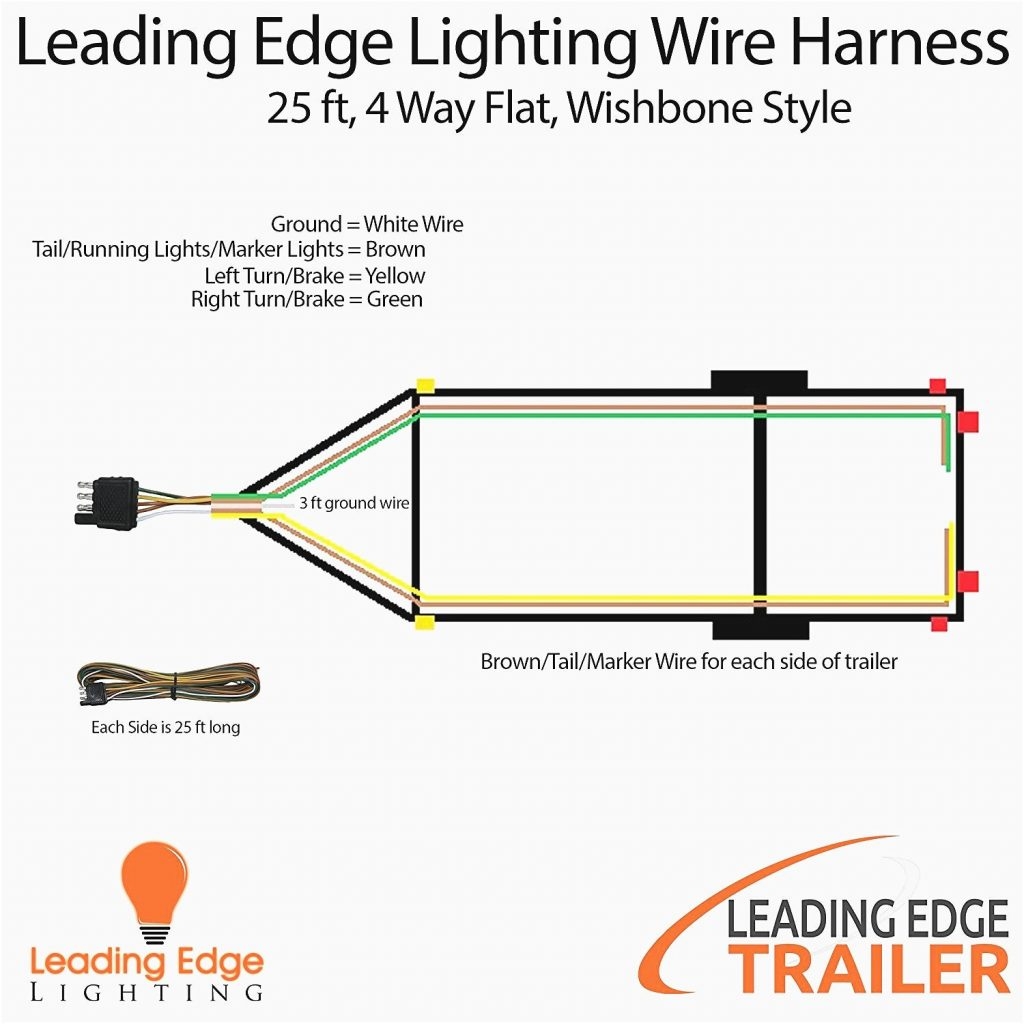

Trailer Hitch Wiring Harness Diagram (www.chanish.org)

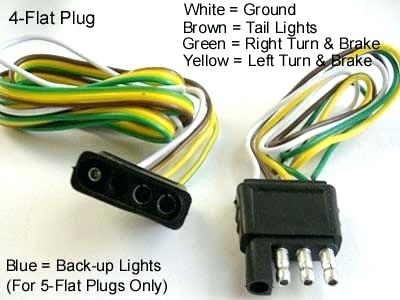

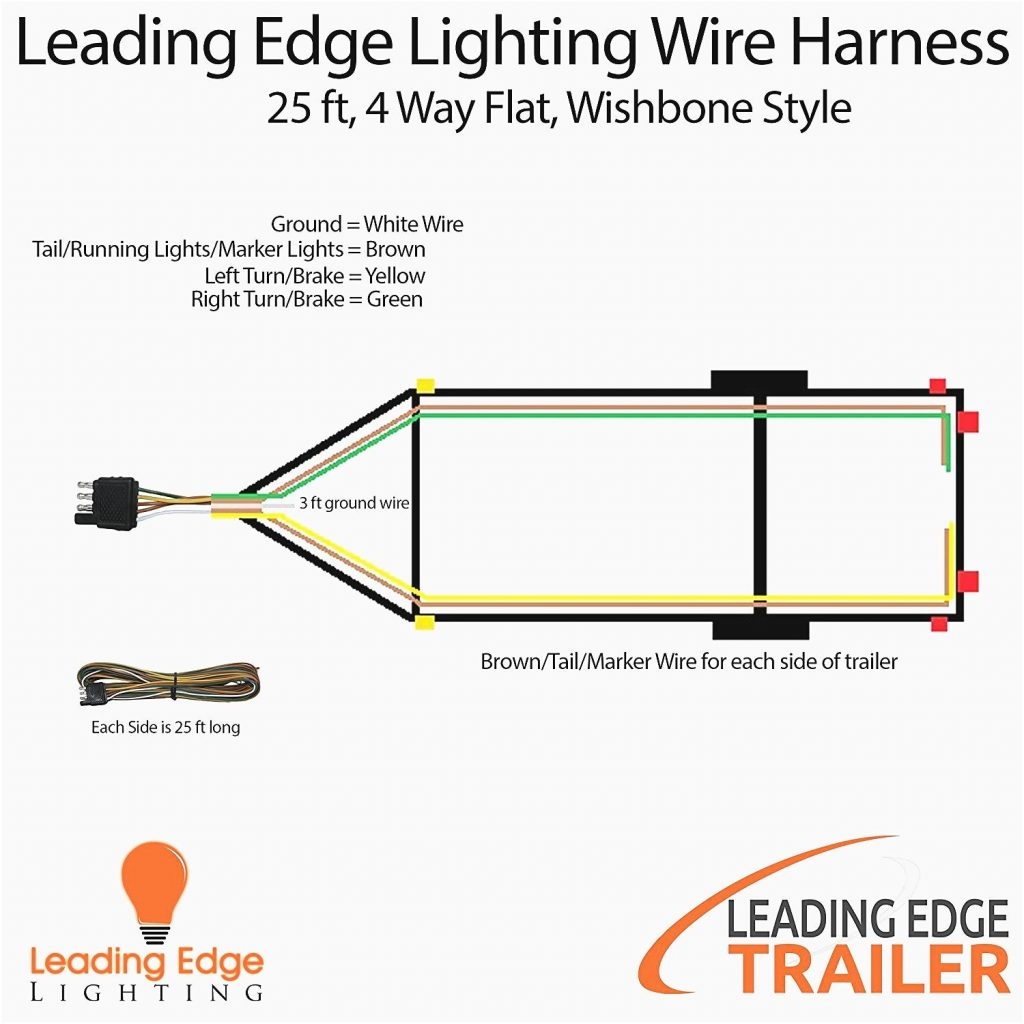

First, identify the color-coded wires on both the trailer harness and the vehicle’s wiring system. The standard 4-wire trailer harness consists of a white wire for ground, brown wire for tail lights, yellow wire for left turn and brake lights, and green wire for right turn and brake lights. Make sure to match the corresponding wires for a proper connection.
Next, connect the white wire to the vehicle’s ground wire, ensuring a solid connection to the frame of the vehicle. Then, connect the brown wire to the vehicle’s tail light wire, the yellow wire to the left turn and brake light wire, and the green wire to the right turn and brake light wire. Use wire connectors or soldering for a secure connection.
After connecting the wires, test the trailer lights to ensure they are functioning correctly. Have someone assist you by operating the vehicle’s turn signals and brakes while you check the trailer lights. Make any necessary adjustments to the wiring if the lights are not working as expected.
In conclusion, wiring a 4-wire trailer is a straightforward process that can be done with basic tools and a wiring diagram. By following the color-coding and proper connections, you can ensure that your trailer lights work properly and you can tow your trailer safely. Regularly check and maintain the wiring to prevent any issues while towing your trailer.
