When it comes to installing a single light switch in your home, having a clear wiring diagram is essential to ensure the job is done correctly and safely. Understanding the wiring layout will help you connect the wires properly and avoid any potential hazards. In this article, we will discuss the basic wiring diagram for a single light switch.
Before you begin the installation process, it is important to turn off the power to the circuit to prevent any accidents. You can do this by flipping the circuit breaker or removing the fuse that controls the light switch. Once the power is off, you can proceed with the wiring process.

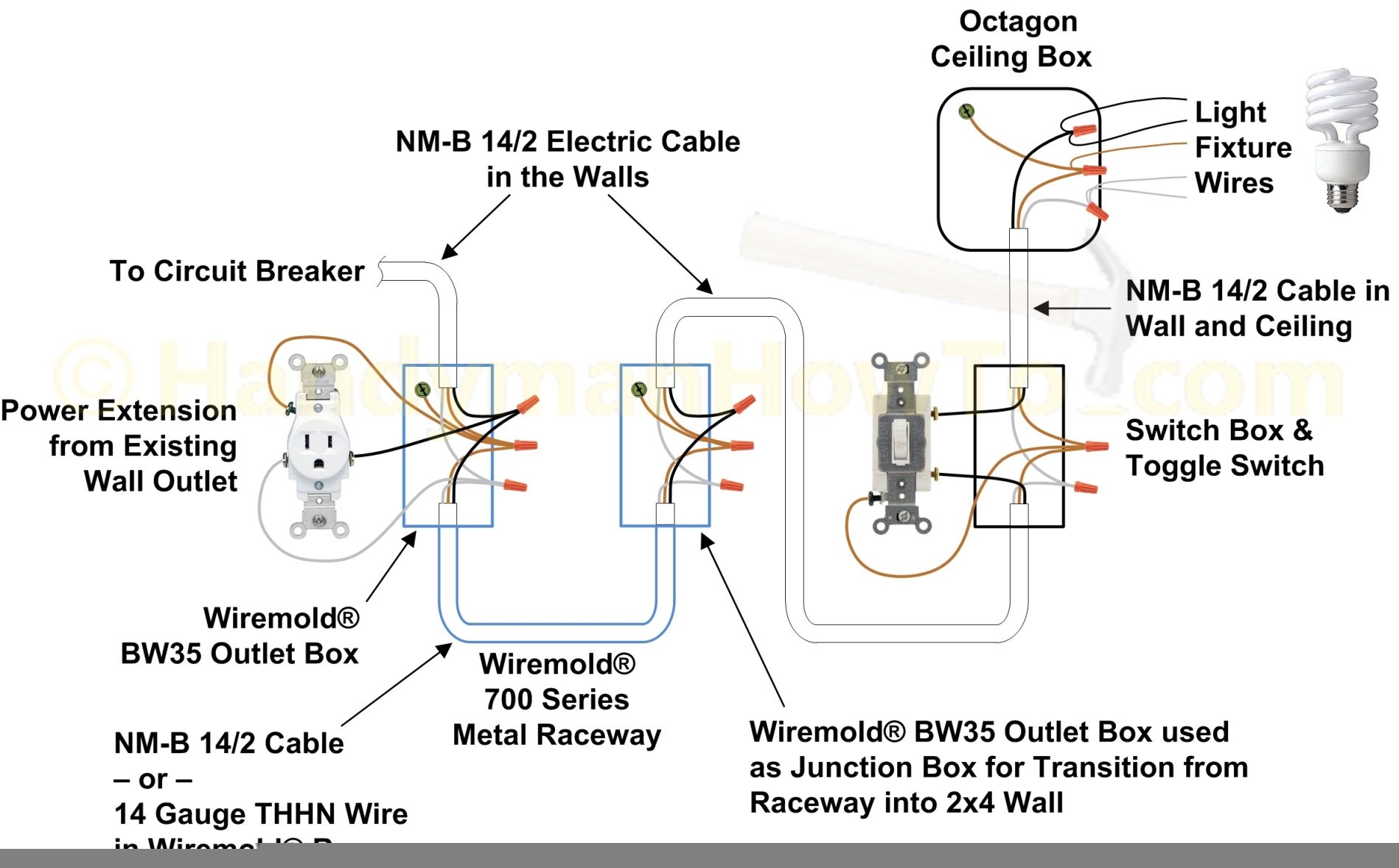

How To Wire A Light Switch Electrical Switch Wiring Diagram Wiring (2020cadillac.com)
Start by identifying the wires in the wall box. Typically, you will find three wires – a black wire (hot), a white wire (neutral), and a bare copper wire (ground). The black wire is the hot wire that carries the electrical current, the white wire is the neutral wire that completes the circuit, and the bare copper wire is the ground wire that provides safety.
Next, you will need to connect the wires to the single light switch. The black wire should be connected to the brass or black screw terminal on the switch, the white wire should be connected to the silver or light-colored screw terminal, and the bare copper wire should be connected to the green screw terminal for grounding purposes.
Once the wires are securely attached to the switch, you can mount the switch back into the wall box and secure it with screws. After that, you can turn the power back on and test the light switch to ensure it is working properly. If the light does not turn on, double-check the wiring connections and troubleshoot any issues that may arise.
In conclusion, having a clear wiring diagram for a single light switch is crucial for a successful installation. By following the proper steps and understanding the wiring layout, you can safely and effectively install a light switch in your home. Remember to always turn off the power before working on any electrical components and consult a professional if you are unsure about any steps in the process.
