Installing a three way light switch can be a convenient and energy-efficient way to control the lighting in your home. By using two separate switches to control a single light, you can turn it on or off from different locations in the room. This type of setup is commonly used in hallways, staircases, and large rooms where multiple entrances are present.
When wiring a three way light switch, it’s important to follow the correct diagram to ensure proper functionality. The diagram typically consists of two switches, a power source, and the light fixture. The switches are labeled as “Switch 1” and “Switch 2”, with the power source connected to Switch 1 and the light fixture connected to Switch 2.

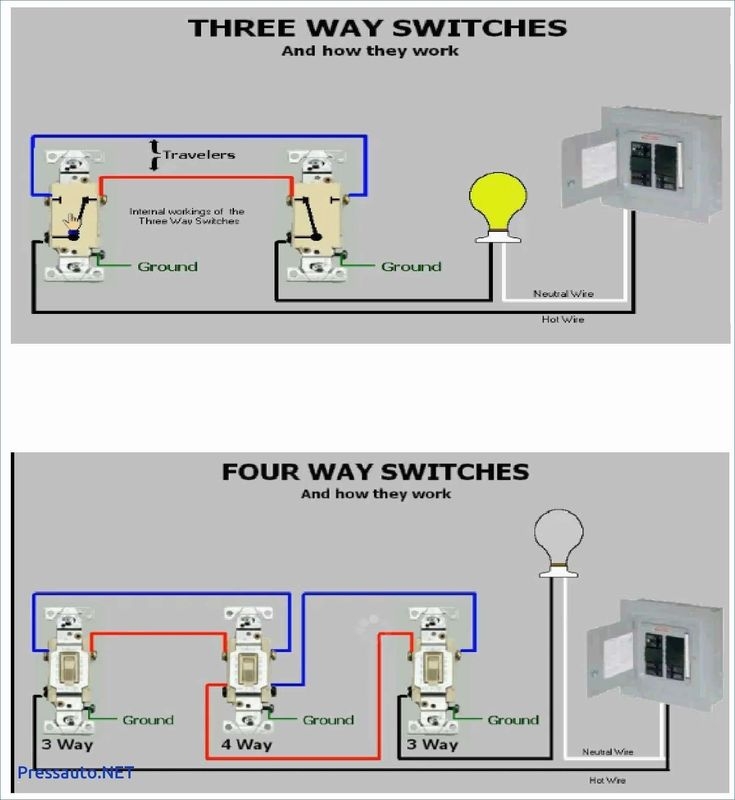

Old Style 3 Way Switch Wiring Diagram Light Switches Electri (kubuntue8blibrary.z21.web.core.windows.n…)
To wire the switches correctly, you will need to connect the common terminal of Switch 1 to the power source, the traveler terminal of Switch 1 to the common terminal of Switch 2, and the traveler terminal of Switch 2 to the light fixture. This configuration allows you to control the light from both switches, regardless of their positions.
It’s essential to double-check your wiring before turning on the power to avoid any potential hazards. You can use a voltage tester to ensure that the connections are secure and that the switches are functioning correctly. If you’re unsure about any step in the process, it’s best to consult a professional electrician for assistance.
Overall, wiring a three way light switch can be a simple and straightforward task if you follow the proper diagram and take the necessary precautions. With the right tools and knowledge, you can enjoy the convenience and versatility of having multiple switches to control your lighting. Remember to always prioritize safety when working with electrical components to prevent accidents and ensure a successful installation.
In conclusion, wiring a three way light switch is a practical and efficient way to enhance the lighting control in your home. By following the correct diagram and guidelines, you can easily install this setup and enjoy the convenience it offers. Whether you’re updating an existing switch or installing a new one, proper wiring is crucial for smooth operation. Take the time to plan and execute the wiring carefully to achieve the desired results.
