When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A 4 plug wiring diagram for trailers is a common setup that allows for basic lighting and brake functions. Understanding how to wire your trailer correctly can make all the difference when hitting the road with your towed load.

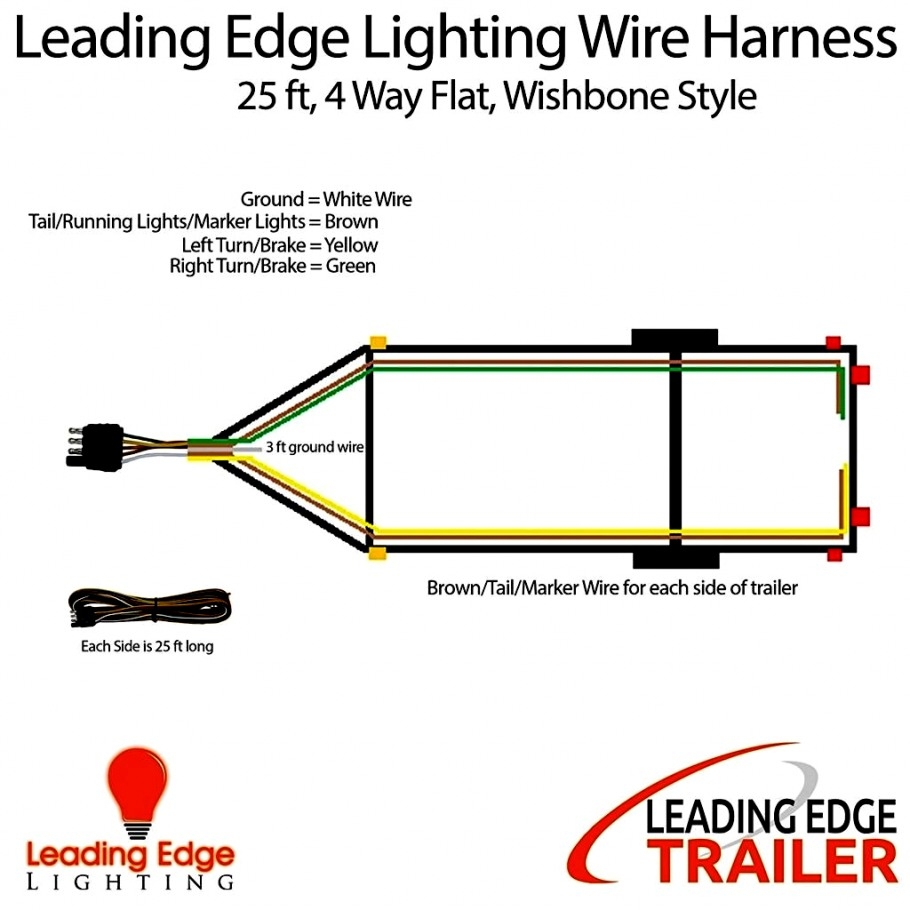

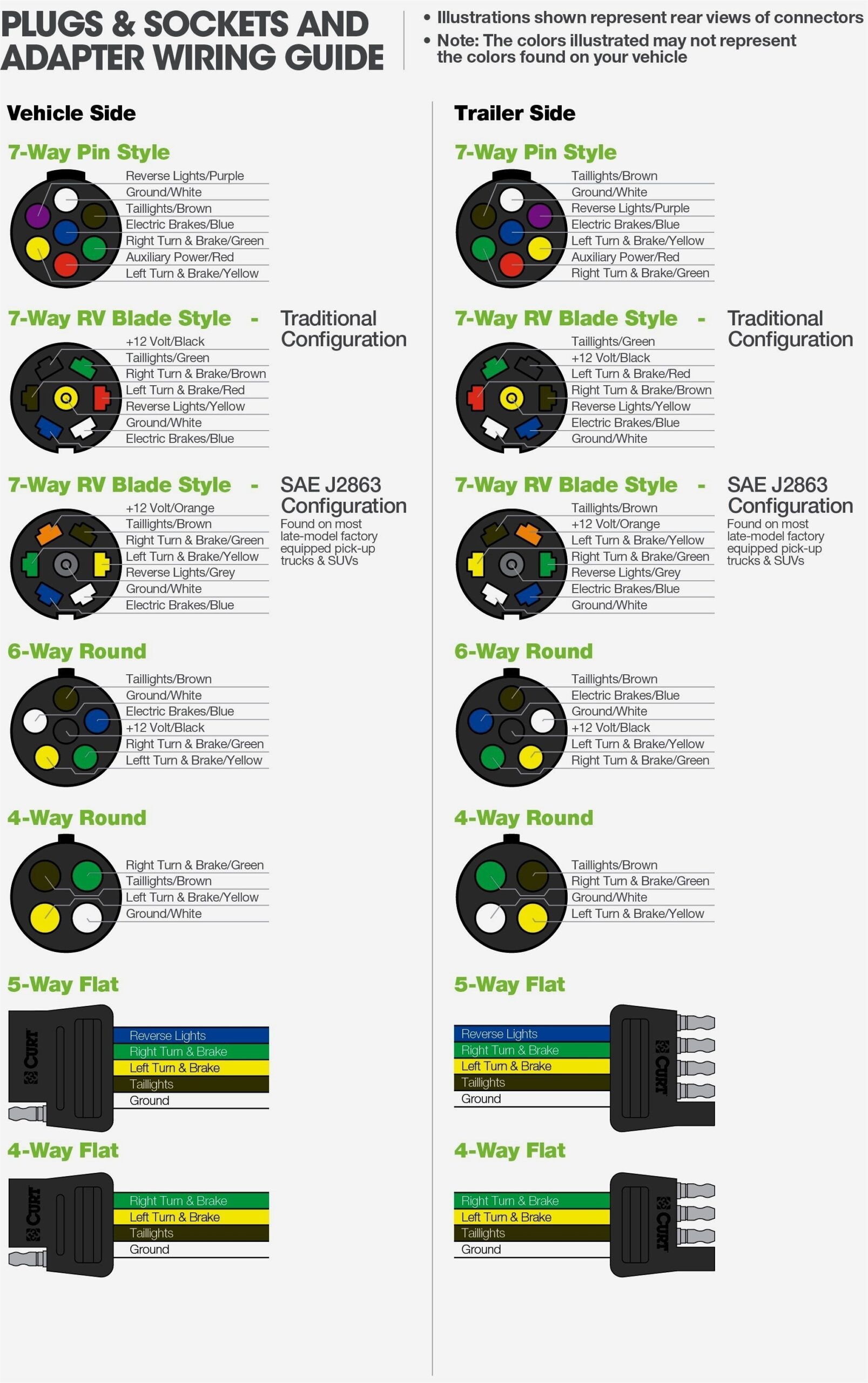

With a 4 plug wiring diagram, you will typically have a white wire for ground, a brown wire for tail lights, a yellow wire for left turn/brake lights, and a green wire for right turn/brake lights. This setup is simple and straightforward, making it easy to troubleshoot any issues that may arise.

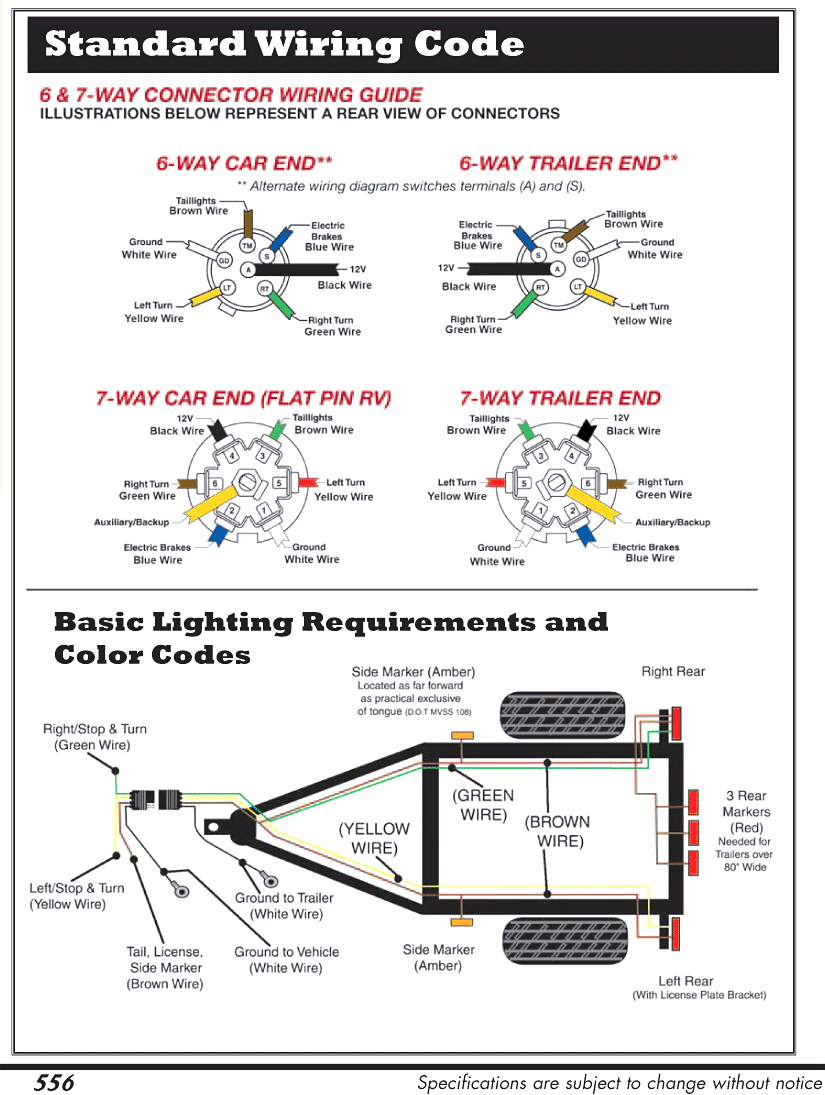

Ez Loader Boat Trailer Wiring Diagram Wiring Diagram (www.autowiringdiagram.net)
It’s important to follow the diagram carefully and ensure that each wire is connected to the correct terminal on both the trailer and vehicle side. Using a circuit tester can help verify connections and ensure that everything is working properly before hitting the road.
When wiring your trailer, it’s crucial to use the appropriate gauge wire for the size of your trailer and the load you will be towing. Using the wrong wire gauge can lead to electrical issues and potentially pose a safety hazard. Always consult the manufacturer’s guidelines for wiring specifications.

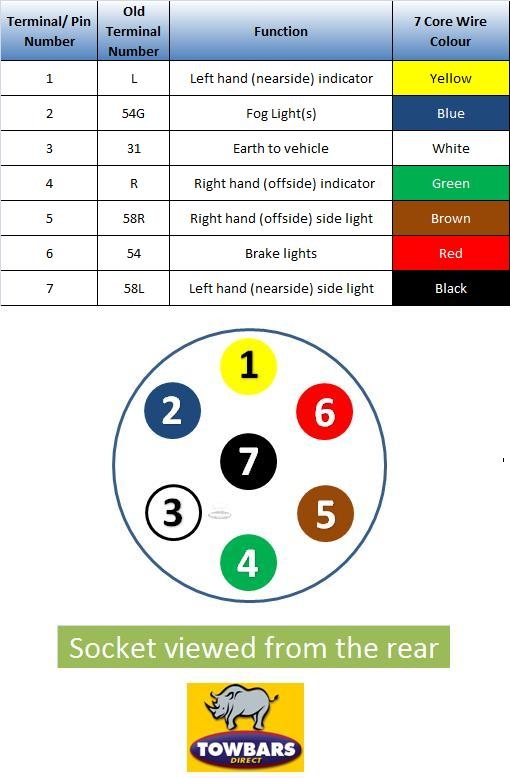

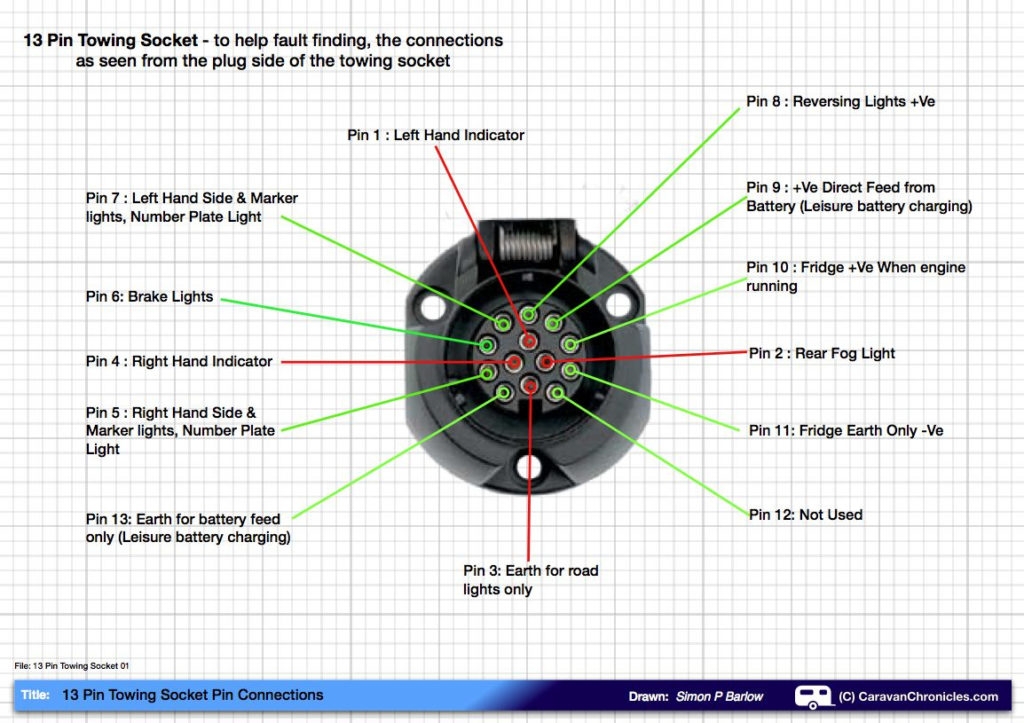

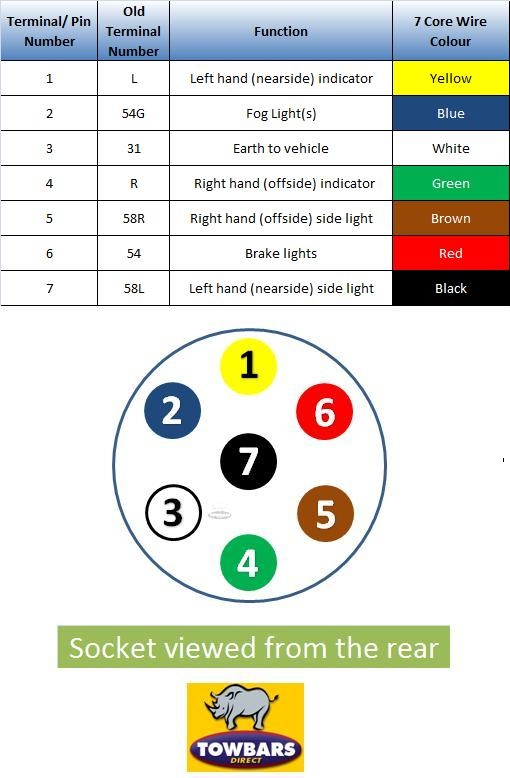

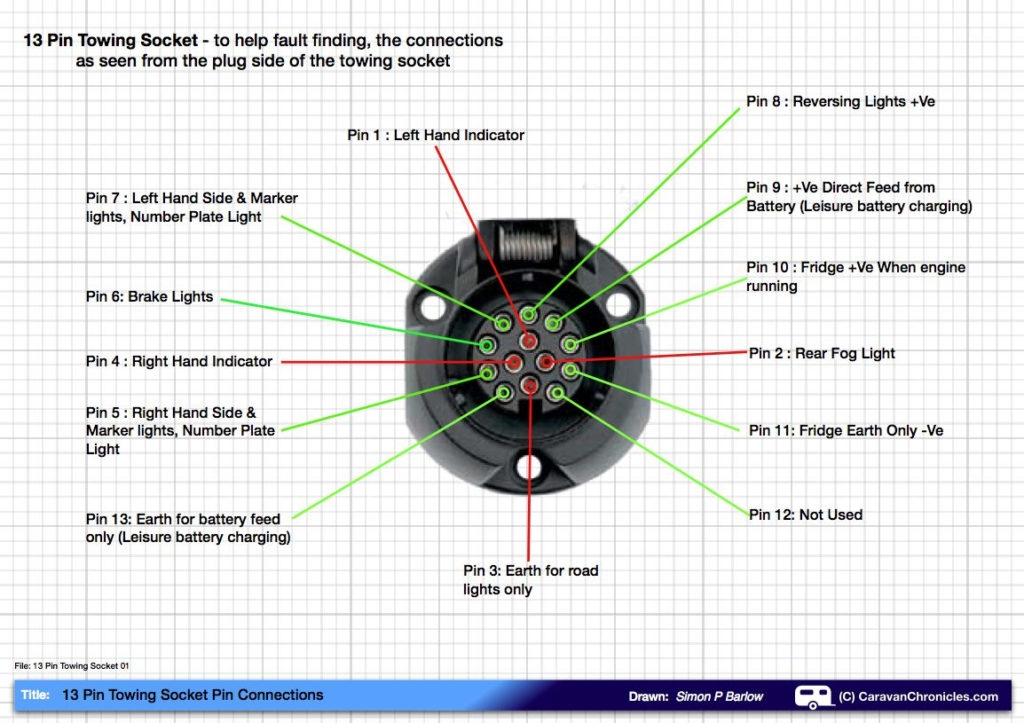

In addition to the basic lighting functions, some trailers may also require additional wiring for features such as electric brakes or reverse lights. These setups may vary from the standard 4 plug diagram, so be sure to consult the specific instructions for your trailer model.
By following a 4 plug wiring diagram for your trailer, you can ensure that your lights, brakes, and other electrical components function properly while towing. Proper wiring not only keeps you safe on the road but also ensures that you are compliant with towing regulations. Take the time to wire your trailer correctly, and you’ll have peace of mind knowing that your towed load is secure.
