When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. One of the most common types of trailer wiring is the 4 wire trailer plug. Understanding how to properly wire this type of plug can make all the difference when it comes to connecting your trailer to your vehicle.

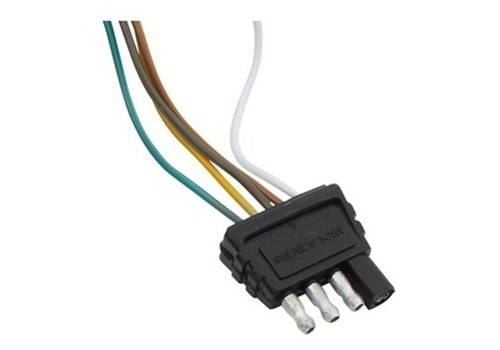

Before diving into the wiring diagram, it’s important to understand the purpose of each wire in the 4 wire trailer plug. These wires typically consist of a white wire for ground, a brown wire for tail lights, a yellow wire for left turn/brake lights, and a green wire for right turn/brake lights. Knowing the function of each wire will help you correctly connect them to your trailer.

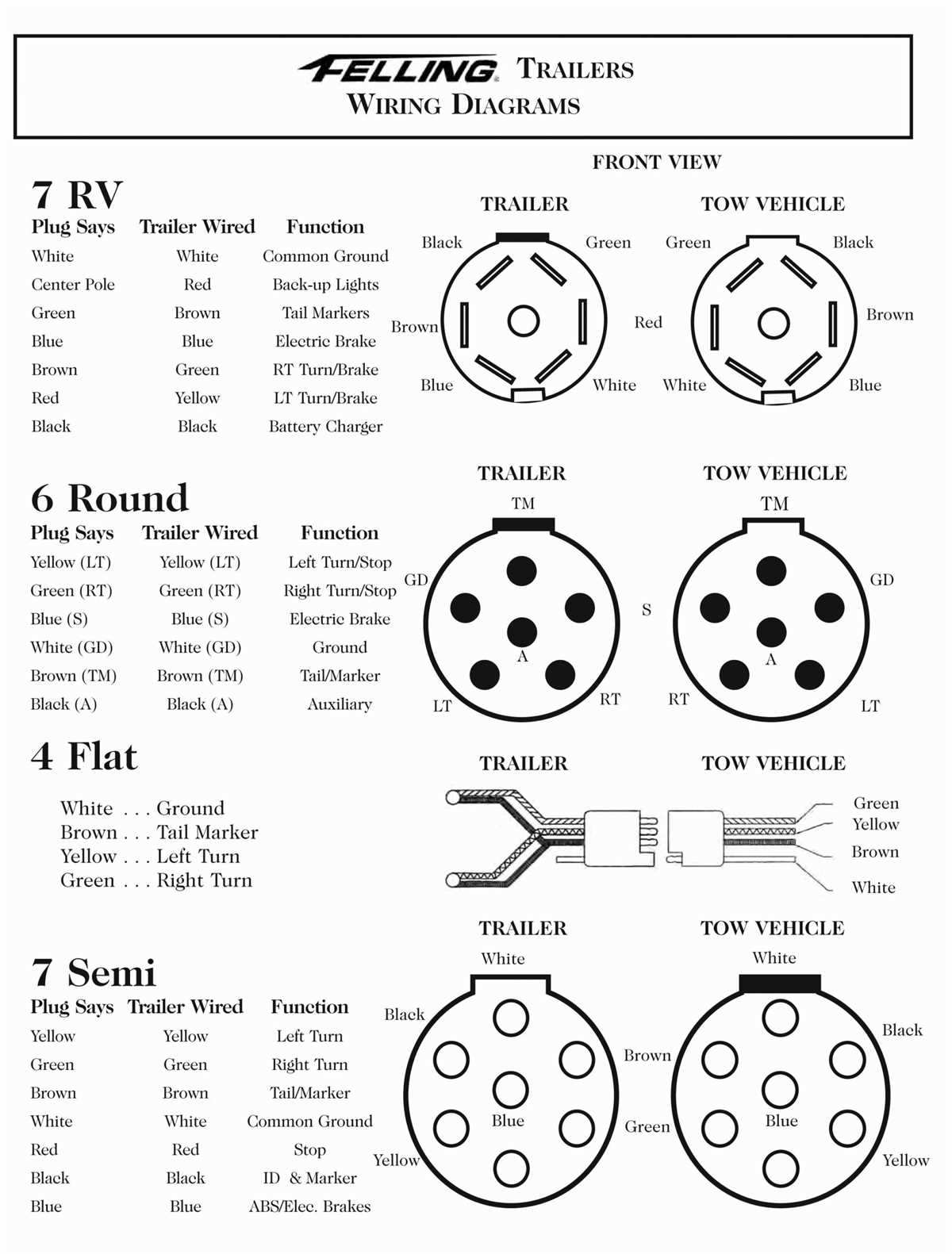

How To Wire A 7 Wire Trailer Plug Step By Step Guide (elecdiags.com)
4 Wire Trailer Plug Wiring Diagram
Now that you understand the purpose of each wire in the 4 wire trailer plug, let’s take a look at the wiring diagram. The white wire is connected to the ground terminal, the brown wire is connected to the tail lights terminal, the yellow wire is connected to the left turn/brake lights terminal, and the green wire is connected to the right turn/brake lights terminal. Following this diagram will ensure that your trailer lights function properly.
It’s important to note that when wiring your 4 wire trailer plug, you should use a wiring harness specifically designed for trailers. This will ensure that the connections are secure and will prevent any electrical issues while towing. Additionally, it’s a good idea to periodically check the wiring for any signs of wear or damage to prevent any safety hazards.
By understanding and following the 4 wire trailer plug wiring diagram, you can ensure that your trailer lights work correctly every time you hit the road. Proper wiring not only keeps you safe while towing but also ensures that other drivers can see your trailer clearly. So, take the time to learn the wiring diagram and always double-check your connections before setting off on your next towing adventure.
In conclusion, knowing how to wire a 4 wire trailer plug is essential for safe and efficient towing. By following the wiring diagram and using the right tools, you can ensure that your trailer lights function properly every time. So, next time you hook up your trailer, make sure to double-check your connections and hit the road with confidence!
