Air Conditioner Capacitor Wiring Diagram

When it comes to your air conditioner, the capacitor plays a crucial role in helping the unit start up and run efficiently. The capacitor stores and releases electrical energy to help the motor start and continue running smoothly. Understanding the wiring diagram for the capacitor can help you troubleshoot any issues that may arise with your air conditioning unit.

It is important to note that working with electrical components can be dangerous, and it is always best to consult a professional if you are unsure of what you are doing. However, having a basic understanding of the capacitor wiring diagram can help you communicate more effectively with a technician if needed.

Air Conditioner Capacitor Wiring (scheme360.net)

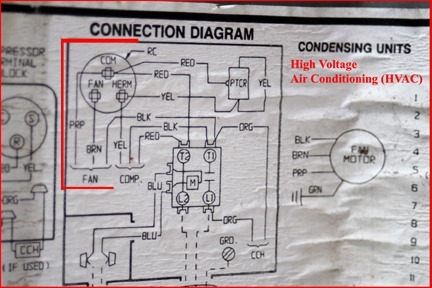

Typically, an air conditioner capacitor will have three terminals labeled “C” for common, “Herm” for compressor, and “Fan” for fan. The common terminal is usually connected to the ground or “C” wire from the power source. The “Herm” terminal is connected to the start winding of the compressor, while the “Fan” terminal is connected to the fan motor.

It is important to follow the wiring diagram provided by the manufacturer to ensure proper installation. Incorrect wiring can lead to the capacitor not functioning properly, which can cause the air conditioner to not start or run inefficiently. Always double-check your connections before turning the power back on.

Additionally, it is important to check the capacitor itself for any signs of damage or wear. A bulging or leaking capacitor should be replaced immediately to prevent any further damage to the air conditioner unit. Capacitors are relatively inexpensive and easy to replace, but it is important to ensure you are purchasing the correct replacement part.

In conclusion, understanding the wiring diagram for the air conditioner capacitor is essential for proper installation and maintenance of your unit. While it is always best to consult a professional for any electrical work, having a basic understanding can help you troubleshoot issues and communicate effectively with a technician. Remember to always prioritize safety when working with electrical components.
