Installing a ceiling fan is a great way to improve air circulation in your home while also adding a decorative touch to the room. However, it’s important to ensure the wiring is done correctly to avoid any safety hazards. Understanding the wiring connection diagram can help you install your ceiling fan effectively and safely.
Before you begin the installation process, make sure to turn off the power to the circuit where you will be installing the fan. This will prevent any accidents or electric shocks during the wiring process. It’s also important to gather all the necessary tools and materials, including a voltage tester, wire strippers, and wire connectors.

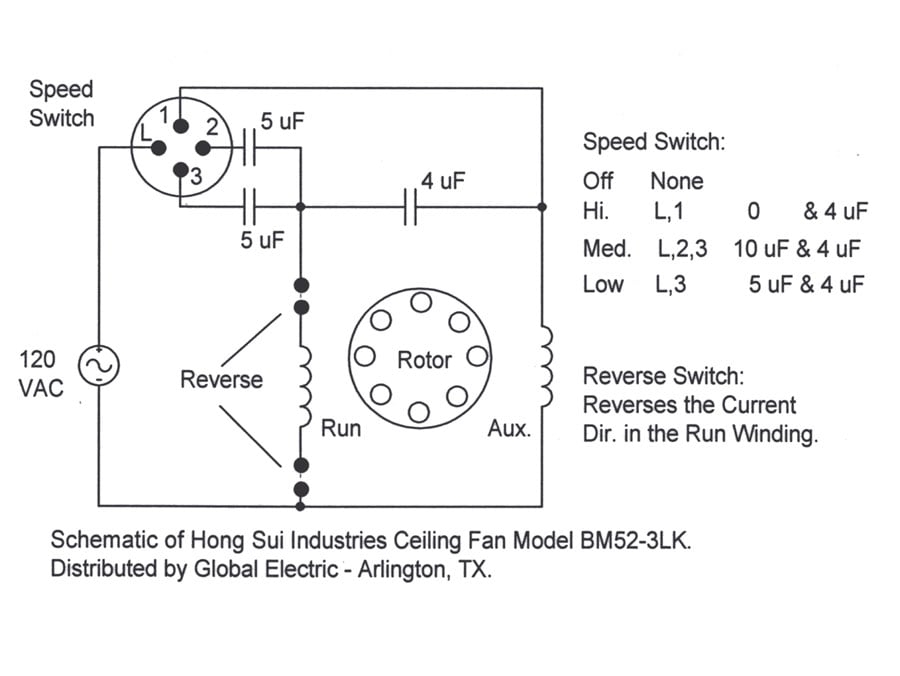

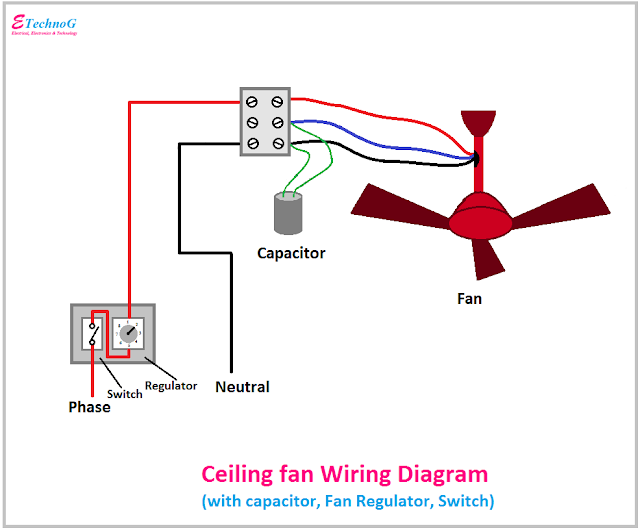

Ceiling Fan Wiring Diagram With Capacitor Fan Regulator ETechnoG (www.etechnog.com)

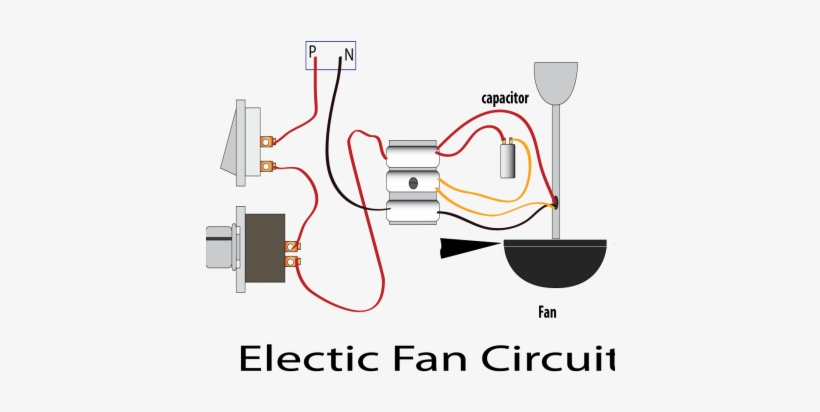

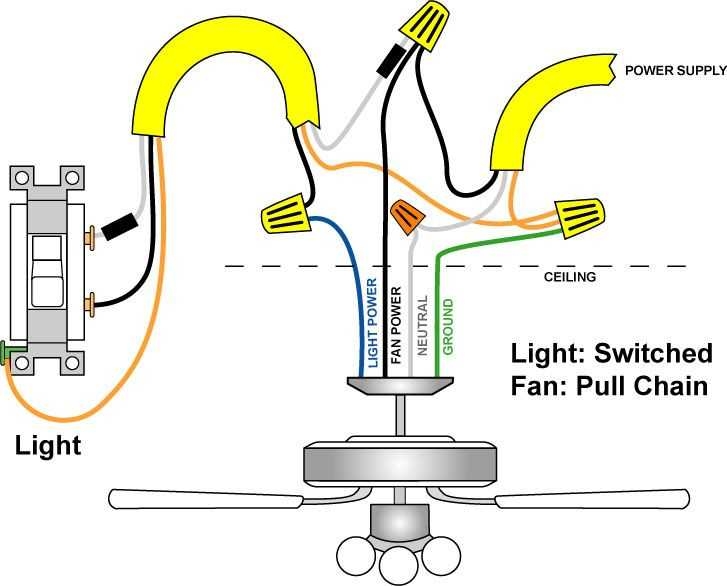

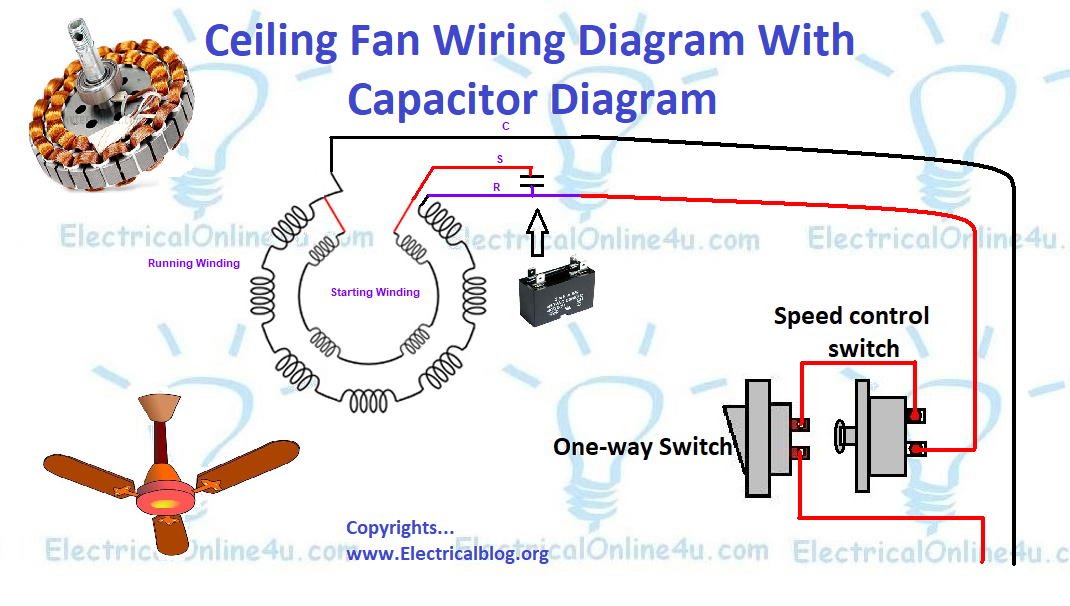

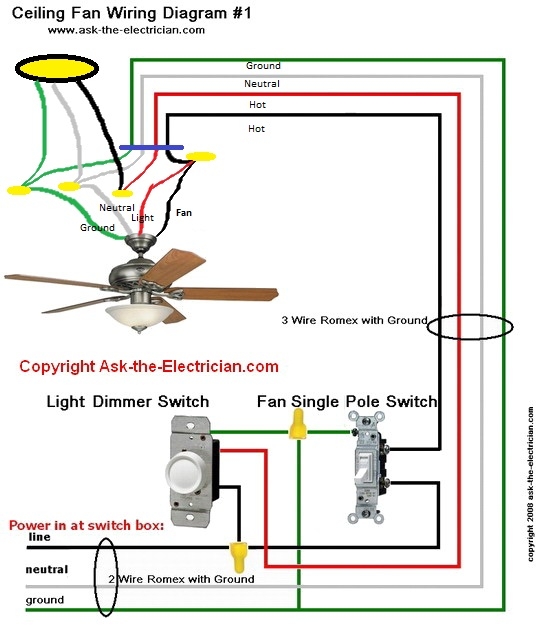

When looking at the wiring connection diagram for your ceiling fan, you will typically see three wires – the black (hot) wire, the white (neutral) wire, and the green or bare copper (ground) wire. The black wire is for the fan motor, the white wire is for the fan light, and the green or bare copper wire is for grounding the fan.
Connect the black wire from the ceiling fan to the black wire from the ceiling, the white wire from the fan to the white wire from the ceiling, and the green or bare copper wire from the fan to the ground wire from the ceiling. Make sure to secure each connection with wire connectors to ensure a safe and reliable connection.
Once you have made all the necessary connections, carefully tuck the wires into the electrical box and secure the fan to the ceiling according to the manufacturer’s instructions. After everything is securely in place, turn the power back on and test the fan to make sure it is working properly.
By following the wiring connection diagram for your ceiling fan, you can ensure a safe and effective installation process. If you are unsure about any step of the wiring process, it’s always best to consult a professional electrician to avoid any potential hazards. Enjoy your newly installed ceiling fan and the improved air circulation it brings to your home!
