When it comes to wiring a three way switch, it can be a bit confusing for those who are not familiar with electrical work. However, with the right instructions and diagrams, it can be a simple task to accomplish. A three way switch allows you to control a light or set of lights from two different locations, making it a convenient option for larger rooms or stairways.

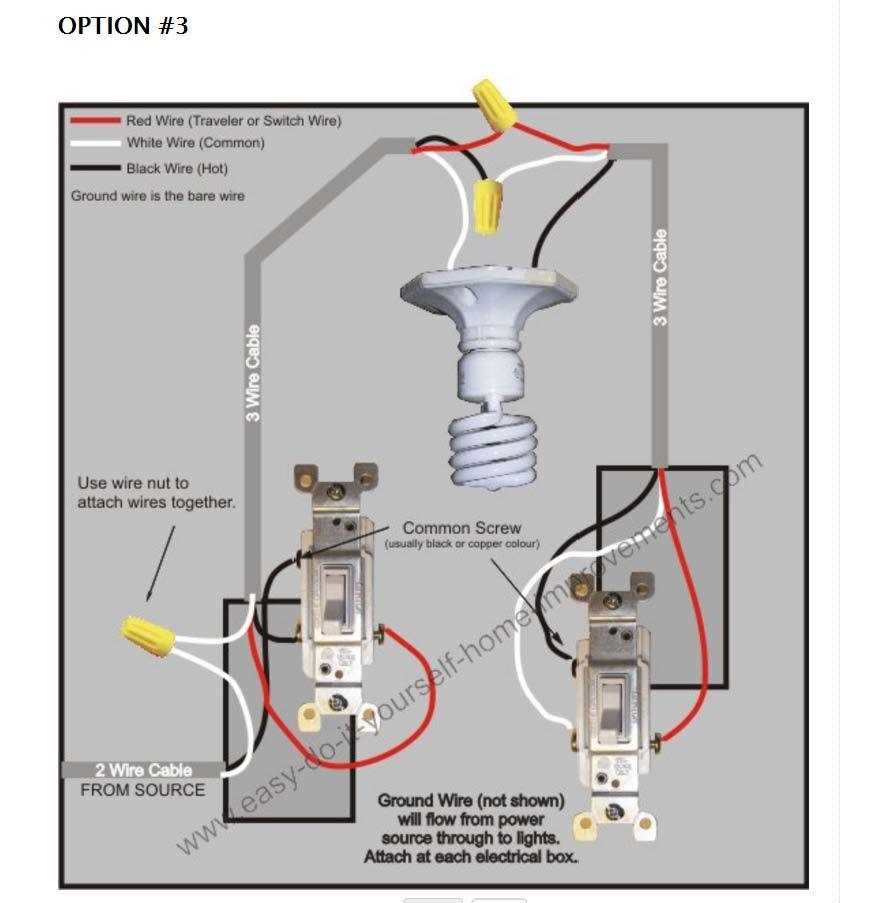

Understanding the wiring diagram is essential before starting the installation process. A three way switch has three terminals, which are labeled as “common,” “traveler,” and “ground.” The common terminal is usually a darker color and is where the power source is connected. The traveler terminals are interchangeable and are where the switches are connected to each other.

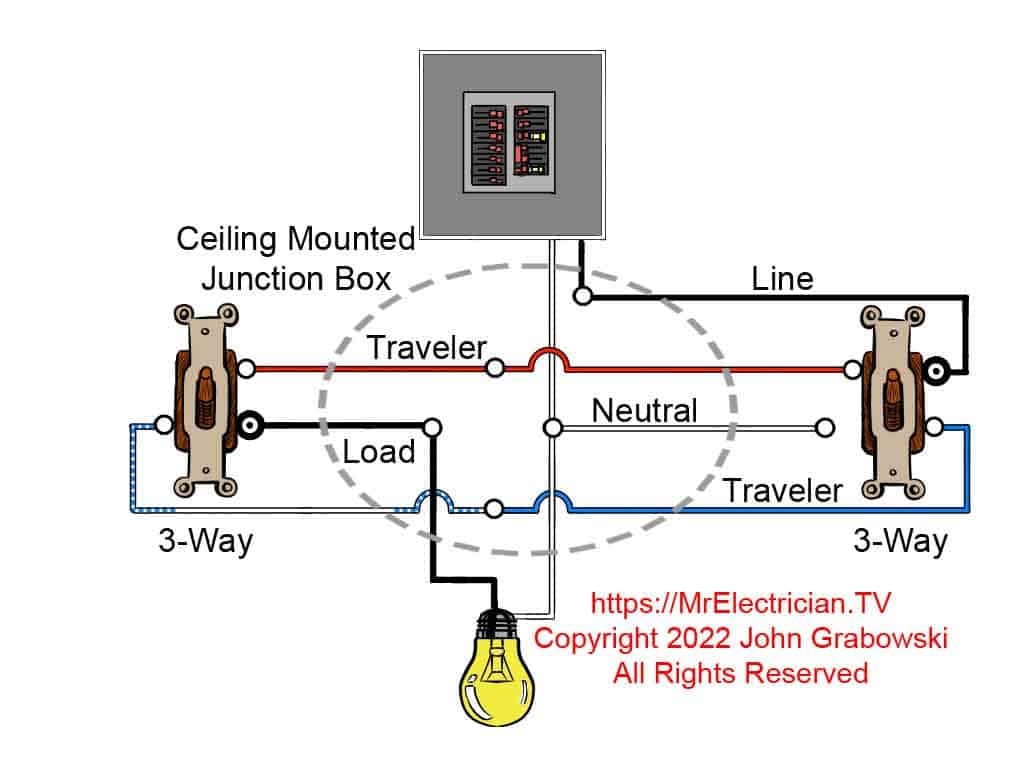

Ceiling Fan 3 Way Switch Wiring Diagram Printable Form Templates And (projectopenletter.com)

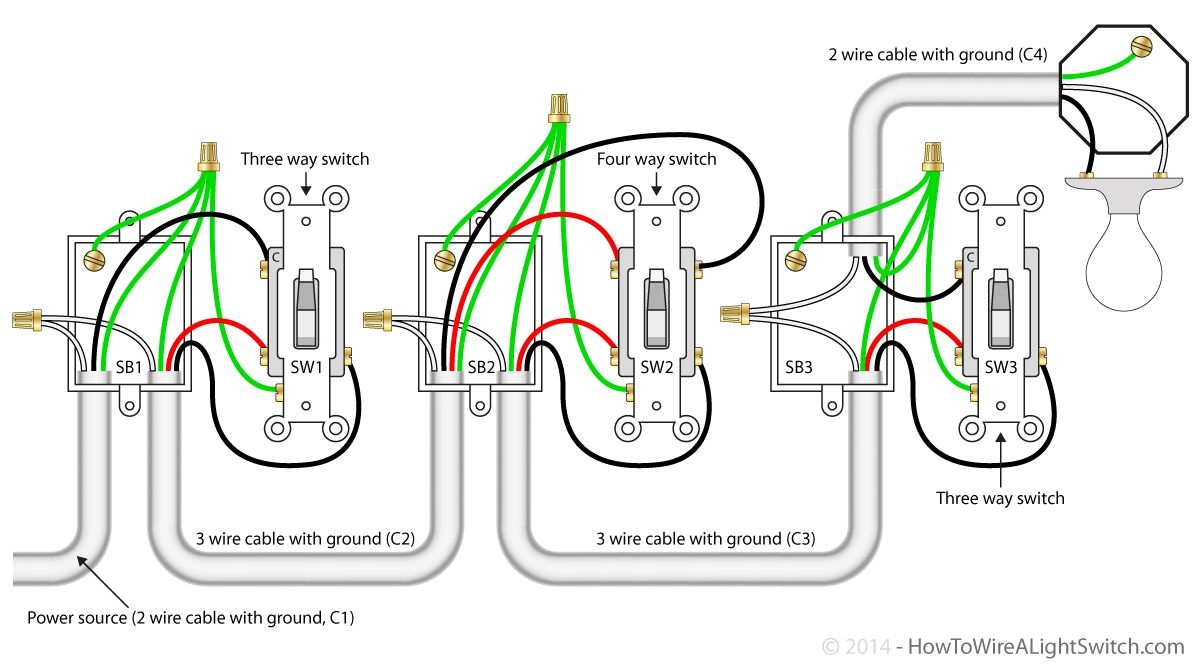

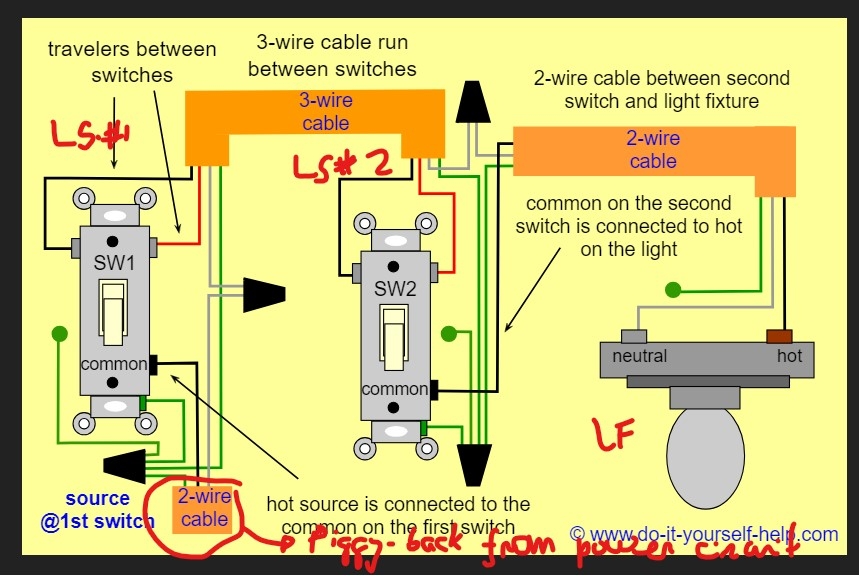

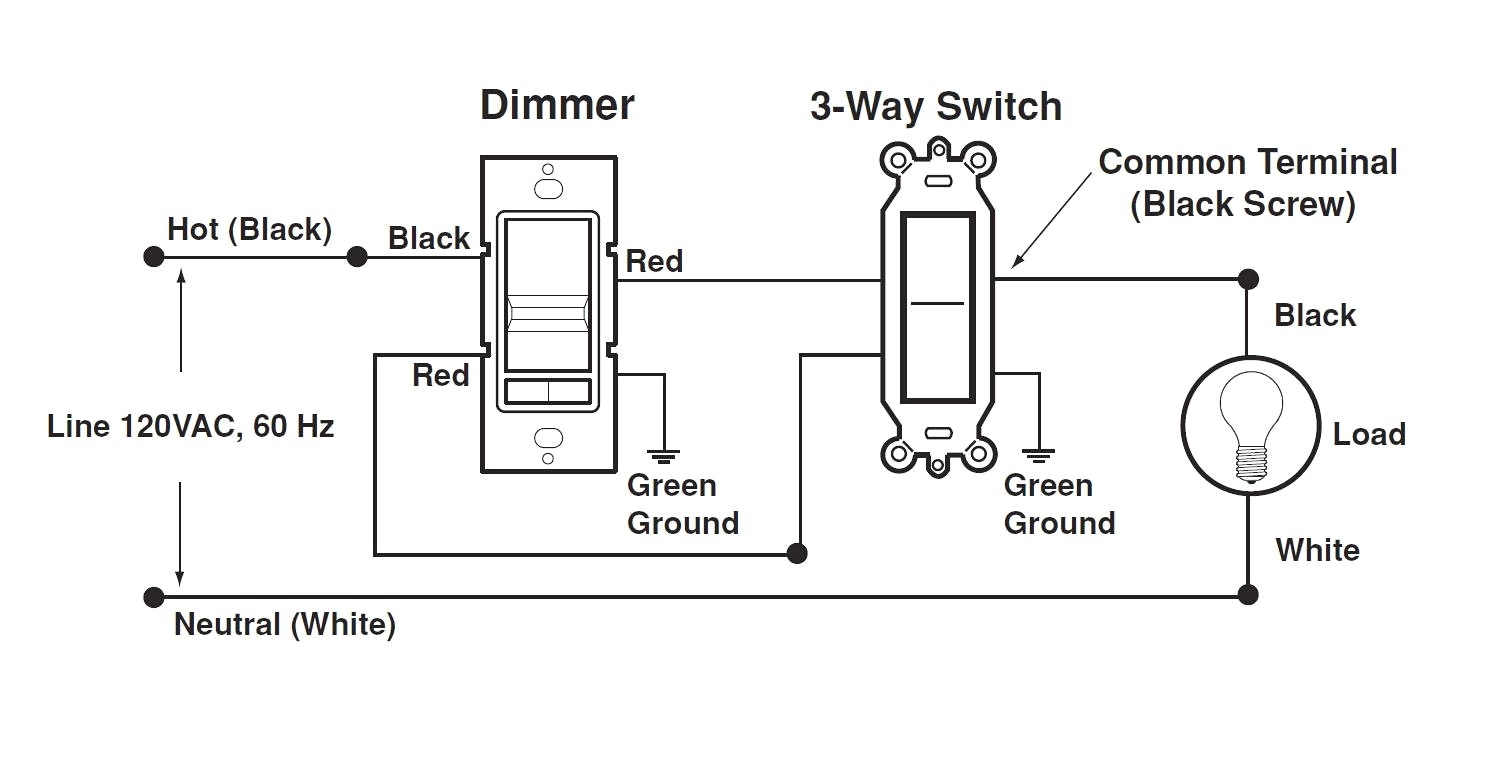

Start by turning off the power to the circuit at the breaker box before beginning any work. Then, identify the hot wire and connect it to the common terminal of the first switch. Next, connect the two traveler wires to the traveler terminals of the first switch. Run a 3-wire cable between the two switches, connecting the traveler wires to the traveler terminals of the second switch. Finally, connect the load wire to the common terminal of the second switch to complete the circuit.
It is important to follow the wiring diagram carefully to ensure that the circuit is properly connected and functions correctly. If you are unsure about any step of the process, it is recommended to consult a professional electrician to avoid any safety hazards.
Once the wiring is complete, turn the power back on and test the switches to make sure they are working properly. If the lights do not turn on or there are any issues with the circuit, double-check the connections and refer to the wiring diagram for troubleshooting.
In conclusion, wiring a three way switch can be a manageable project with the right instructions and attention to detail. By following the wiring diagram and taking the necessary precautions, you can successfully install a three way switch in your home. Remember to always prioritize safety when working with electricity and seek professional help if needed.
