When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A 4-pin trailer wiring diagram is a standard way to connect your trailer lights to your vehicle, allowing you to signal when you are turning, braking, or reversing. By understanding the wiring diagram, you can ensure that your trailer lights work properly and that you are following all necessary regulations.

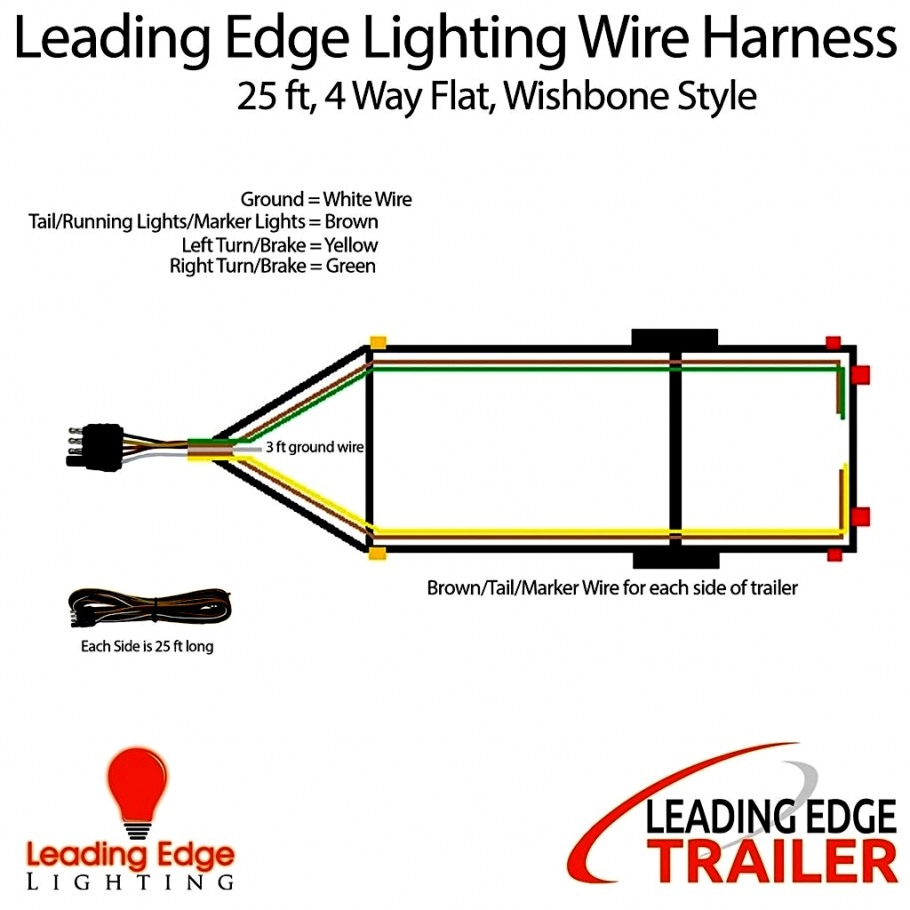

Whether you are towing a small utility trailer or a larger camper, having a 4-pin wiring system is a common setup that is easy to install and use. The diagram typically includes connections for the left turn signal, right turn signal, brake lights, and ground wire. By following the diagram, you can easily connect your trailer lights to your vehicle and be ready to hit the road safely.

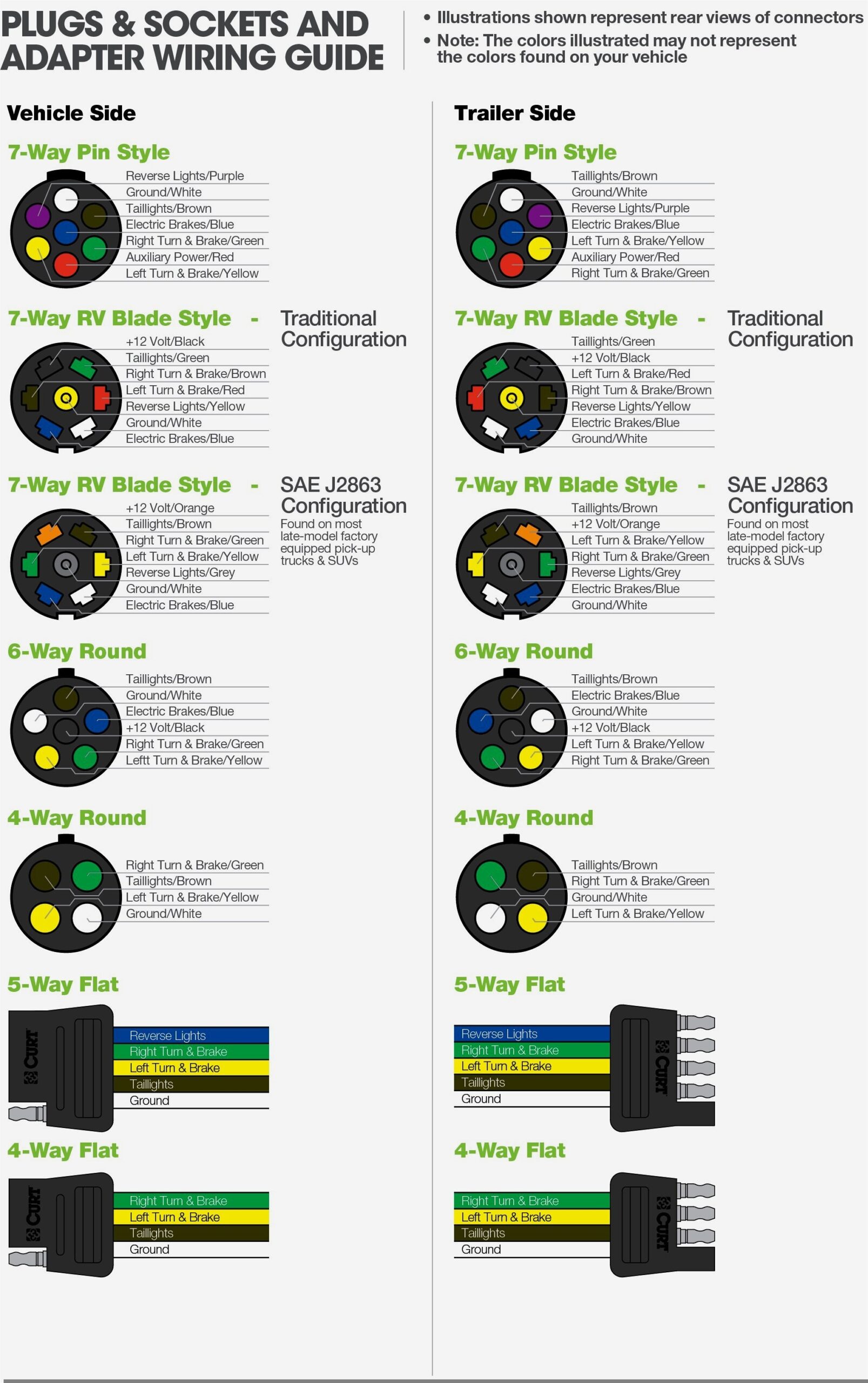

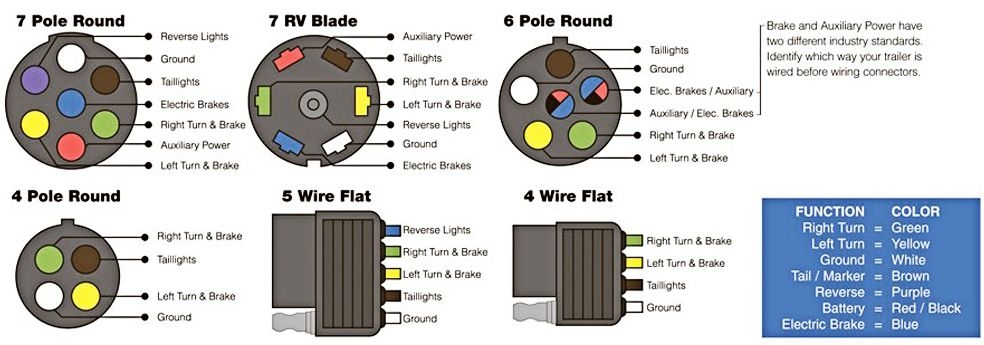

Connect Your Car Lights To Your Trailer Lights The Easy Way Trailer (www.pinterest.com)

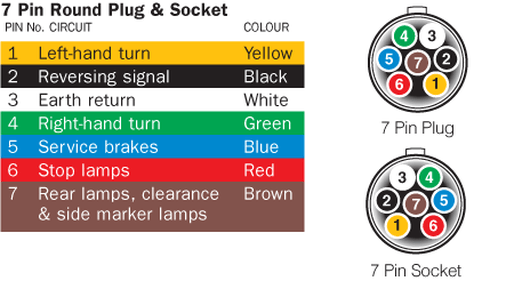

One important thing to remember when using a 4-pin trailer wiring diagram is to ensure that you have the correct adapter for your vehicle. Some vehicles may require a different wiring setup, so it is important to check your owner’s manual or consult with a professional to determine the correct wiring configuration for your specific vehicle. Using the wrong wiring setup can cause electrical issues and potentially be dangerous on the road.
Additionally, it is important to regularly check and maintain your trailer wiring to ensure that everything is working properly. Over time, wiring connections can become loose or corroded, leading to malfunctioning lights. By inspecting your wiring system before each trip, you can catch any issues early and make necessary repairs to keep your trailer lights functioning correctly.
Overall, understanding a 4-pin trailer wiring diagram is essential for anyone who tows a trailer. By following the diagram and ensuring you have the correct setup for your vehicle, you can safely and effectively connect your trailer lights and be ready for any towing situation. Remember to regularly check and maintain your wiring system to prevent any issues and ensure a safe journey on the road.
