When it comes to starting your Ford vehicle, the starter solenoid plays a crucial role in the ignition process. Understanding the wiring diagram for the Ford starter solenoid can help you troubleshoot any issues that may arise and ensure smooth starting of your vehicle.
The Ford starter solenoid is responsible for transmitting electrical current from the battery to the starter motor. It acts as a switch that activates the starter motor when the ignition key is turned. The solenoid is typically located near the battery or on the starter motor itself.

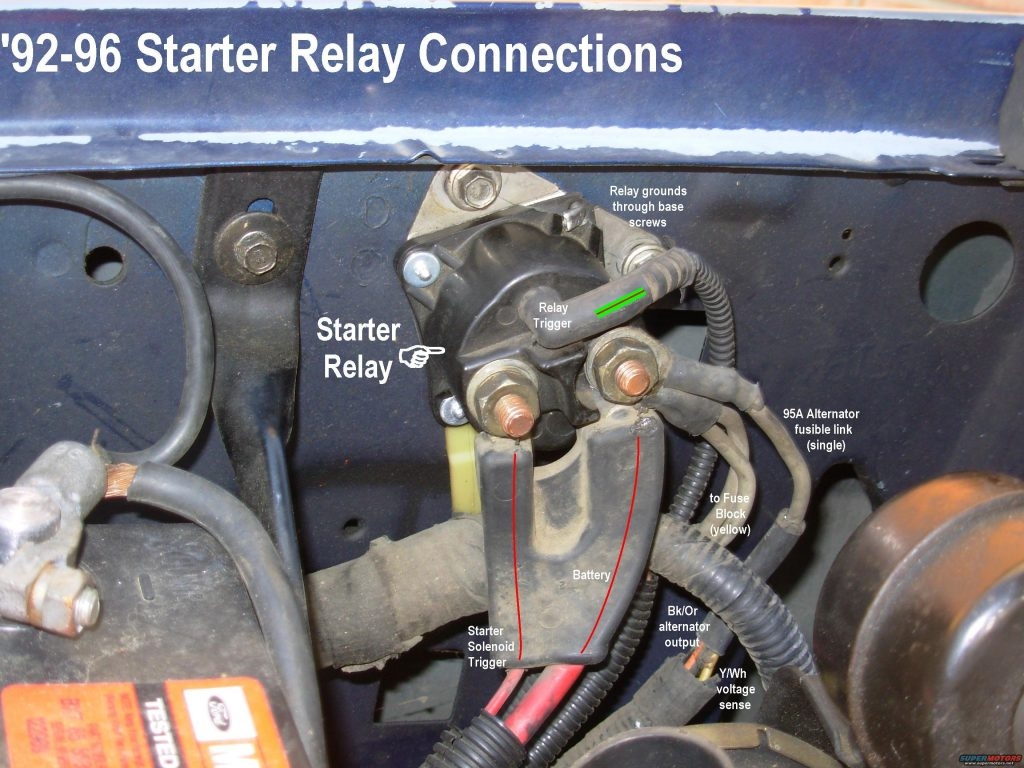

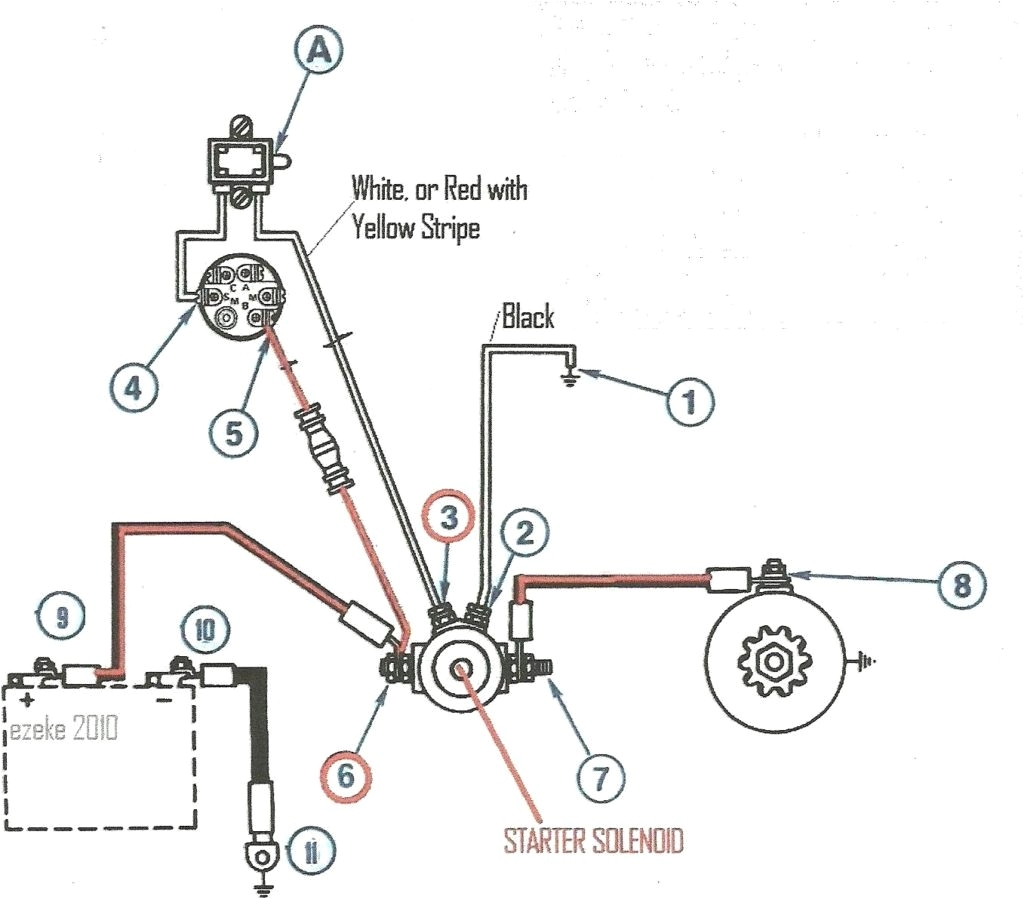

Ford Starter Solenoid Wiring Diagram Autocardesign (www.autocardesign.org)

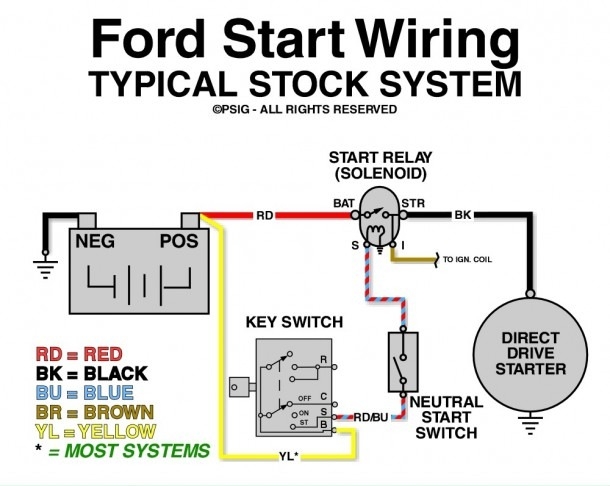

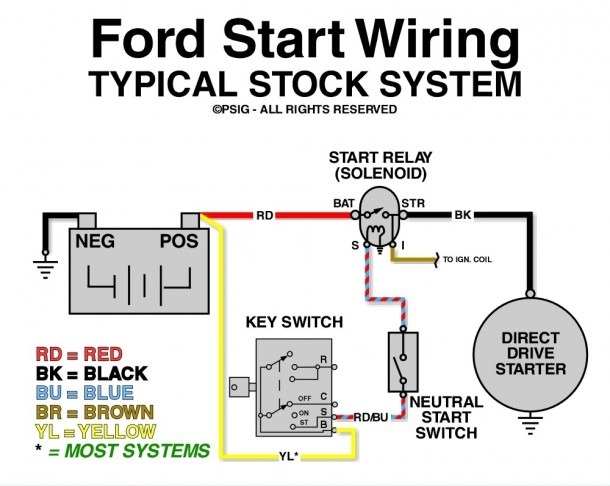

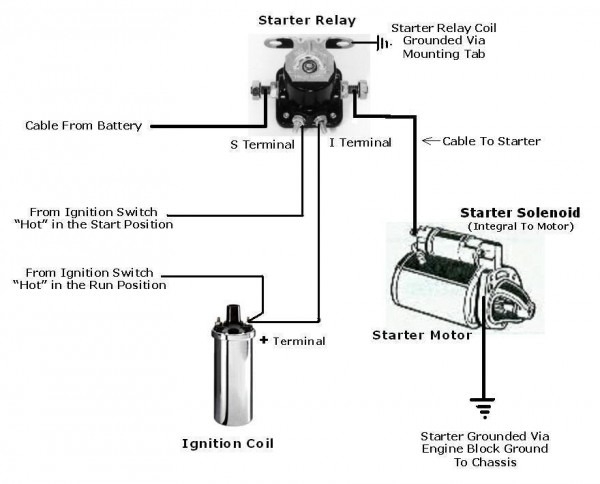

One common wiring diagram for the Ford starter solenoid includes a battery cable, a ground wire, and an ignition wire. The battery cable is connected to the positive terminal of the battery, while the ground wire is connected to the vehicle’s chassis. The ignition wire is connected to the ignition switch, which sends a signal to the solenoid to start the engine.
It is important to ensure that all connections are secure and free of corrosion to prevent any starting issues. If you are experiencing problems with your Ford starter solenoid, you can refer to the wiring diagram to check for any loose connections or damaged wires. It is also recommended to test the solenoid and starter motor for proper functionality.
In conclusion, understanding the wiring diagram for the Ford starter solenoid is essential for maintaining the proper function of your vehicle’s ignition system. By following the diagram and performing regular checks, you can ensure that your Ford starts smoothly every time.
